Low Noise Pull Lift Winches Wire Rope Single Drum Hoist Winch

Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
  • Type：Electric Winch
  • Speed：Fast
  • Carrying Capacity：Middle-Level
  • Tonnage：2t to 10t
  • Reel Number：1
  • Feature：Explosion-Proof

Base Info

  • Model NO.：JTPB-1.2*1.0
  • Certification：CE
  • Standard：National Standards
  • Model：Jtpb-1.2*1.0
  • Drum Diameter：1200mm
  • Drum Width：1000mm
  • Max Wire Rope Tension：30kn
  • Wire Rope Max Length First Layer：170m
  • The Second Layer：344m
  • The Third Layer：516m
  • Wire Rope Max Dia.：20mm
  • Wire Rope Breaking Pull Sum：275
  • Average Lifting Speed：1.88-2.4m,S
  • Electric Motor Rotating Speed：967r,Min
  • Electric Motor Power：55-75kw
  • Transport Package：Wooden Case or Carton Case
  • Specification：4658*2680*1450mm
  • Trademark：China Coal
  • Origin：Shandong, China
  • Production Capacity：1000 Sets Per Month

Description

Electric motorDimension
mmWeight
kg Diameter mmWidth
mm The first layer The second layerThe third layerMax Dia.  mmBreaking pull sum Rotating speed r/minPower KW  JTPB-1.2*1.01200100030170344516202751.88-2.496755-754658*2680*145010421JTPB-1.2*1.21200120030203412620202751.57-2.496755-754458*2680*14509940JTPB-1.6*1.21600120045215433655264051.56-497595-1555224*2800*192515195JTPB-1.6*1.51600150045269542819264051.56-497595-1555524*2800*192515678JKB-2 X1.8P20001800623326701013325582.57352006410*3234*260025560JKB-2 X1.5P2000150062277557842325582.57352006160*3234*260024780JKB-2.5X2P250020008337375511434074737403156700*3610*260036998JKB-2.5X2.3P250023008342986713124074737403207000*3610*260039620

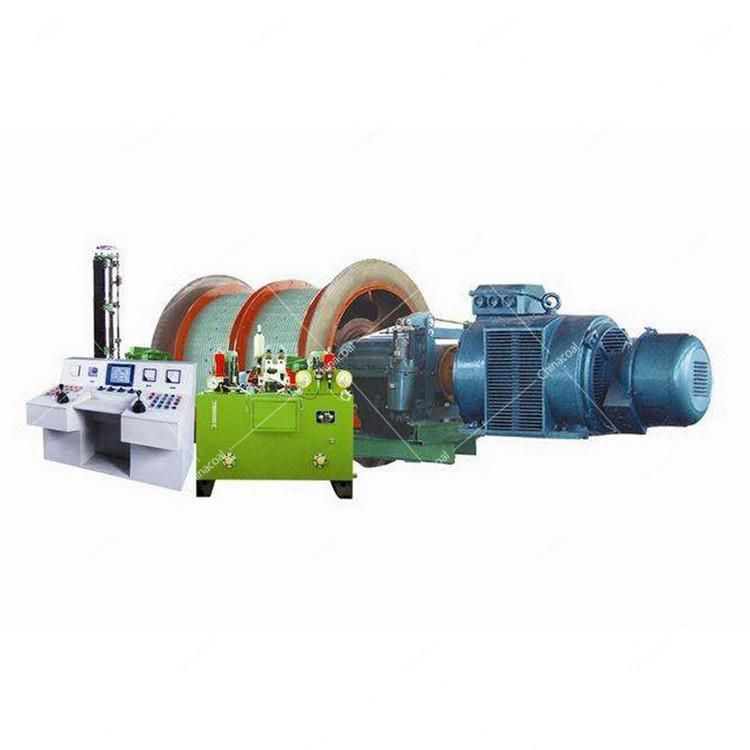

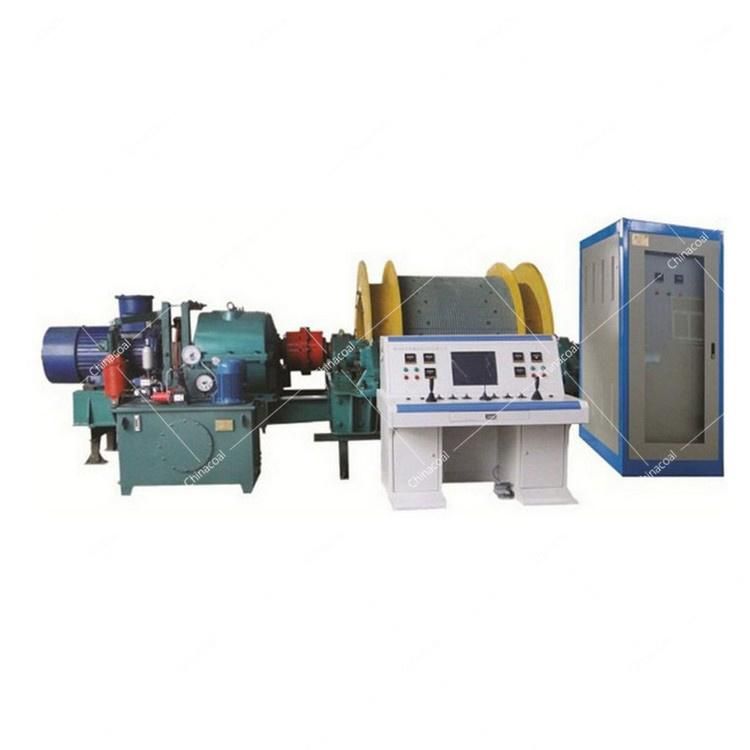

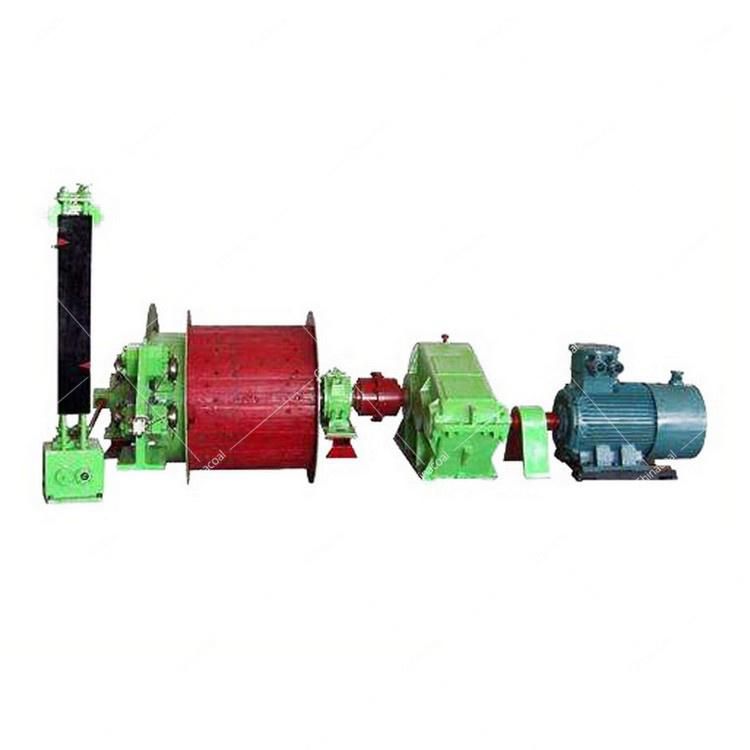

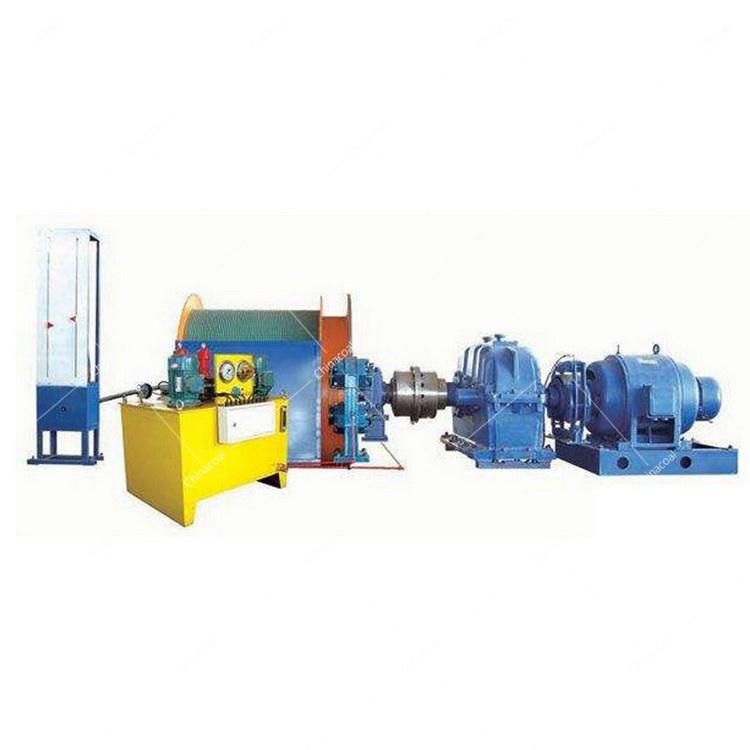

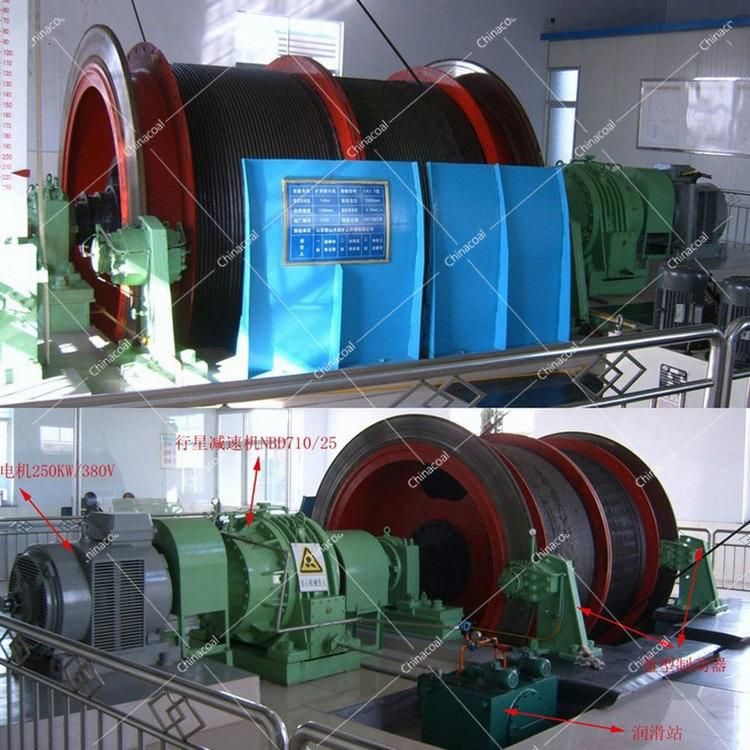

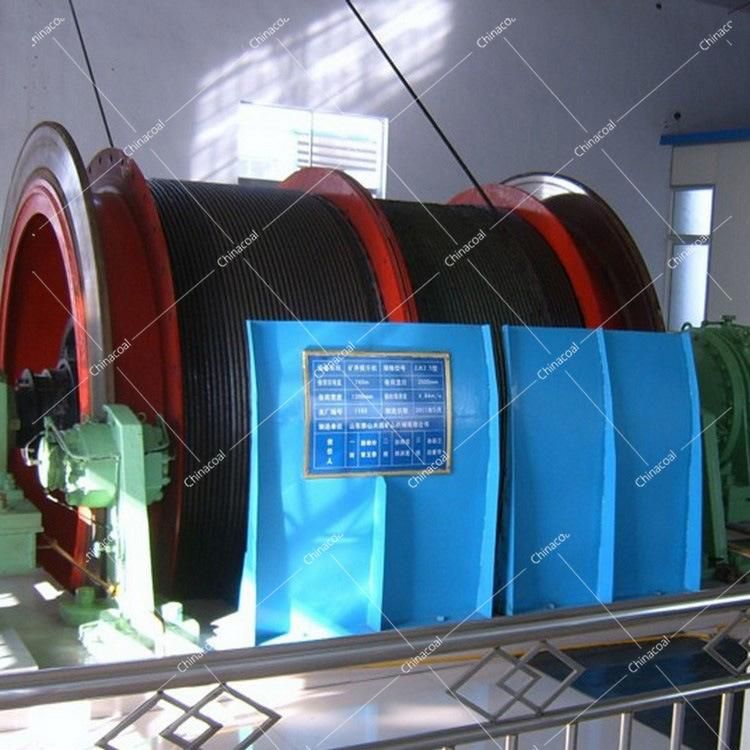

Photos Of Low Noise Pull Lift Winches Wire Rope Single Drum Hoist Winch

Low Noise Pull Lift Winches Wire Rope Single Drum Hoist WinchLow Noise Pull Lift Winches Wire Rope Single Drum Hoist WinchLow Noise Pull Lift Winches Wire Rope Single Drum Hoist WinchLow Noise Pull Lift Winches Wire Rope Single Drum Hoist WinchLow Noise Pull Lift Winches Wire Rope Single Drum Hoist WinchLow Noise Pull Lift Winches Wire Rope Single Drum Hoist Winch
