• Model NO.：PH05
• Running Mode：Moving
• Feature：Antiseptic
• Certification：CE, ISO 9001
• Standard：National Standards
• Transport Package：in Plywood Case
• Specification：5mts
• Trademark：hyphen
• Origin：China
• HS Code：8704
• Production Capacity：5000PCS

Basic Info.

Model NO. PH05 Running Mode Moving Feature Antiseptic Certification CE, ISO 9001 Standard National Standards Transport Package in Plywood Case Specification 5mts Trademark hyphen Origin China HS Code 8704 Production Capacity 5000PCS

Product Description

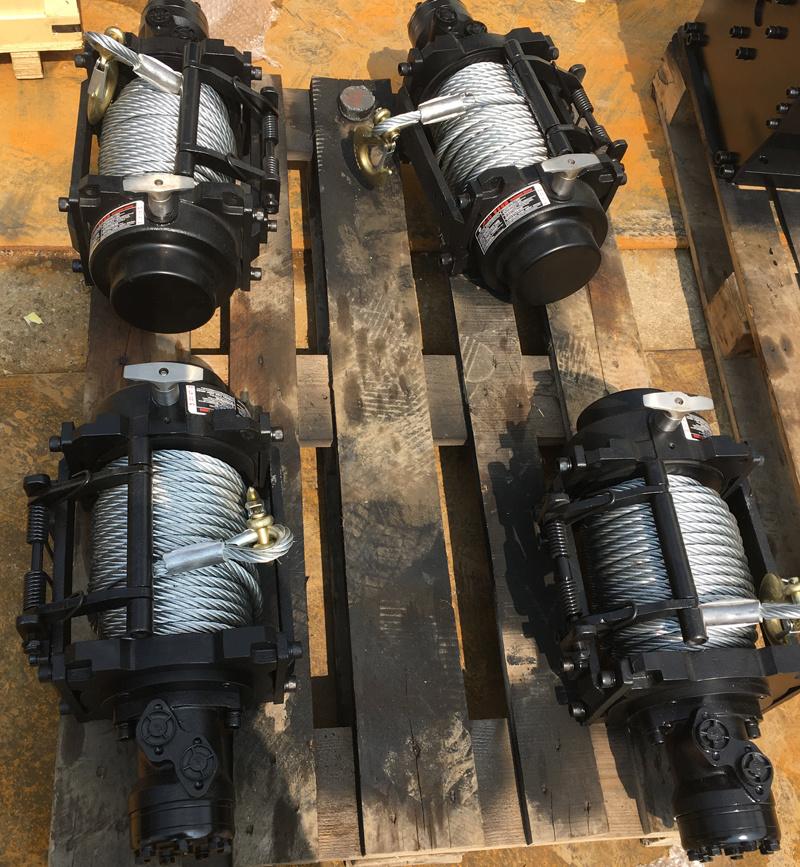

Hydraulic winch including  the orbital motors, planetary gear reducer and brakes and other components.Using rebar steel frame connections, configure the shuttle valve,balance valve and other security control systems,compact structure, small volume .Applies to ships, piers,construction machinery and other lifting and pulling devices.

Reel clockwise to rise up
2.Winch brake using the multi-disc brake
3.Winches with planetary gear reducer, run steady, compact and reasonable.
4.Internally lubricated with grease lubrication
5.Maximum return oil back pressure 5bar
6.To ensure safety,keep at least 4 laps rope on the roll wrapped around 7.Please use above8.8 bolts(M16above) fix winch
8.we can supply the pull range have 1MT,1.5MT,2MT,2.5MTand 3MT
