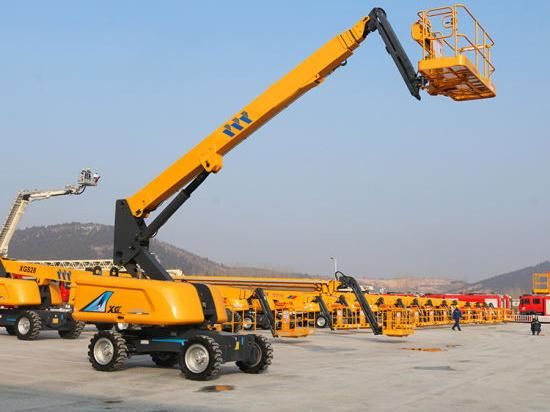

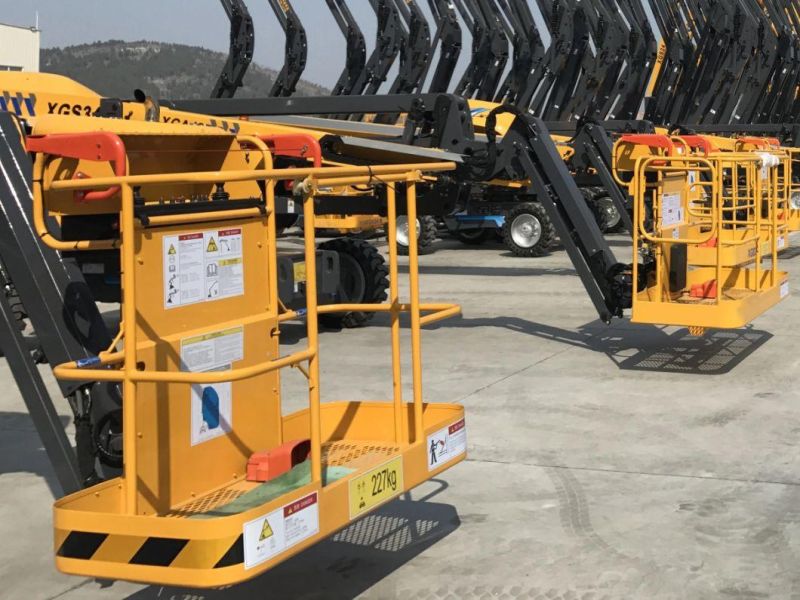

China Xuzhou Xgs22 22m Boom Lift Telescopic Aerial Work Platform
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service：Oversea
- Warranty：1 Year
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Telescoping Lift
- Carrying Capacity：Middle-Level
- Moves：Moving
Base Info
- Model NO.：XGS22
- Driven Type：Hydraulic
- Running Mode：Moving
- Feature：Explosion-Proof, Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Max. Operation Height：22m
- Wheelbase：2500mm
- Max. Platform Height：20m
- Max. Operation Extend：16.6m
- Max. Load Capacity：300
- Max. Tail Swing：1270mm
- Platform Size：2400*900mm
- Whole Machine Weight：12300kg
- Max. Gradeability：45%
- Rated Engine Power：36.8,(2700)Kw,(R,Min)
- Transport Package：Container
- Specification：10040*2490*2460mm
- Trademark：Maxizm
- Origin：China
- HS Code：8428909090
- Production Capacity：1000
Description
Overview
Product DescriptionParameter A whole machine length mm 10040 B whole machine width mm 2490 C whole machine height mm 2460 D wheelbase mm 2500 Max. Operation height m 22 Max. Platform height m 20 Max. Operation extend m 16.6 Max. Load capacity kg 300 (unrestricted)/460 (restricted) Luffing range of boom ° -3~+73 Rotation angle of turntable ° 360 Max. Tail swing mm 1270 Platform size mm 2400×900 Platform rotation angle ° 160 Whole machine weight kg 12300 Max. traveling speed km/h 6.3 Min. Turning radius m 6 Min. Ground clearance mm 230 Max. gradeability % 45 Tire specification - Solid tire 36×14-20 Or Foam Tire 355/55D625 Engine model - Yuchai 4D2404 Rated engine power kW/(r/min) 36.8/(2700)
Unit
