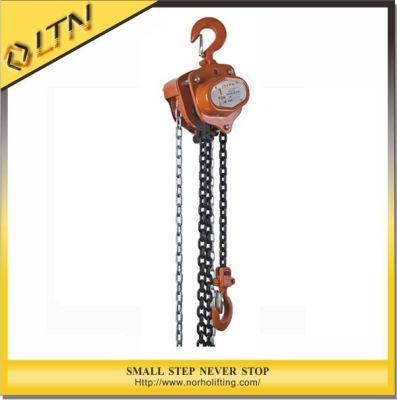

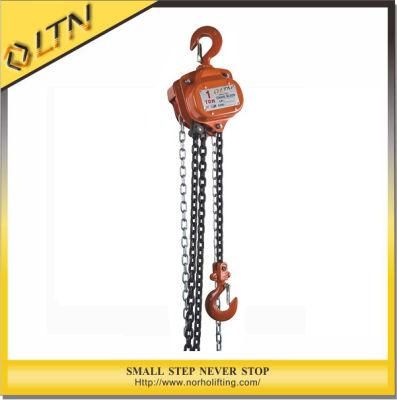

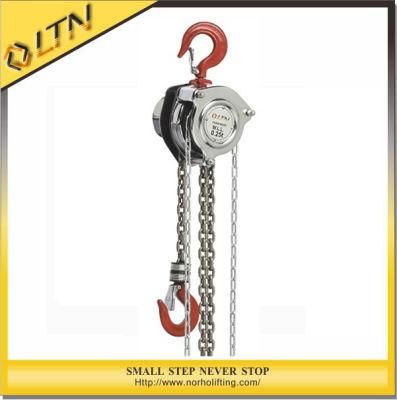

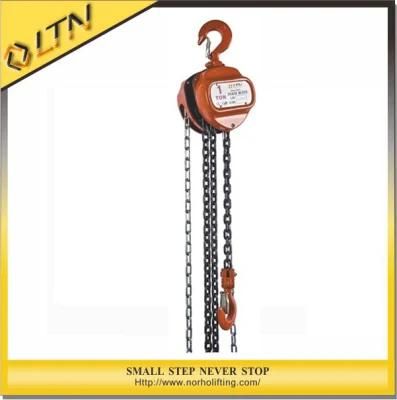

High Quality Hoist Lift (CH-WD)

Hangzhou Nuohao Industry Co., Ltd.
  • Application：Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
  • Type：Chain Hoist
  • Sling Type：Chain
  • Lift Speed：<2m,min
  • Maximum Lifting Height：>20m
  • Chain Falls：1

Base Info

  • Model NO.：CH-WD
  • Certification：CE, ISO9001:2000, GS TUV
  • Condition：New
  • Color：Orange
  • Capacity：0.5ton to 10ton
  • Lifting Height：3m as Standard, Others Also Available
  • Chain：G80 Load Chain and Galv. Hand Chain
  • Transport Package：Carton Packing or Wooden Pallet Packing
  • Specification：CE GS and TUV
  • Trademark：LTN Or OEM
  • Origin：Hangzhou China
  • HS Code：8425190000
  • Production Capacity：10000sets,Month

Description

Model   CH-WD0.5 CH-WD1 CH-WD1.5 CH-WD2 CH-WD3 CH-WD5 CH-WD10
Capacity(Ton)   0.5 1 1.5 2 3 5 10
Standard lift(M)   2.5 2.5 2.5 2.5 3 3 3
Running Test Load(T)   0.75 1.5 2.25 3 4.5 7.5 15
No.of falls of Load Chain   1 1 1 1 1 2 4
Load Chain Diamter(MM)   5 6 7.1 8 10 9 9
Diamensions(MM) a 132 151 173 175 176 189 189
b 148 172 196 210 230 280 463
c 23 27 33 35 39 45 54
d 35 40 45 50 55 65 75
  Hmin 345 376 442 470 565 688 765
Net Weight(Kg)   11 12.5 17.8 19.5 32 41.3 78.8
