Foshan Heavy Loading Adjustable Pedestal Jacks
Foshan Mexytech Co., Ltd.- Type：Floor Jack
- Structure：Screw Jack
- Capacity (Load)：1500-2000kg,Set
- Max Height：40mm--1200mm
- Environmental Conditions：-30 ºC ~130 ºC
- Content：Head , Extender , Screw Ring,Base
Base Info
- Model NO.：MB-PFD
- Transport Package：Strong Carton
- Trademark：MexyBase
- Origin：China
- Production Capacity：1200 Set,Sets Per Day
Description
CodeHeight(mm) Working loading(KG) Max loading(KG) Entire Half Quarter Entire Half Quarter MT-DPA0 92-149 2235 1840 935 4537 3463 1988 MT-DPA1 188-299 1850 1500 825 3728 3105 1800 MT-DPA2 274-453 1740 1475 790 3660 2963 1687 MT-DPA3 360-607 1675 1405 785 3609 2816 1583 MT-DPA4 446-763 1600 1380 760 3532 2777 1580 MT-DPA5 532-919 1520 1225 750 3463 2705 1566 MT-DPA6 618-1075 1465 1110 725 3308 2643 1534 MT-DPA7 704-1231 1390 1055 700 3300 2598 1533 MT-DPA8 790-1387 1310 985 680 3107 2537 1503
2.Company Information
MexyTech Co., Ltd have been in wpc business for more than 8 years.
Through 8-years development and research, We have been one company combine R&D, design, production, recycle, marketing in one.
Nowadays, MexyTech have 60 production lines and R&D testing lab and our products are popular to many countries.
We created Mexybase to meet customer's requirments and it's no doubt that MexyBase is one of the branch of MexyTech.
Since we have 9 years experence in wpc business experience, we did some improvements on the traditional pedestal which make the pedestal more suitable to construction work.
If you are interest in our brand , you can have a look in our homepage mexytech.en.made-in-china.com.

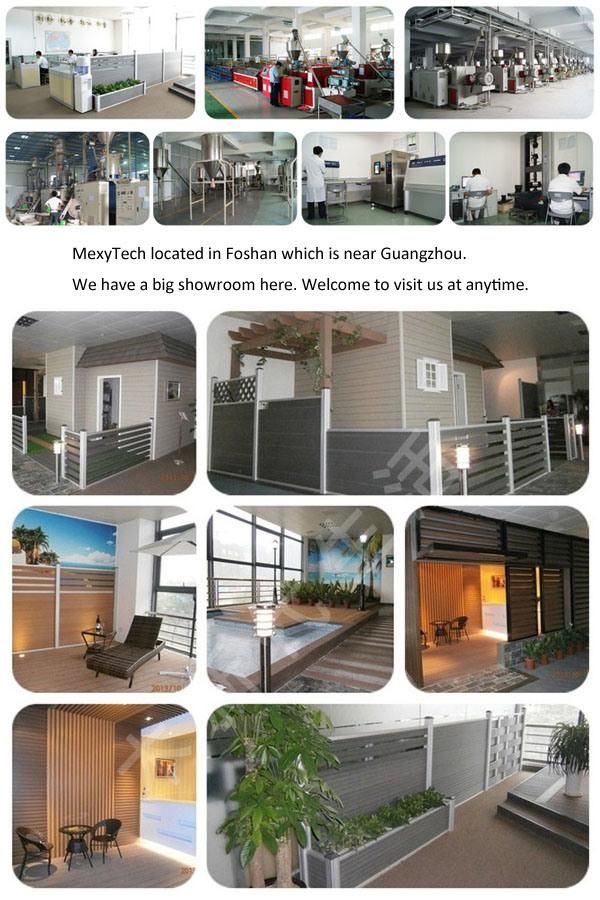

Following is the drawing of our factory in Guangzhou and our recent projects.
3.FAQ :
1. How many pcs of pedestal do I need for each SQM?
For tiles:
For decking boards:
Each SQM needs 4-5 pcs of pedestal for standard installation.
2.Are we factory?
We have 5000 sqm factory located in Nansha distract, Guangzhou city, Guangdong province.
In addition,We expanded our factory to 7000 sqm to accommodate the new pedestal producing line last years.
If you can come , that will be welcome.
3.How long is the lead-time for one 20' container
Generally, it will take us 2 weeks to produce.
4.Is sample free?
Free sample can be sent and buyer afford the express charge first. Of couser, it is no doubt the charge will be returned in the first order
2.Company Information
MexyTech Co., Ltd have been in wpc business for more than 8 years.
Through 8-years development and research, We have been one company combine R&D, design, production, recycle, marketing in one.
Nowadays, MexyTech have 60 production lines and R&D testing lab and our products are popular to many countries.
We created Mexybase to meet customer's requirments and it's no doubt that MexyBase is one of the branch of MexyTech.
Since we have 9 years experence in wpc business experience, we did some improvements on the traditional pedestal which make the pedestal more suitable to construction work.
If you are interest in our brand , you can have a look in our homepage mexytech.en.made-in-china.com.
Following is the drawing of our factory in Guangzhou and our recent projects.
3.FAQ :
1. How many pcs of pedestal do I need for each SQM?
For tiles:
| Tile Size | PCS/SQM |
| 600 x 600 mm | 3 PCS |
| 500 x 500 mm | 4 .2 PCS |
| 400 x 400 mm | 6.5 PCS |
For decking boards:
Each SQM needs 4-5 pcs of pedestal for standard installation.
2.Are we factory?
We have 5000 sqm factory located in Nansha distract, Guangzhou city, Guangdong province.
In addition,We expanded our factory to 7000 sqm to accommodate the new pedestal producing line last years.
If you can come , that will be welcome.
3.How long is the lead-time for one 20' container
Generally, it will take us 2 weeks to produce.
4.Is sample free?
Free sample can be sent and buyer afford the express charge first. Of couser, it is no doubt the charge will be returned in the first order
