• Model NO.：GL
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Color：Green, Red, Blue, Yellow, Customized
• Transport Package：Timer Box
• Specification：10CBM
• Trademark：PLK
• Origin：China
• HS Code：8428909090
• Production Capacity：50000 Set Per Year

Basic Info.

Model NO. GL Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Color Green, Red, Blue, Yellow, Customized Transport Package Timer Box Specification 10CBM Trademark PLK Origin China HS Code 8428909090 Production Capacity 50000 Set Per Year

Product Description

300kg 400kg Glass Metal Vacuum Lifter

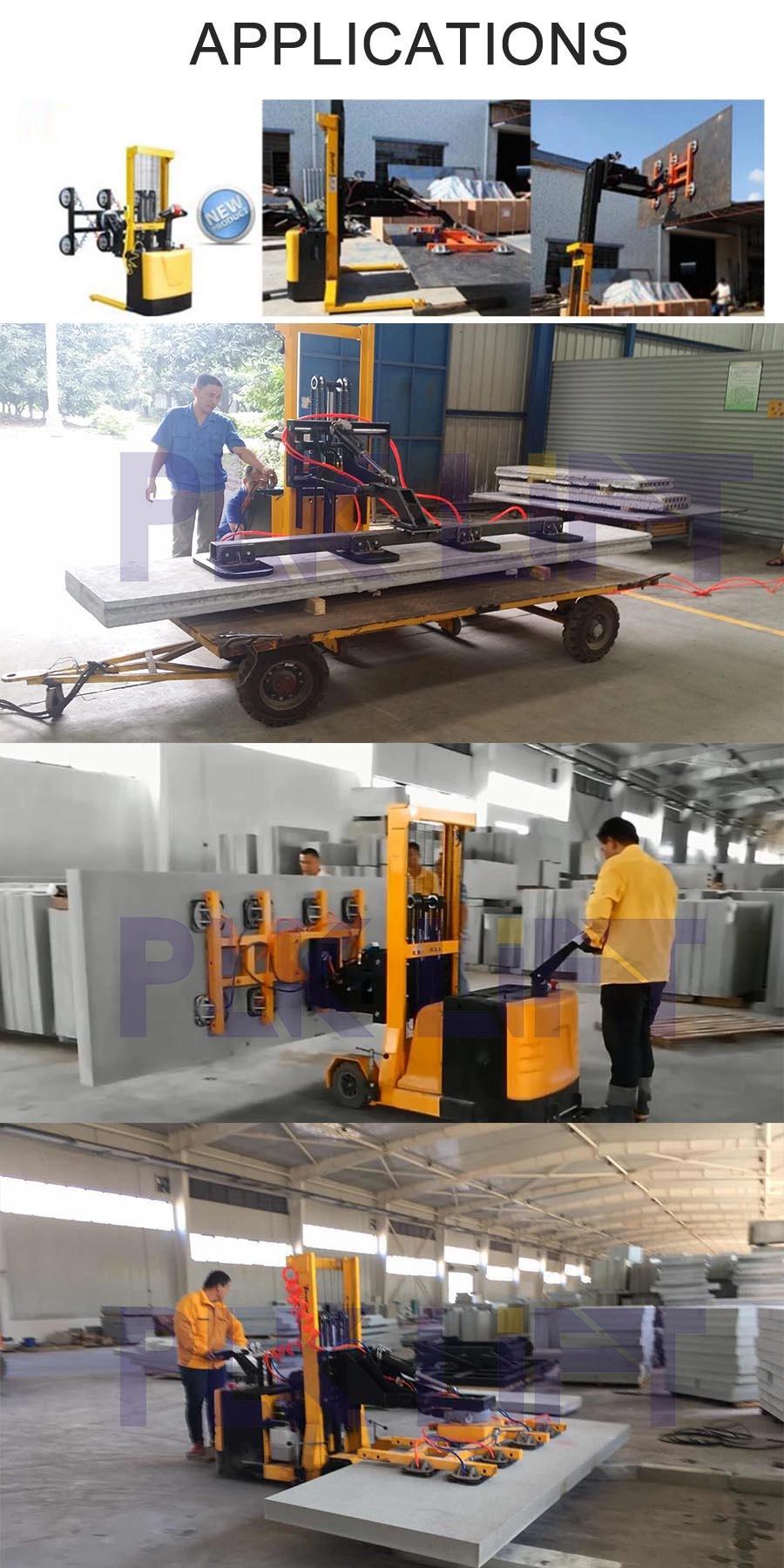

PLK LIFT - GL-HD series vacuum lifter robot is specially designed for handling different kinds of heavy plate, board and glass, especially when you need to pick up the board and move to the cutting machine. It is very good tool for moving various kinds of material to the CNC machines for further processing. Easily handle lifting and moving with vacuum suction caps and powerful drive system.

Model	GL-HD-4015(4x30)	GL-HD-4015(6x25)	GL-HD-4015(6x30)	GL-HD-4015(8x25)
Max. Load Capacity	400kgs	400kgs	400kgs	400kgs
Safe Load Capacity	200kgs	200kgs	200kgs	200kgs
Lifting Height	1500mm	1500mm	1500mm	1500mm
QTY of Caps (customized)	4pcs	6pcs	6pcs	8pcs
Cap Diameter	Ø300mm	Ø250mm	Ø300mm	Ø250mm
Plate Size (customized)	1220x1830mm	1220x1830mm	1220x1830mm	1220x1830mm
Load Center	650mm	650mm	650mm	650mm
Drive Motor	24V/500W	24V/500W	24V/500W	24V/500W
Hydraulic Motor	24V/2000W	24V/2000W	24V/2000W	24V/2000W
Battery	2x12V/70Ah	2x12V/70Ah	2x12V/70Ah	2x12V/70Ah
Charger	24V/10A	24V/10A	24V/10A	24V/10A

Model	GL-HD-6015(4x30)	GL-HD-6015(6x25)	GL-HD-6015(6x30)	GL-HD-6015(8x30)
Max. Load Capacity	600kgs	600kgs	600kgs	600kgs
Safe Load Capacity	300kgs	300kgs	300kgs	300kgs
Lifting Height	1500mm	1500mm	1500mm	1500mm
QTY of Caps (customized)	4pcs	6pcs	6pcs	8pcs
Cap Diameter	Ø300mm	Ø250mm	Ø300mm	Ø300mm
Plate Size (customized)	2440x1830mm	2440x1830mm	2440x1830mm	2440x1830mm
Load Center	950mm	950mm	950mm	950mm
Drive Motor	24V/700W	24V/700W	24V/700W	24V/700W
Hydraulic Motor	24V/2000W	24V/2000W	24V/2000W	24V/2000W
Battery	2x12V/100Ah	2x12V/100Ah	2x12V/100Ah	2x12V/100Ah
Charger	24V/15A	24V/15A	24V/15A	24V/15A

Model	GL-HD-8015(6)	GL-HD-8025(8)	GL-HD-6015(4x30)	GL-HD-4015(4x30)
Max. Load Capacity	800kgs	800kgs	600kgs	400kgs
Safe Load Capacity	400kgs	400kgs	300kgs	200kgs
Lifting Height	1500mm	2500mm	1500mm	1500mm
QTY of Caps	6pcs	8pcs	4pcs	4pcs
Cap Diameter	Ø300mm	Ø300mm	Ø300mm	Ø300mm
Plate Size (or customized)	3660x2440mm	3660x2440mm	2440x1830mm	1220x1830mm
Drive Motor	24V/900W	24V/900W	24V/700W	24V/500W
Hydraulic Motor	24V/2000W	24V/2000W	24V/2000W	24V/2000W
Battery	2x12V/160Ah	2x12V/160Ah	2x12V/100Ah	2x12V/70Ah
Charger	24V/20A	24V/20A	24V/15A	24V/10A

Advantages
1. Integrated control system secures quick and automatic positioning vertically and horizontally.
2. DC24V reliable actuators for lifting, extension and tipping. efficient and precise. Self propelling, various circuit vacuum suction.
3. Attractive price, staff saving, strong improvement of working environment.
4. Vacuum lifter are dealt with shot blasting and stoving varnish, high anti-corrosion function.
5. High quality pump station make the vacuum lifter lifts and falls very stably.
6. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
7. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
8. Brief structure make it much easier to operate and maintain.

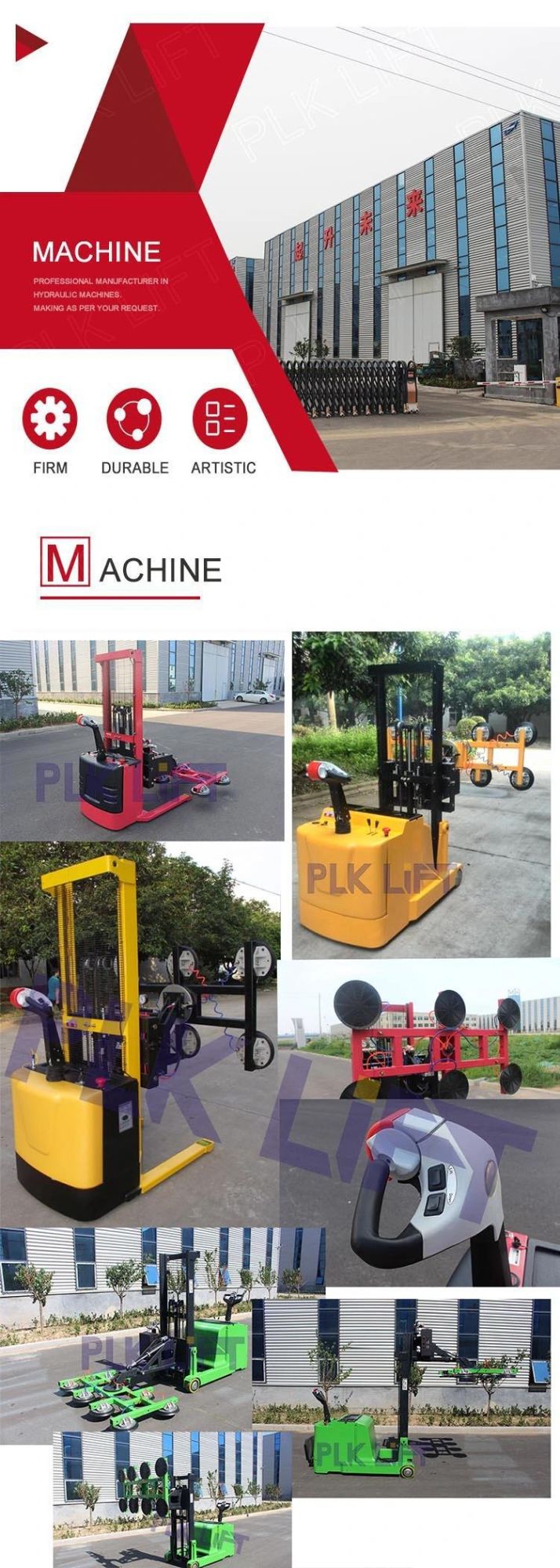

Machines Display:




 All our products are CE certificated, good quality and competitive price. Welcome to send the inquiry to us if you are interested in any of them, and we will reply you ASAP.
