Electric Slipway Winch for Ship/Boat/Vessel Launching System
Pingyang Construction Hoisting Machinery Co.- Type：Electric Winch
- Driven Type：AC
- Speed：Slow
- Carrying Capacity：Special Weight Level
- Tonnage：40ton
- Running Mode：Stationary
Base Info

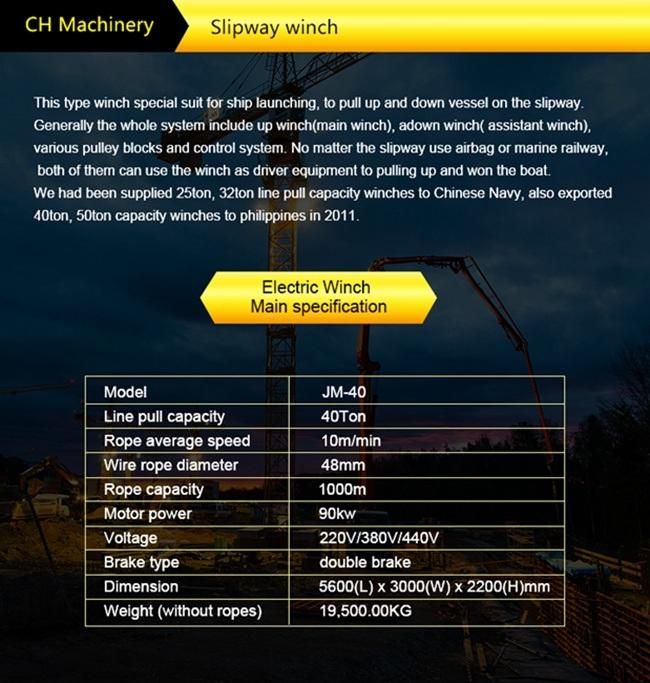

- Model NO.：JM40
- Feature：Drum Can Free
- Certification：ISO 9001
- Standard：Nonstandard
- Rope Speed：10m,Min
- Line Pull Capacity：40ton
- Rope Capacity：800m
- Brake：Double Brake
- Transport Package：Naked
- Specification：JM40
- Trademark：CH
- Origin：Wenzhou, China
- HS Code：8425319000
- Production Capacity：1 Set Per Month
Description
Basic Info.
Model NO. JM40 Feature Drum Can Free Certification ISO 9001 Standard Nonstandard Rope Speed 10m/Min Line Pull Capacity 40ton Rope Capacity 800m Brake Double Brake Transport Package Naked Specification JM40 Trademark CH Origin Wenzhou, China HS Code 8425319000 Production Capacity 1 Set Per MonthProduct Description
Electric winch for pulling Boat from Sea WaterFeature:
1. Double brake
2. Mechanism lock for parking
3. With clutch the drum can free rotate when down to sea
4. Large rope capacity to 1000m

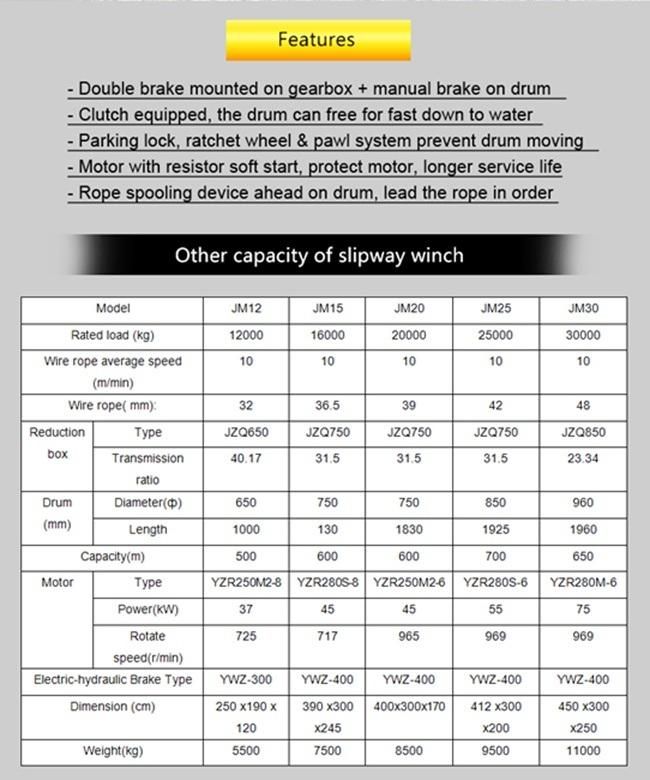

5. We can make capacity 20T, 30T, 40T, 50T slipway winch
6. Waterproof control system
7. Easy transport, don't need disassemble
we can supply various slipway winch for pulling ship up from water. The ship deadweight up to 2000ton.
The winch capacity from 1ton to 50ton.
Double brake, rope spooling device, clutch, hand brake, parking brake can be set
The drum can be free for fast lauching down to sea.
