• Model NO.：JD series
• Running Mode：Moving
• Feature：Explosion-Proof
• Certification：CE
• Standard：National Standards
• Model：Jd-0.5
• Traction Force Kn：7.5
• Average Speed M/S：0.71
• Dia of Wire Rope mm：9.3
• Drum Size mm：200*300
• Rope Capacity M：250
• Total Reduction Ratio：34.81
• Motor Type：Yb132s-4-B5
• Motor Power Kw：5.5
• Motor Voltage V：380,660
• Weight Kg：400
• Transport Package：Wooden Case or Carton Case
• Specification：1085*730 *697 mm
• Trademark：China Coal
• Origin：Jining City, Shandong Province, China
• Production Capacity：1000 Sets Per Month

Basic Info.

Model NO. JD series Running Mode Moving Feature Explosion-Proof Certification CE Standard National Standards Model Jd-0.5 Traction Force Kn 7.5 Average Speed M/S 0.71 Dia of Wire Rope mm 9.3 Drum Size mm 200*300 Rope Capacity M 250 Total Reduction Ratio 34.81 Motor Type Yb132s-4-B5 Motor Power Kw 5.5 Motor Voltage V 380/660 Weight Kg 400 Transport Package Wooden Case or Carton Case Specification 1085*730 *697 mm Trademark China Coal Origin Jining City, Shandong Province, China Production Capacity 1000 Sets Per Month

Product Description



Introduction of Jd Series Mining High Speed Explosion-Proof Dispatching Winch Prop Pulling Winch

JD series explosion-proof dispatching winch is used for dispatching trolleys, tramcar in underground parking lots, middle roadways, mining transportation lanes in mines, dragging or carrying heavy loads. We can design and manufacture different types of dispatching winch with maximum pulling force 7.5-40KN.

Parameter of Jd Series Mining High Speed Explosion-Proof Dispatching Winch Prop Pulling Winch



Model	JD-0.5	JD-0.75	JD-1	JD-1.6	JD-4
Traction Force KN	7.5	7.5	10	17.6	30
Average Speed m/s	0.71	0.71	0.78	1.4	1.44
Dia of Wire Rope mm	9.3	9.3	12.5	15	20
Drum Size mm	200*300	200*300	224*304	310*400	620*580
Rope Capacity m	250	250	400	440	480
Total Reduction Ratio	34.81	34.81	41	32.5	31.8
Motor Type	YB132S-4-B5	YBJ-11.4	YBJ45-4	YBJ40-4	YB2-132S-4
Motor Power KW	5.5	11.4	25	40	5.5
Motor Rev Rev/min	1440	1460	1470	1470	1440
Motor Voltage V	380/660	380/660V	380/660V	380/660V	380/660V
Di mention mm  L*W*H	1085*730 *697	1085*730 *697	1073*766 *727	1448*1255 *1260	1900*2350 *1370
Weight KG	400	400	578	1370	2800

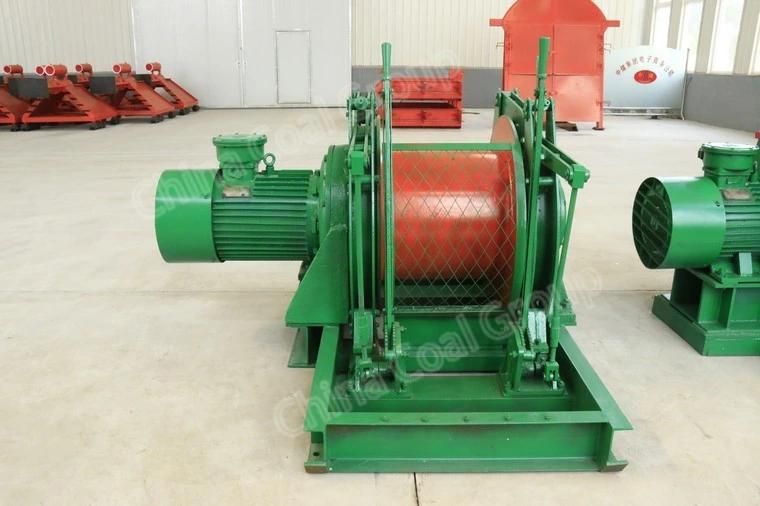

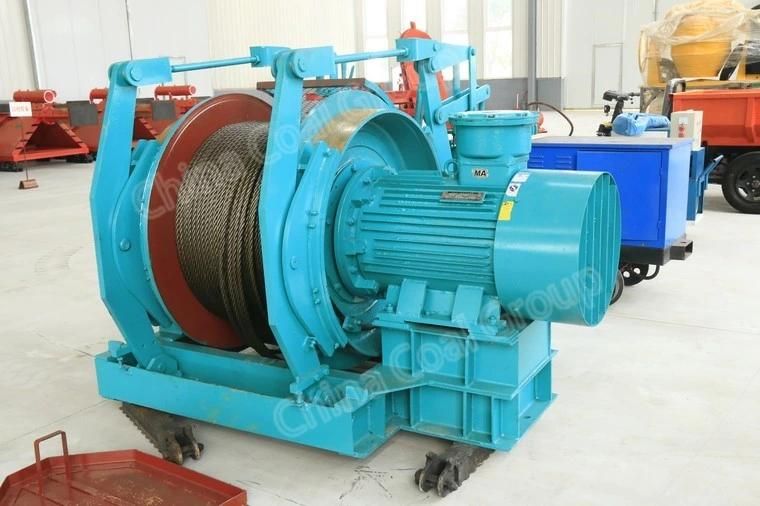

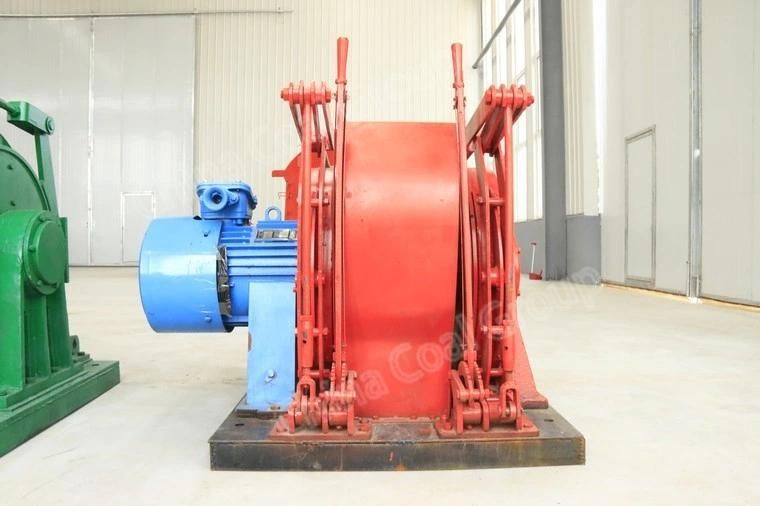

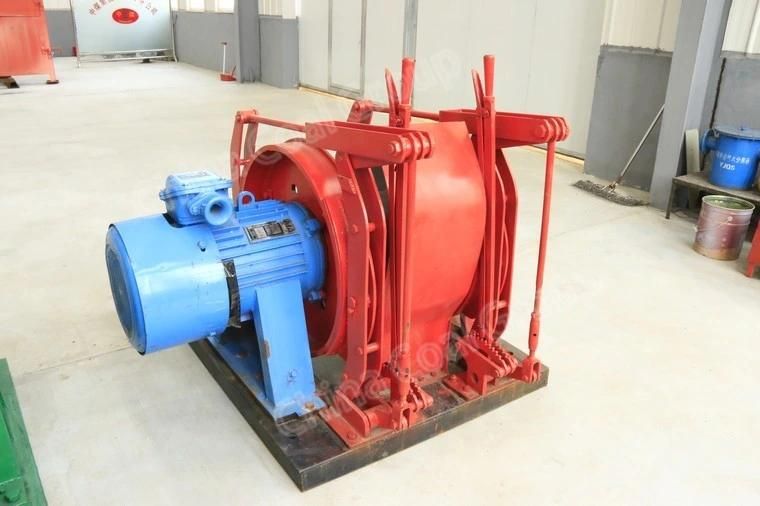

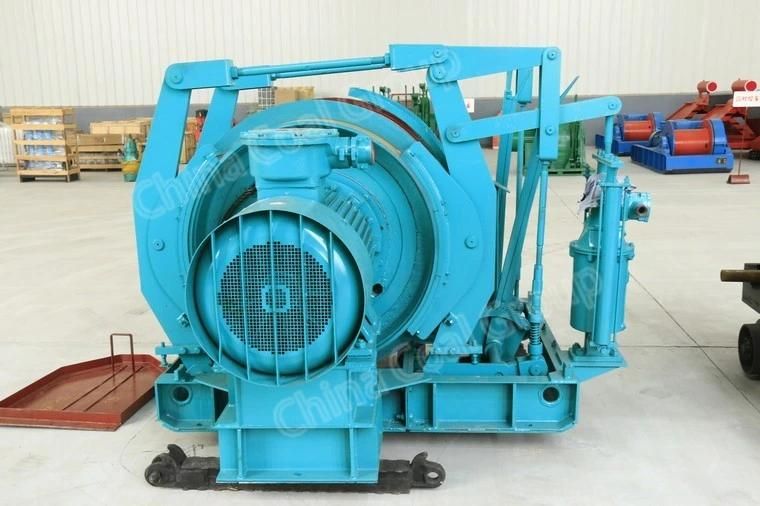

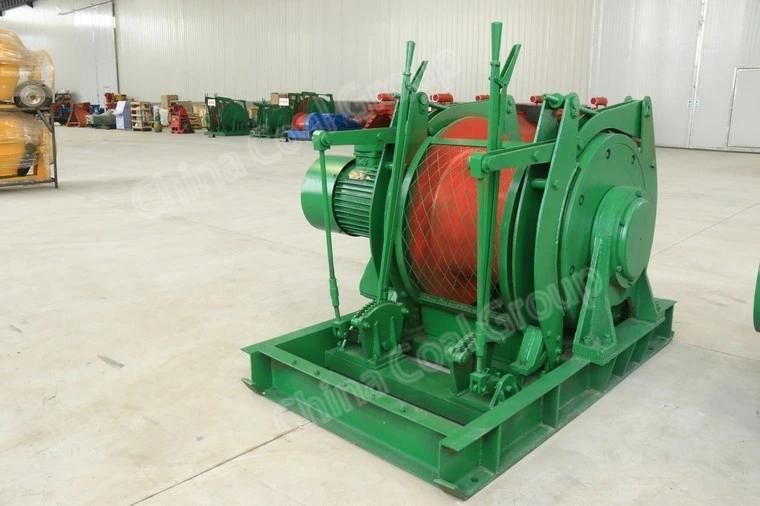

Pictures of Jd Series Mining High Speed Explosion-Proof Dispatching Winch Prop Pulling Winch
