Glass Handling Equipment vacuum Lifter Suppliers
Jinan PLK Machinery Co., Ltd.- Color：Green
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Telescoping Lift
- Carrying Capacity：Weight Level
- Moves：Self-propelled
- Driven Type：DC
Base Info
- Model NO.：GL-LD
- Running Mode：Moving
- Feature：Explosion-Proof, Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Transport Package：Timer Box
- Specification：6CBM
- Trademark：PLK
- Origin：China
- HS Code：8428909090
- Production Capacity：50000 Set Per Year
Description
Basic Info.
Model NO. GL-LD Running Mode Moving Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Transport Package Timer Box Specification 6CBM Trademark PLK Origin China HS Code 8428909090 Production Capacity 50000 Set Per YearProduct Description
Electric Power Automatic Glass Vacuum Lift
| Model Type | GL-LD-350 | GL-LD-600 |
| Loading Capacity | 350kg (retract)/175kg(extend) | 600kg (retract)/300kg(extend) |
| Lifting Height | 3500mm | 3500mm |
| Battery | 2x12V/100AH | 2x12V/120A |
| Controller | VST224-15 | CP2207A-5102 |
| Drive motor | 24V/600W | 24V/900W |
| Hydraulic power | 24V/2000W/5L | 24V/2000W/5L |
| Cap Diameter | Ø250mm/300mm | Ø250mm/300mm |
Introduction:

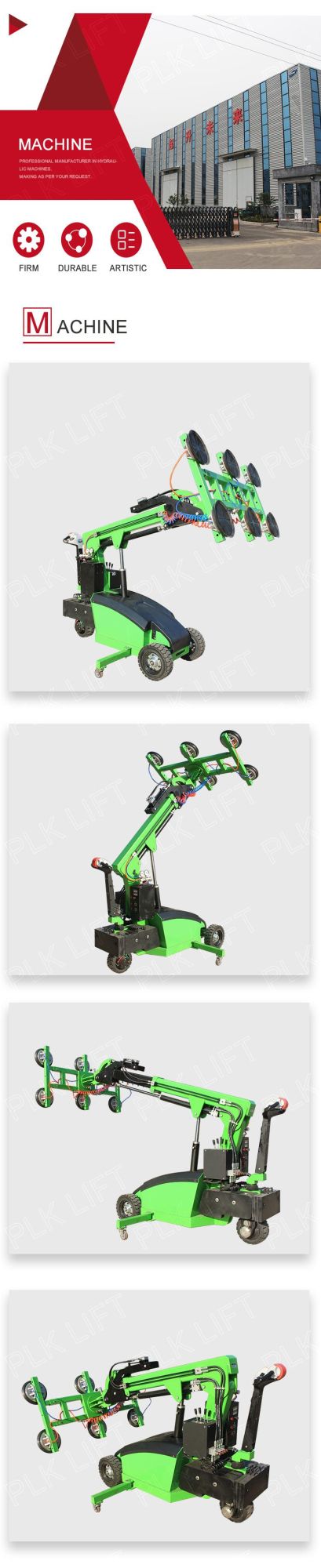

GL-LD series Vacuum Lifter: small size, easy to transport.
Special design for handling difference kind of heavy plate, such as steel, glass, granite, marble and so forth, with vacuum suction caps.
1. Lifting capacity 350kg/600kg (175kg/300kg when lifting arm is fully extended)
2. Manual 360degree rotation
3. Electric lift up to 3.5M
4. Weight of machine 660kg/1000kg
Advantages
1. Integrated control system secures quick and automatic positioning vertically and horizontally by a single push on a button.
2. DC24V reliable actuators for lifting, extension and tipping. efficient and precise. Self propelling, various circuit vacuum suction.
3. Attractive price, staff saving, strong improvement of working environment.
4. Vacuum lifter are dealt with shot blasting and stoving varnish, high anti-corrosion function.
5. High quality pump station make the vacuum lifter lifts and falls very stably.
6. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
7. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
8. Brief structure make it much easier to operate and maintain.
9. Up to American standard ANSI/ASME and Europe standard EN1570.
