• Model NO.：HS-VT
• Certification：CE, ISO9001:2000
• Condition：New
• Color：Yellow
• Material：High Quality Steel
• Loading Port：Shanghai or Tianjin Port
• Hook：Forged
• Origion：China
• Usage：Construction Hoist
• Brand：Hugo
• Delivery Time：10 Days
• Payment Term：L,C T,T
• Lifting Height：3m
• Transport Package：Carton, Plywood, Pallet
• Specification：CE, ISO, TUV
• Trademark：HUGO
• Origin：Shanghai, China
• HS Code：8425190000
• Production Capacity：10000,Month

Basic Info.

Model NO. HS-VT Certification CE, ISO9001:2000 Condition New Color Yellow Material High Quality Steel Loading Port Shanghai or Tianjin Port Hook Forged Origion China Usage Construction Hoist Brand Hugo Delivery Time 10 Days Payment Term L/C T/T Lifting Height 3m Transport Package Carton, Plywood, Pallet Specification CE, ISO, TUV Trademark HUGO Origin Shanghai, China HS Code 8425190000 Production Capacity 10000/Month

Product Description

Introduction for Hs-Vt Type Chain Block, Chain Pulley Block, Manual Hoist
KII series chain block is one kind of use simple, carries the convenience the manual hoisting machinery. It is in the structural design and the operational performance.




Characteristics for Chain Hoists (VC-B) 2.0 Manganese Steel Hook

1). Uses safely reliable, maintains easily.
2). Mechanical efficiency is high, the bracelet pulling force is small
3). It is self-possessed lightly, and advantageous carries.
4). Durable
5). Small size

Model	VC-B 0.5	VC-B 1	VC-B 1.5	VC-B 2	VC-B  5 3	VC-B 5	VC-B 10	VC-B 20	VC-B 30	VC-B 50
Capacity(t)	0.5	1	1.5	2	3	5	10	20	30	50
Standard lift(m)	2.5	2.5	2.5	3	3	3	3	3	3	3
Running test load(t)	0.75	1.5	2.25	3	4.5	7.5	15	30	45	75
No.of falls of load chain	1	1	1	1	2	2	4	8	12	24
Load chain diameter(mm)	5	6.3	7.1	8	7.1	9	9	9	9	9

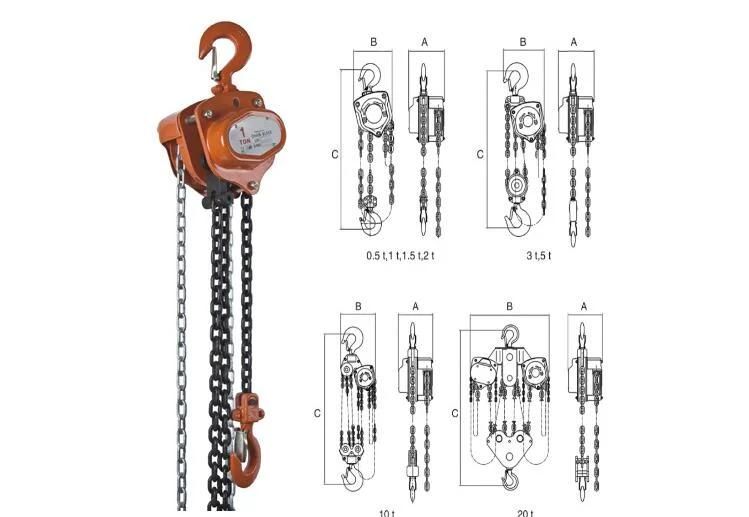

Dimension(mm) A	129	149.5	157.5	161.5	151.5	163	207	215	350	406
B	136	145	164.5	187	164.5	211	398	650	680	962
C	270	317	399	414	465	636	798	890	1380	2578
Net weight(kg)	8.4	12	16.2	20	24	41	79	193	220	1092
Packing(L*W*H)(cm)	22*14*15	25*19*16	33*24*16	33*24*19	34.5*24*16	40*30*19	48*42*18.5	78*68*20	85*67*30	110*100*130

Package for the VC-B manual chain block
