300 400kg Glass Vacuum Suction Cap Device Movable Automatic Glass Lifter
Jinan PLK Machinery Co., Ltd.- After-sales Service：Spare Parts Replacement
- Warranty：2year
- Cup Quantity：6
- Load Capacity：100kg to 800kg
- Lifting Height：1.5m to 3.5m, Customized as Need
- Quantity of Suction Caps：4 PCS, 6 PCS, 8 PCS, Customized
Base Info
- Model NO.：GL
- Suction Cap Diameter：300mm
- Hydraulic Motor：24V,2000W
- Drive Motor：24V,900W
- Battery：2X12V,70ah to 2X12V,160ah, for Various Modes
- Operation Mode：Walking Type or Self Propelled Type
- Charger：24V,20A
- Working Principle：Hydraulic Lifting and Vacuum Sucking
- Carrying Capacity：Weight Level
- Driven Type：DC
- Feature：Explosion-Proof, Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Transport Package：Timer Box
- Specification：6CBM
- Trademark：PLK LIFT
- Origin：China
- HS Code：8428909090
- Production Capacity：50000 Set Per Year
Description

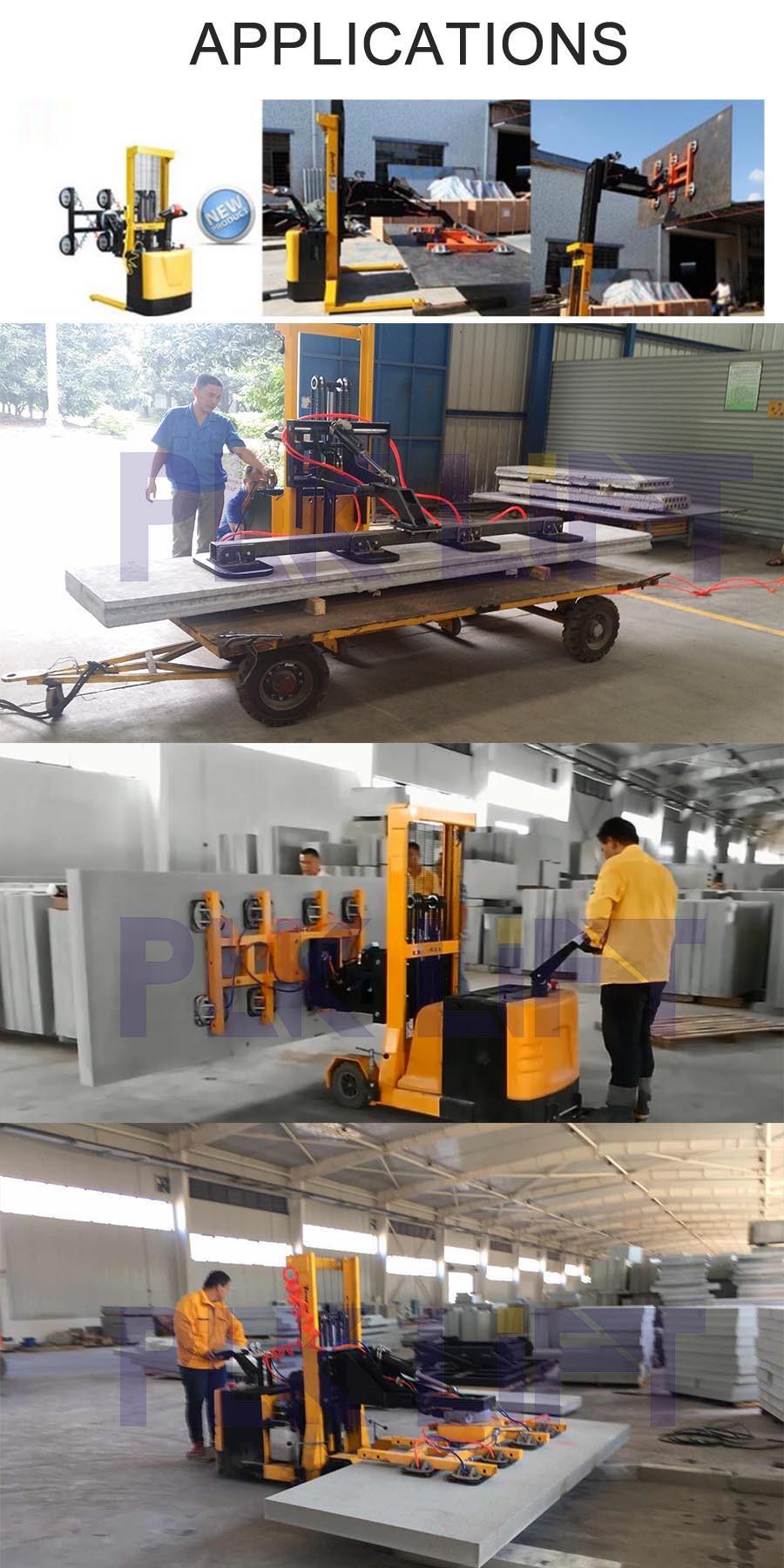

- Mainly used for handling,moving and installing glass,marble,wooden panel etc.HD Series:
Model GL-HD-8015(6) GL-HD-8025(8) GL-HD-6015(4x30) GL-HD-4015(4x30) Max. Load Capacity 800kgs 800kgs 600kgs 400kgs Safe Load Capacity 400kgs 400kgs 300kgs 200kgs Lifting Height 1500mm 2500mm 1500mm 1500mm QTY of Caps (customized) 6pcs 8pcs 4pcs 4pcs Cap Diameter Ø300mm Ø300mm Ø300mm Ø300mm Plate Size (or customized) 3660x2440mm 3660x2440mm 2440x1830mm 1220x1830mm Drive Motor 24V/900W 24V/900W 24V/700W 24V/500W Hydraulic Motor 24V/2000W 24V/2000W 24V/2000W 24V/2000W Battery 2x12V/160Ah 2x12V/160Ah 2x12V/100Ah 2x12V/70Ah Charger 24V/20A 24V/20A 24V/15A 24V/10A
Advantages
1. Integrated control system secures quick and automatic positioning vertically and horizontally by a single push on a button.
2. DC24V reliable actuators for lifting, extension and tipping. efficient and precise. Self propelling, various circuit vacuum suction.
3. Attractive price, staff saving, strong improvement of working environment.
4. Vacuum lifter are dealt with shot blasting and stoving varnish, high anti-corrosion function.
5. High quality pump station make the vacuum lifter lifts and falls very stably.
6. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
7. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
8. Brief structure make it much easier to operate and maintain.
