Low Price Professional Electric Lift Hoist (ECH-JC)
Hangzhou Nuohao Industry Co., Ltd.- Application：Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
- Type：Electric Hoist
- Sling Type：Chain
- Lift Speed：2.6, 0.85- 14, 3.5m, Min
- Maximum Lifting Height：12m
- Chain Falls：1
Base Info
- Model NO.：ECH-JC
- Certification：CE, ISO9001:2000, GS, TUV
- Condition：New
- Color：Orange
- Rate Load：0.25- 5t
- Standard Lift Height：3m as Standard, Others Also Available
- Net Weight：50-85kg
- Hook：High- Class Alloy Steel
- Shell：Alloy Steel
- Chain：G80 Load Chain
- Motor Power：3.0, 1.0- 0.85, 0.21kw
- Power Supply：220V, 380V, 460V, 50, 60Hz
- Overload Protection：Available
- Warranty：One Year
- Transport Package：Carton Packing or Wooden Pallet Packing
- Specification：CE GS and TUV
- Trademark：LTN Or OEM
- Origin：Hangzhou China
- HS Code：84251100
- Production Capacity：5000 Sets, Month
Description
Basic Info.
Model NO. ECH-JC Certification CE, ISO9001:2000, GS, TUV Condition New Color Orange Rate Load 0.25- 5t Standard Lift Height 3m as Standard, Others Also Available Net Weight 50-85kg Hook High- Class Alloy Steel Shell Alloy Steel Chain G80 Load Chain Motor Power 3.0/ 1.0- 0.85/ 0.21kw Power Supply 220V, 380V, 460V, 50/ 60Hz Overload Protection Available Warranty One Year Transport Package Carton Packing or Wooden Pallet Packing Specification CE GS and TUV Trademark LTN Or OEM Origin Hangzhou China HS Code 84251100 Production Capacity 5000 Sets/ MonthProduct Description
Low Price Professional Electric Lift Hoist( ECH-JC)Product Description
01- With suspension hook. push, geared or electric trolley.
02- Standard lift height 3 m, control cable 2.5m
03- Operating voltage 220-440V, 50/60Hz, 1-3 phase
04- Low voltage control 36V is standard.
05- High efficient energy-saving motor, asbestos free brake system.
06- High tensile aluminium alloy cover is light in construction, offers strong corrosion resistance.
07- Top and bottom hooks are fitted with safety latches as standard.
08- Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
09- Solid chain bucket.
10- Super strong surface hardened chain
11- Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.
12- The unique friction clutch overload protection, which protects the unit from overloading.
13- High quality electric components with safety protection.

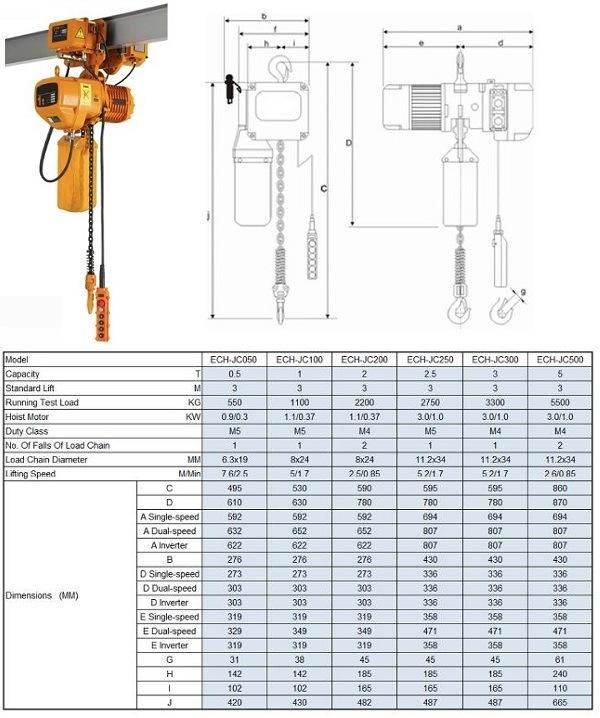

Specification Details
