• Model NO.：HSZ-CD
• Certification：CE, ISO9001:2000, TUV,SGS
• Condition：New
• Color：Red
• Name：Our New Style Product Chain Pully Block
• Factory：More Than 20 Years Manufactory Experience
• Brand Name：Hugo
• Hook：Forged
• Chain：G80
• Delivery Time：15 Days
• Warranty：2 Years
• Painting Color：as Your Wish
• Loading Port：Shanghai Port Tianjin Port
• After-Sales Service Provided：Overseas Services Peovided
• Transport Package：Packing by Carton, Woodon Case
• Specification：CE, ISO, TUV, SGS
• Trademark：HUGO
• Origin：China-Shanghai
• HS Code：8425190000
• Production Capacity：100000PC,Month

Basic Info.

Model NO. HSZ-CD Certification CE, ISO9001:2000, TUV,SGS Condition New Color Red Name Our New Style Product Chain Pully Block Factory More Than 20 Years Manufactory Experience Brand Name Hugo Hook Forged Chain G80 Delivery Time 15 Days Warranty 2 Years Painting Color as Your Wish Loading Port Shanghai Port Tianjin Port After-Sales Service Provided Overseas Services Peovided Transport Package Packing by Carton, Woodon Case Specification CE, ISO, TUV, SGS Trademark HUGO Origin China-Shanghai HS Code 8425190000 Production Capacity 100000PC/Month

Product Description

Introduction for Our New Style Product Chain Pully Block
KII series chain block is one kind of use simple, carries the convenience the manual hoisting machinery. It is in the structural design and the operational performance.

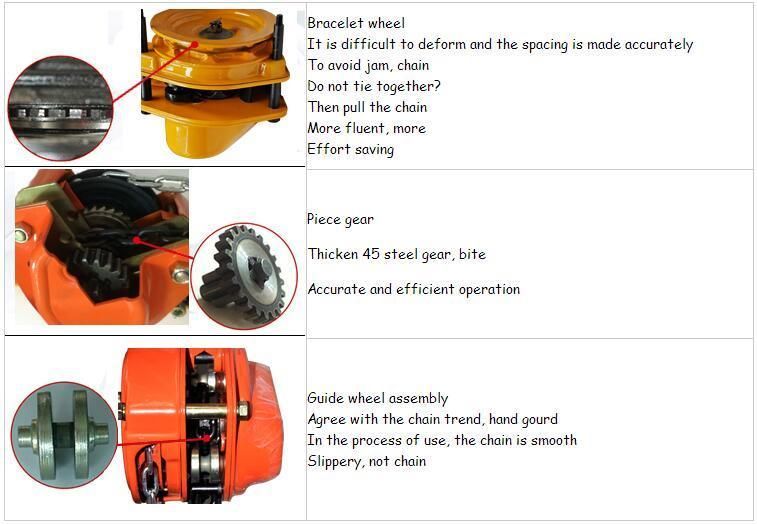

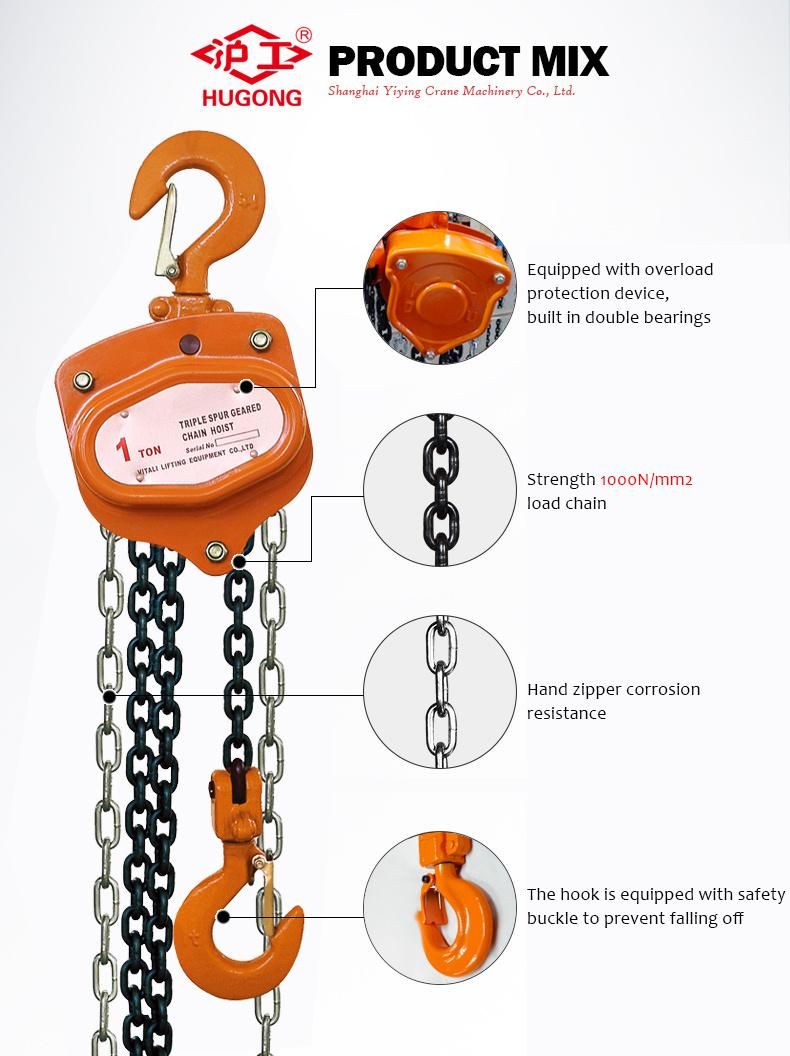

Characteristics for Chain Hoists (VC-B) 2.0 Manganese Steel Hook

1). Uses safely reliable, maintains easily.
2). Mechanical efficiency is high, the bracelet pulling force is small
3). It is self-possessed lightly, and advantageous carries.
4). Durable
5). Small size

Model	VC-B 0.5	VC-B 1	VC-B 1.5	VC-B 2	VC-B  5 3	VC-B 5	VC-B 10	VC-B 20	VC-B 30	VC-B 50
Capacity(t)	0.5	1	1.5	2	3	5	10	20	30	50
Standard lift(m)	2.5	2.5	2.5	3	3	3	3	3	3	3
Running test load(t)	0.75	1.5	2.25	3	4.5	7.5	15	30	45	75
No.of falls of load chain	1	1	1	1	2	2	4	8	12	24
Load chain diameter(mm)	5	6.3	7.1	8	7.1	9	9	9	9	9

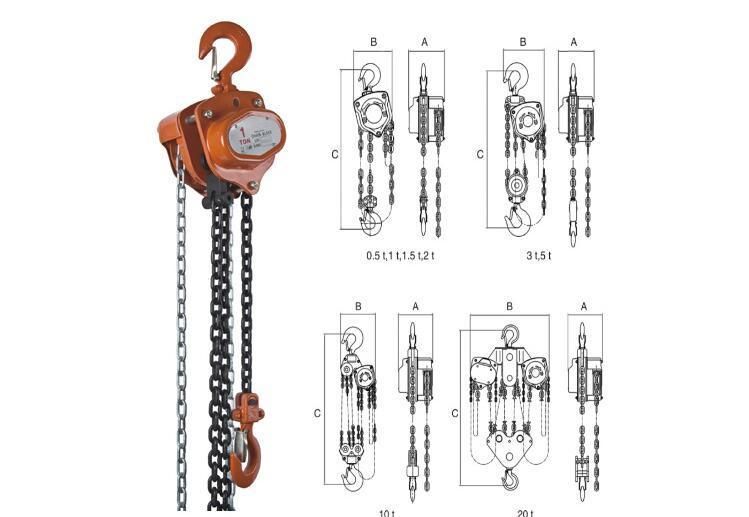

Dimension(mm) A	129	149.5	157.5	161.5	151.5	163	207	215	350	406
B	136	145	164.5	187	164.5	211	398	650	680	962
C	270	317	399	414	465	636	798	890	1380	2578
Net weight(kg)	8.4	12	16.2	20	24	41	79	193	220	1092
Packing(L*W*H)(cm)	22*14*15	25*19*16	33*24*16	33*24*19	34.5*24*16	40*30*19	48*42*18.5	78*68*20	85*67*30	110*100*130

Package for the VC-B manual chain block
