• Model NO.：GTJZ
• Feature：Explosion-Proof, Insulating
• Certification：CE, RoHS
• Load Capacity：300kg
• Platform Height：6m 8m 10m 12m
• Lift Method：Hydraulic
• Platform Size：2270*1150mm
• Voltage：110V 220V 240V
• Frequency：50Hz,60Hz
• Drive Power：DC Battery
• Lift Power：DC Battery
• Guardrail Height：1.1m
• Surface Treatment：Plastic Spray
• Safety Precaution 1：Anti Explosion Valve
• Certifications：CE
• Color：Red Yellow Blue Customized
• After-Sales Service：24 Hours Online Service or Engineers Available to
• Lifting Speed：4-6m,Min
• Transport Package：Standard
• Specification：4 CBM
• Trademark：PLK LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. GTJZ Feature Explosion-Proof, Insulating Certification CE, RoHS Load Capacity 300kg Platform Height 6m 8m 10m 12m Lift Method Hydraulic Platform Size 2270*1150mm Voltage 110V 220V 240V Frequency 50Hz/60Hz Drive Power DC Battery Lift Power DC Battery Guardrail Height 1.1m Surface Treatment Plastic Spray Safety Precaution 1 Anti Explosion Valve Certifications CE Color Red Yellow Blue Customized After-Sales Service 24 Hours Online Service or Engineers Available to Lifting Speed 4-6m/Min Transport Package Standard Specification 4 CBM Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 500 Sets/Month

Product Description

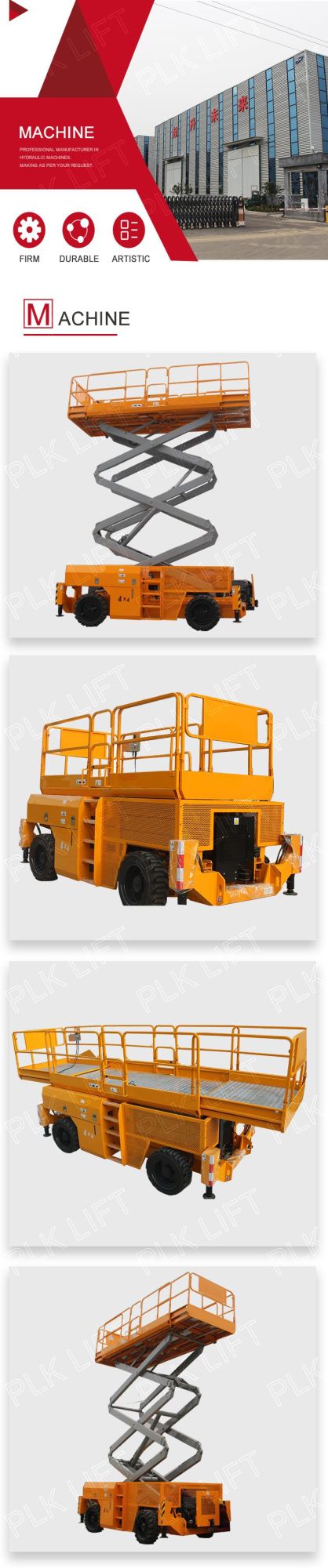

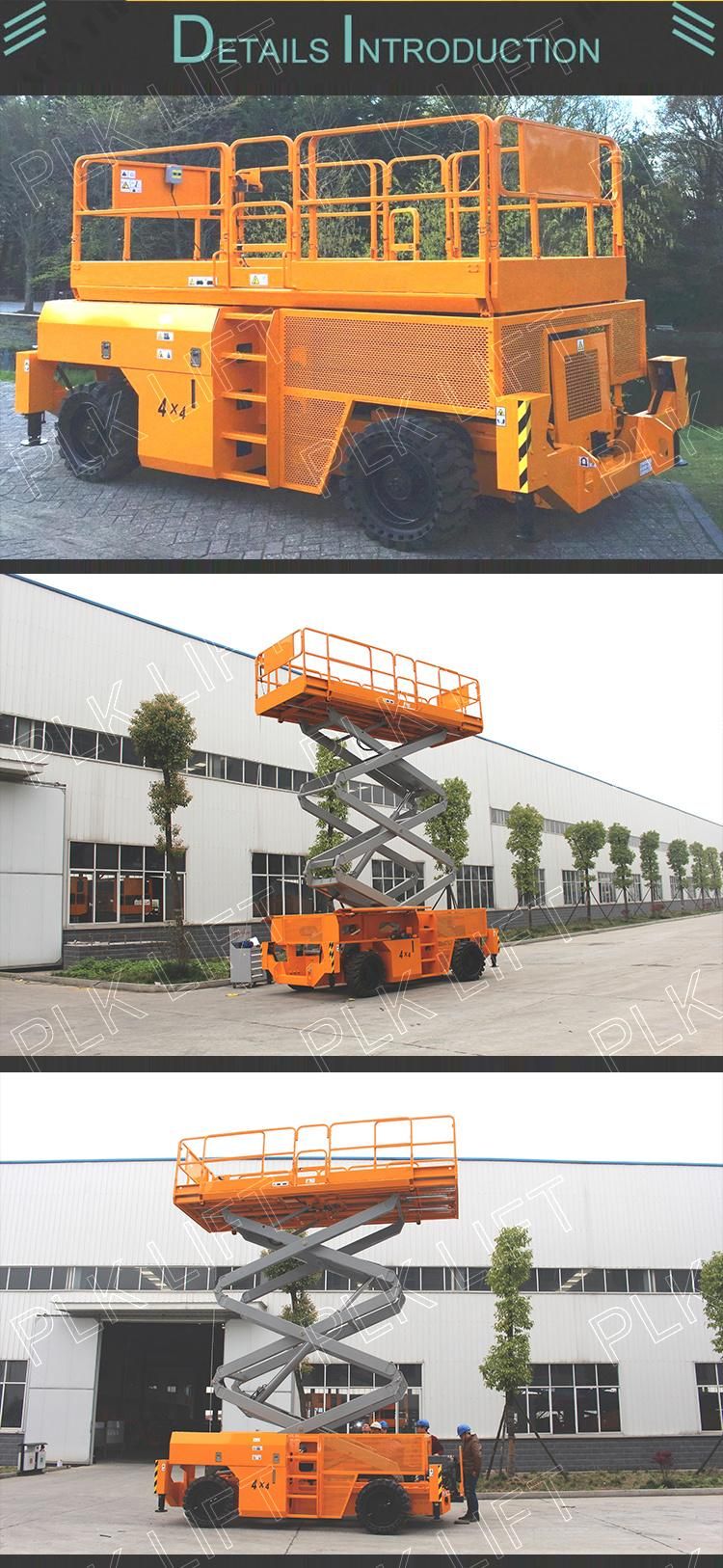

 Rough Terrain Scissor LiftAerial Lift Platform equip high configuration with America TORJAN Battery, Americia CUITIS control system, Sweden bucher pump station, Italy doyle hydraulic valve and America white driving wheel. It is powered by DC, can be controlled by manually and move automatically and the moving speed is adjustable.
There is many safety precautions, for example, explosion-proof valves, spillover valve and emergency decline valve etc...

	GTJZ-08RT	GTJZ-10RT	GTJZ-12RT
Working height max(m)	10	12	14
Platform height max(m)	8	10	12
(1)Platform height min(m)	1.22	1.34	1.46
(2)Outreach(m)	1.5	1.5	1.5
Lifting capacity(kg)	567	454	345
Lifting capacity(kg)(Extended platform)	136	136	136
Platform Size
(3)Lateral length(m)	2.5	2.5	2.5
(4)Extended length(m)	4	4	4
(5)Lateral width(m)	1.6	1.6	1.6
(6)Fence height(m)	1.15	1.15	1.15
(7)Skirting board height(m)	0.15	0.15	0.15
Stowed size
(8)Stowed length(m)	2.67	2.67	2.67
(9)Width(m)	1.75	1.75	1.75
(10)Height(m)	2.38	2.5	2.6
(11)Folded height(m)	1.68	1.8	1.98
(12)Wheelbase(m)	1.85	1.85	1.85
Ground clearance(m)	0.17	0.17	0.17

Aerial Lift Platform moves and lifts all by battery power. Operator can control lifting, moving, turning and all movement on the platform through the control system.




Factory Show  Jinan PLK Machinery Co., Ltd located in Jinan City, Shandong Province, was established in 2003. In passed years, Jinan PLK has developed into a professional manufacturer of aerial working platform, lifting machine and material lift. PLK Machinery is committed to providing customers with best quality products and the professional services. Every year, we invest a lot of money in product renewal. High quality products and professional services make us a leader in the industry.
