• Model NO.：FSL-W
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Color：Customized
• Transport Package：Standard
• Specification：500-2000
• Trademark：PLK LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：500sets,Month

Basic Info.

Model NO. FSL-W Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Color Customized Transport Package Standard Specification 500-2000 Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 500sets/Month

Product Description

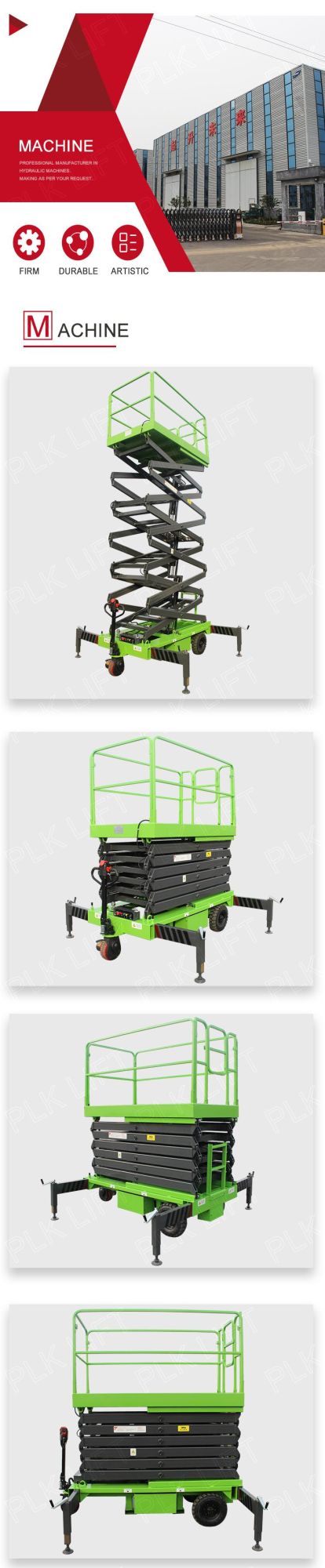

Full Electric Hydraulic 1000kg Mobile Scissor Lift Working Platform
Scissor lift platform is widely using in building construction, fixing street lamp and others aerial working project.
It is controlled by electricity ,moving also .There is two control panel, one is under the platform which install on the surface of the basis, another one is install on the platform.
People can move it by the moving handle ,go forward or back which is convenient for working.



Model No.	Loading Capacity (kg)	Lifting Height (m)	Platform Size (m)	Overall size (m)	Lifting Time (s)	Voltage (v)	Motor (kw)	Rubber Wheels (φ)
FSL0.45-06	450	6	2.1*1.05	2.3*1.23*1.30	55	AC380	1.5	400-8
FSL0.45-7.5	450	7.5	2.1*1.05	2.3*1.23*1.45	60	AC380	1.5	400-8
FSL0.45-09	450	9	2.1*1.05	2.3*1.23*1.60	70	AC380	1.5	400-8
FSL0.45-11	450	11	2.1*1.05	2.3*1.23*1.75	80	AC380	2.2	500-8
FSL0.45-12	450	12	2.75*1.25	2.9*1.43*1.7	125	AC380	3	500-8
FSL0.45-14	450	14	2.75*1.25	2.9*1.43*1.9	165	AC380	3	500-8
FSL1.0-06	1000	6	1.8*1.25	1.95*1.43*1.45	60	AC380	2.2	500-8
FSL1.0-09	1000	9	1.8*1.25	1.95*1.43*1.75	100	AC380	3	500-8
FSL1.0-12	1000	12	2.45*1.35	2.5*1.55*1.88	135	AC380	4	500-8
FSL0.3-16	300	16	2.75*1.25	2.9*1.43*2.1	173	AC380	3	500-8

All our products are CE certificated, good quality and competitive price. Welcome to send the inquiry to us if you are interested in any of them, and we will reply you ASAP.
