• Model NO.：HE500, HE1000, HE1500, HE2000
• Driven Type：Electric Motor
• Running Mode：Stationary
• Certification：CE, ISO 9001
• Min. Lifting Height：85mm;100mm
• Product Name：E-Shape Lift Table
• Capacity：500-2000kg
• Max. Lifting Height：885mm; 820mm
• Mechanism：Scissor Lift
• Package：Pallet with Stretch Film or Cartons
• Power Pack：380V,50Hz, AC0.75kw
• Transport Package：Carton Box Package
• Specification：1400*1200mm-1500*1300mm
• Trademark：Liford
• Origin：Jiangsu
• HS Code：84279000
• Production Capacity：600PCS,Month

Basic Info.

Model NO. HE500, HE1000, HE1500, HE2000 Driven Type Electric Motor Running Mode Stationary Certification CE, ISO 9001 Min. Lifting Height 85mm;100mm Product Name E-Shape Lift Table Capacity 500-2000kg Max. Lifting Height 885mm; 820mm Mechanism Scissor Lift Package Pallet with Stretch Film or Cartons Power Pack 380V/50Hz, AC0.75kw Transport Package Carton Box Package Specification 1400*1200mm-1500*1300mm Trademark Liford Origin Jiangsu HS Code 84279000 Production Capacity 600PCS/Month

Product Description

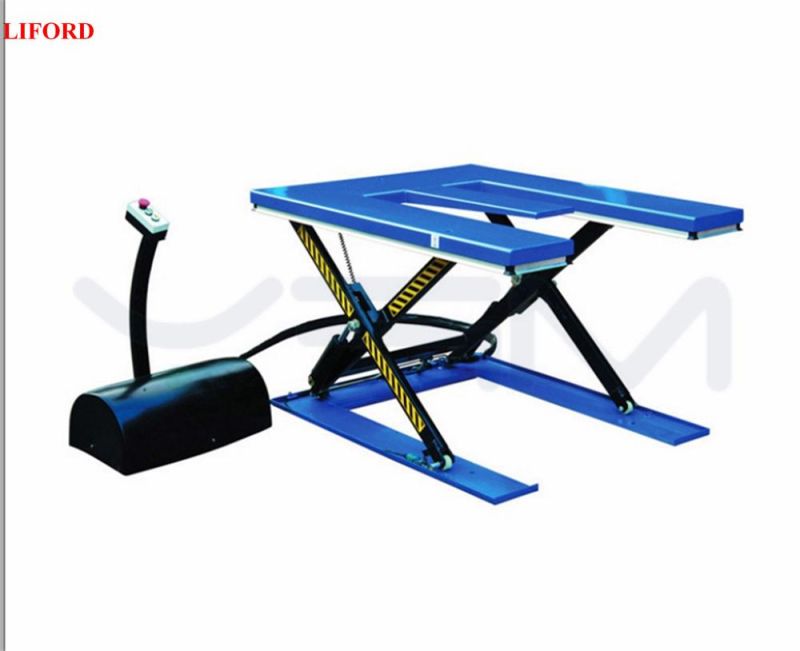

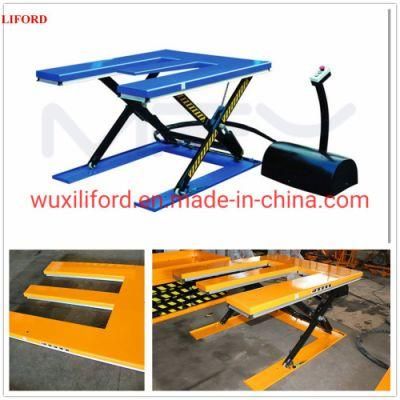

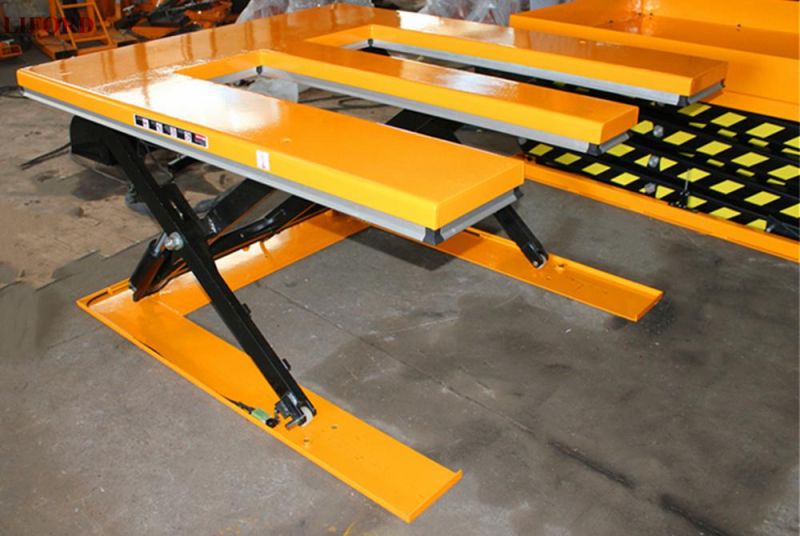

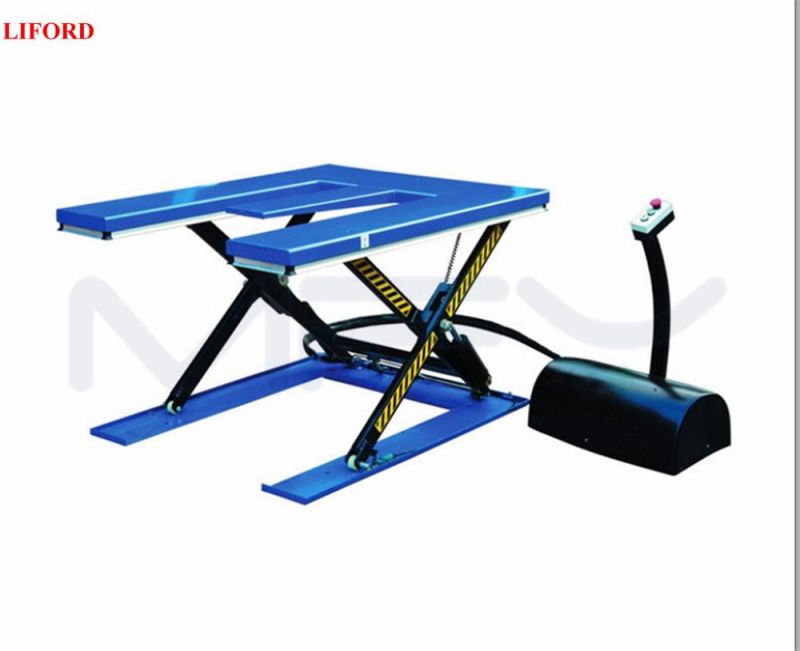

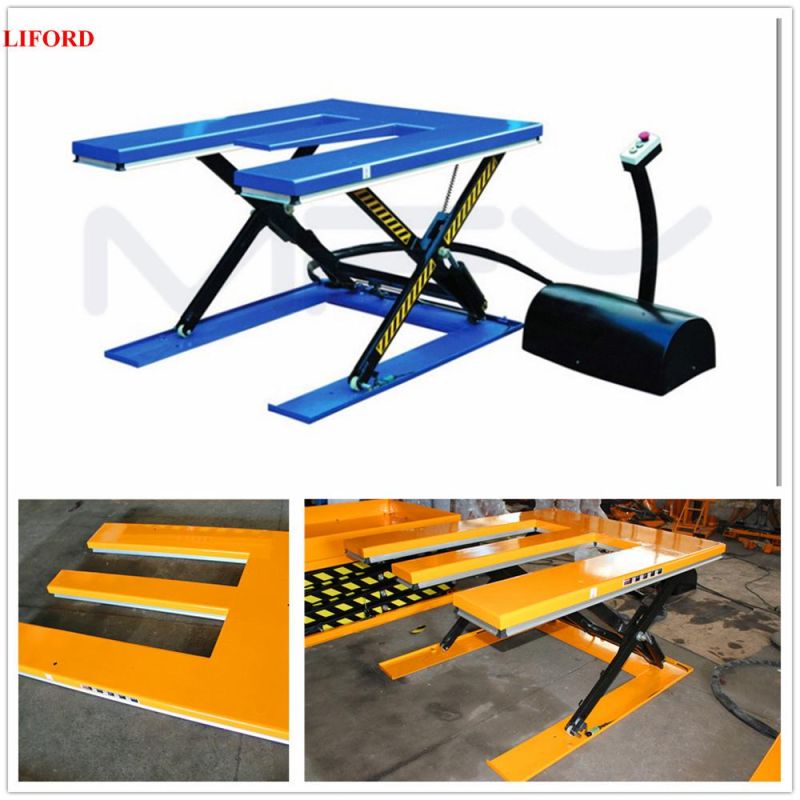

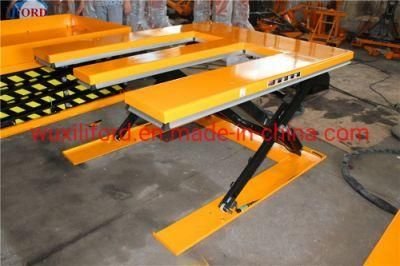

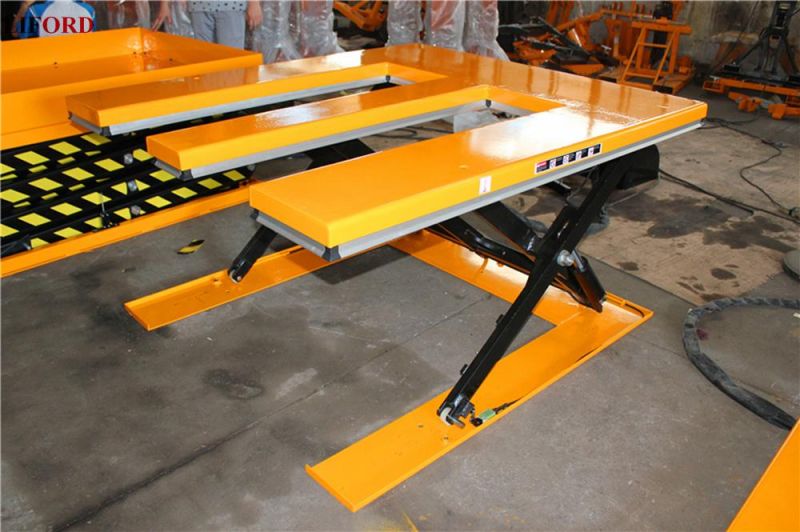

1000kg E-Shape Low Profile Electric Hydraulic Scissor Lift Table

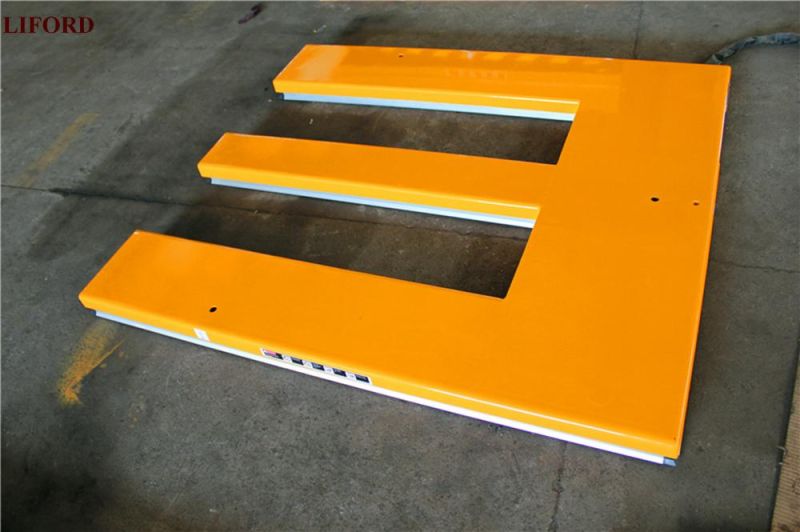

Feature of 1000kg 'E' Shape Low Profile Electric Hydraulic Scissor Lift Table1. 'E' Shaped Top Platform;
2. Specially for handling pallets, no need for a pit or load ramps;
3. They are manufactured to all European safety standards including EN1570:1990;
4. Remote power pack with pedestal and controls ,pretected to IP54;
5. Upper platform fitted with safety perimeter to prevent descent on contact with obstructions;
6. 24V control box with UP and DOWN buttons and emergency stop;
7. External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed;
8. Hose burst safety valve to stop the lift table lowering in case of hose breakage;
9. Removable lifting eyes to facilitate handling and installation of the lift table;
10. Mechanical safety chocks for maintenance;
11. Oiless bushings on pivot points;
12. Quick assembly joint for oil hose.







 Technical Data of 1000kg 'E' Shape Low Profile Electric Hydraulic Scissor Lift Table


Model	HE500	HE1000	HE1500	HE2000
Capacity (kg)	500	1000	1500	2000
Max. height H(mm)	580	580	580	580
Collapsed height h(mm)	85	85	105	105
Platform L×W(mm)	1400×1200	1450×1140	1600×1180	1600x1180
Lifting Time (second)	25~35	25~35	30~40	30~40
Power Pack (KW)	380V/50Hz, AC0.75KW	380V/50Hz, AC0.75KW	380V/50Hz, AC1.5KW	380V/50Hz, AC2.2KW
Net Weight (kg)	207	285	390	420

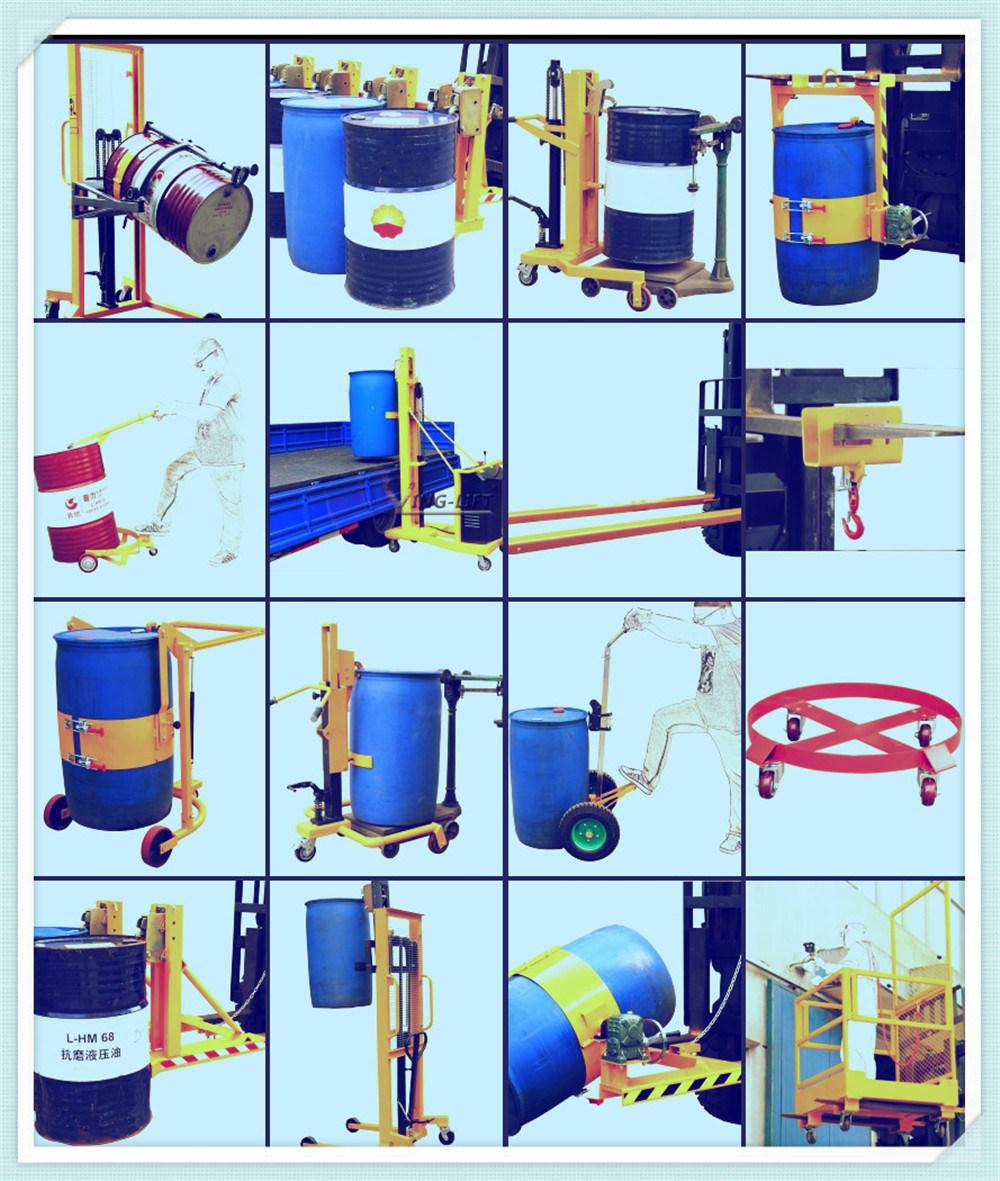

Related Other Drum Handlers
