6-16m EU Standard High Quality Man Lift for Sale
Jinan PLK Machinery Co., Ltd.- After-sales Service：Online Service, Free Express Accessories.
- Warranty：12 Months
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Lift Chain
- Carrying Capacity：Middle-Level
- Moves：Moving
Base Info
- Driven Type：AC
- Running Mode：Moving
- Feature：Explosion-Proof, Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Capacity：150kg, 200kg, 250kg
- Lift Height：6,8,9,10,12,15,18,20m
- Platform Size：1.38*0.6m, 1.48*0.6m, 1.58*0.6m
- Standard Lifting Power：AC Electrical Power Supply
- Optional Lifting Power：Battery Operated
- Voltage：110V, 220V, 380V, Customize
- Machine Size：1.45*0.88*1.75m; 1.65*0.88*2.05m Depending Models
- Standard Moving Way：Manually or Towable
- Optional Moving Way：Battery Powered
- Safety Precaution：Deadman Switch
- Advantage 1：Standard Forklift Hole for Safe Loading
- Advantage 2：AC Power on Platform for Use Electric Tools
- Advantage 3：Cylinder Holding Valve, Anti-Explosion Function
- Advantage 4：Easy Loading to Truck by One Person
- Advantage 5：Four Outrigger Interlock Function
- Transport Package：Plastic Film
- Specification：2.2 CBM
- Trademark：PLK LIFT
- Origin：China
- HS Code：8428909090
- Production Capacity：50000 Set Per Year
Description
0.67*0.66320 1.24*0.74*1.99 GTWY8-1H 8 10 150 345 1.36*0.74*1.99 GTWY9-1H 9.2 11 150 365 1.4*0.74*1.99 GTWY10-1H 10.4 12 136 385 1.42*0.74*1.99 GTWY12-1H 12 14 120 460 1.46*0.81*2.68
Safety Precautions:
Factory Show
Safety Precautions:

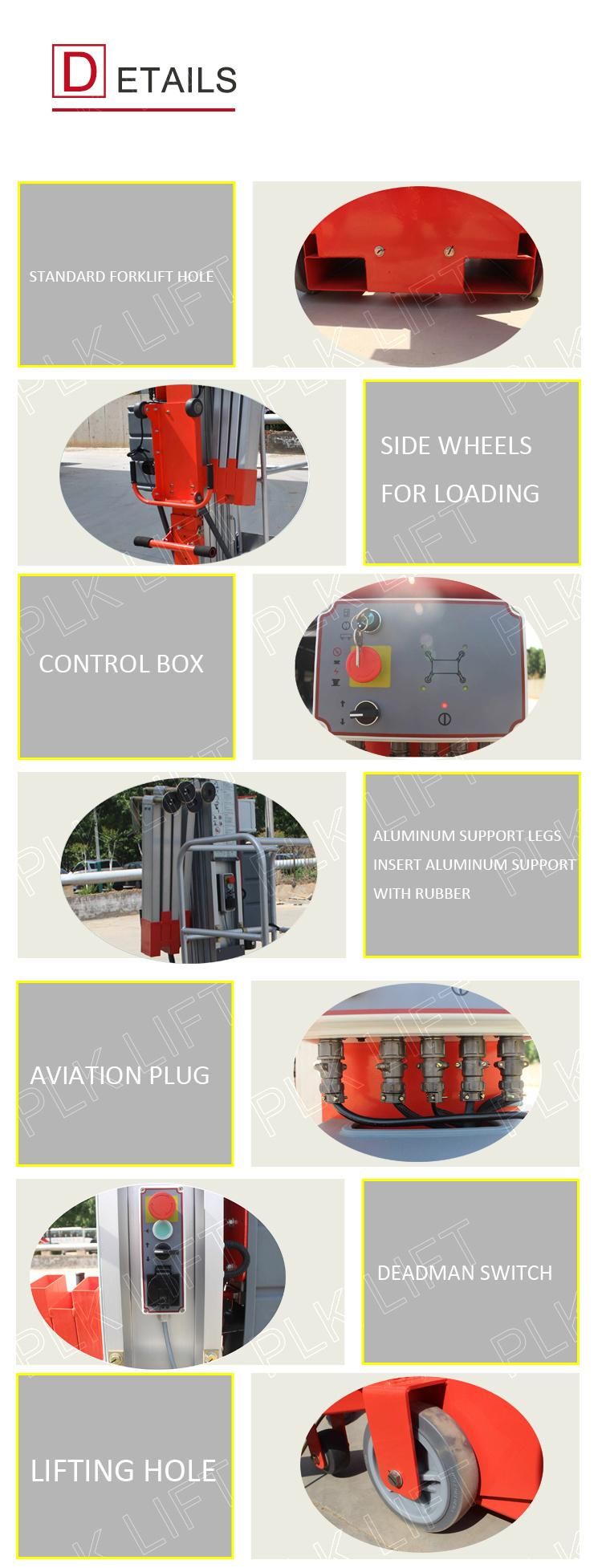

- Deadman switch function,high safety when operation
- AC power on platform for electric tools usage
- Cylinder Holding Valve, anti-explosion function
- Standard forklift hole for easy loading
- Over load protection
- 24V safe control voltage
- Double safety protection with leveling sstabilizers and outriggers support
- Non marking wheels
- Low maintenance requirement will save you time and moneyEconomic control panel, power indicator electric shock protector, circuit breaker etc.
- Built in pressure release valve
- Mergency stop button s are available both on the platform and on the low postion
- Emergency lowering device
- Broken valve activated automatically to stop the flowing of hydraulic oil in case any pipe broken
- Economic control panel, power indicator electric shock protector, circuit breaker etc.
- Free Spare Parts Replacement during warranty period
