• Model NO.：ZA14JE
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Work Height：16mm
• Platform Height：14m
• Horizontal Outreach：7.50m
• Drive Mode：4WD
• Transport Package：Nude
• Specification：7*2.05*16 m
• Trademark：Zoomlion
• Origin：Hunan, China
• Production Capacity：5000PCS,Year

SizeWork Height16mPlatform Height14mHorizontal Outreach7.50mUp and Over Height7.74mA - Stowed Length6.6mB - Stowed Width1.75mC - Stowed Height2mD - Platform Length1.52mE - Platform Width0.76mF - Wheelbase2.05mG - Ground Clearance200mmPerformancePlatform Capacity230kgDrive Speed6.1km/hGradeability30%(17°)Axles OscillationTurning Radius (Inside)0.79mTurning Radius (Outside)3.15mSwing360°   continuousPlatform Rotation±90°H-Tail Swing0mMax. Working Slope2/4°Max. Wind Speed12.5m/sPowerBattery24×2V/320AhCharger48V/60ADrive MotorAC 32VLift MotorDC 48VAuxiliary PowerManual PumpHydraulic Tank Capacity30LTireType240/55D17.5 Foam-filled TiresWeightGross6800kgHighlightsZA14JECenter layout, great structural rigidity, and small boom deflectionAdvanced dual control system (valve control + pump control) offers a energy-saving and smooth controlAccurate and efficient traveling AC drive system provides strong power and stable controlFeaturesStandard FeaturesProportional controlAll motion alarmFlashing amber beaconSelf-closing entry gateEmergency descent systemEmergency stop buttonAuto-leveling systemOn-board diagnostic systemOver tilt protection systemLoad sensing system4.3' LED displayHornAccessories & OptionsAC power to platformAirline to platformNon-marking tireHotline: +86 400-800-0157 Add: ZOOMLION Wangcheng Industrial Park, Tengfei Road 997, Wangcheng District, Changsha, Hunan, PRC.Zip Code: 410200

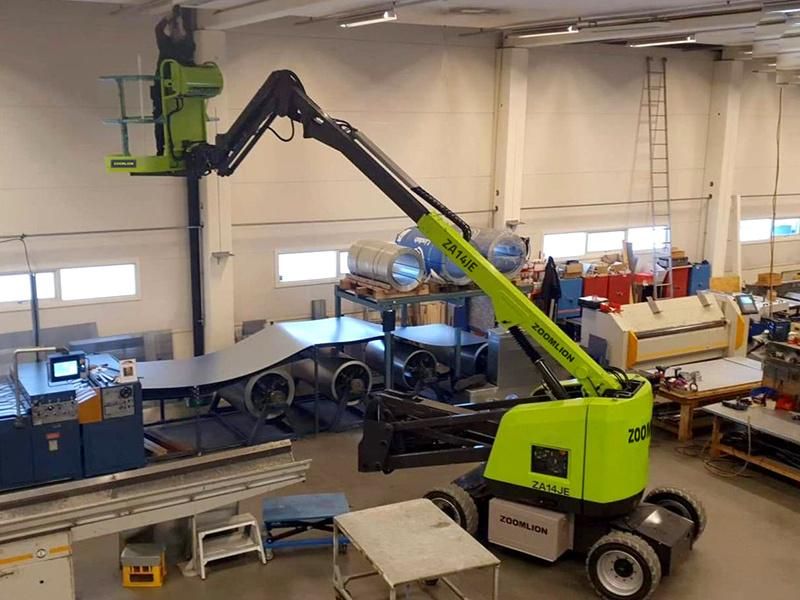

ZA14JE is an electric articulating boom lift. It adopts a center layout and has a great structural rigidity. Excellent energy management system gives longer running time and improves battery life. The accurate and efficient AC drive system provides strong power and smooth control. Advanced dual control system (valve control + pump control) offers an energy-saving and efficient operation. With low noise, zero emissions and easy maintenance, this boom lift is ideal for indoor applications.

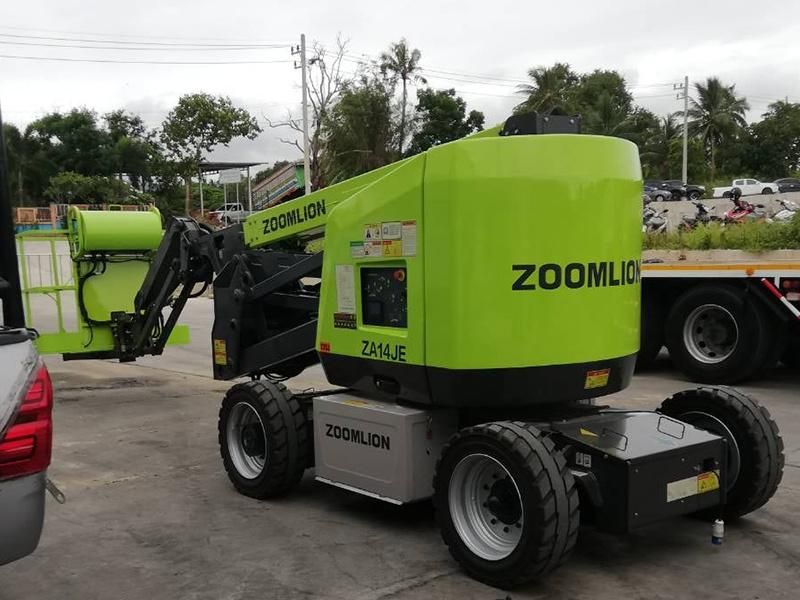

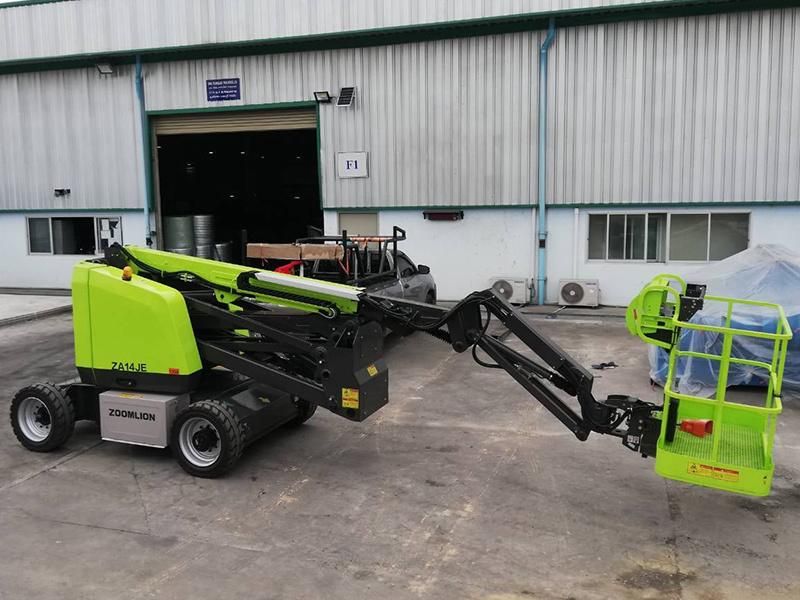

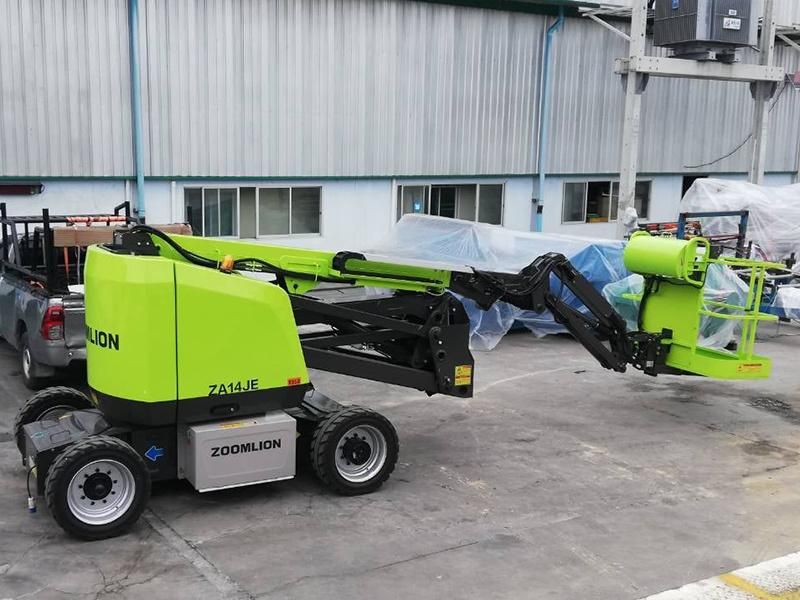

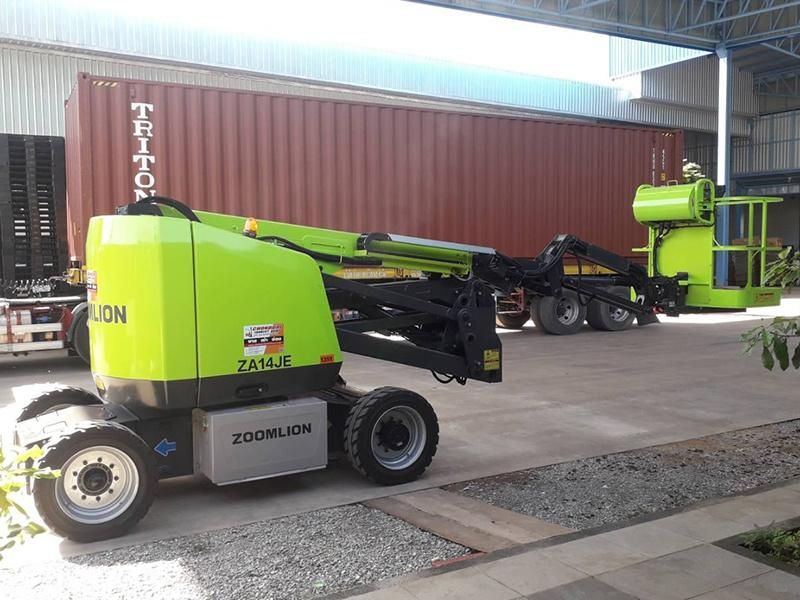

Product Images
