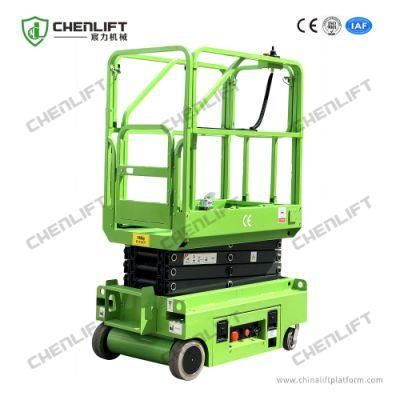

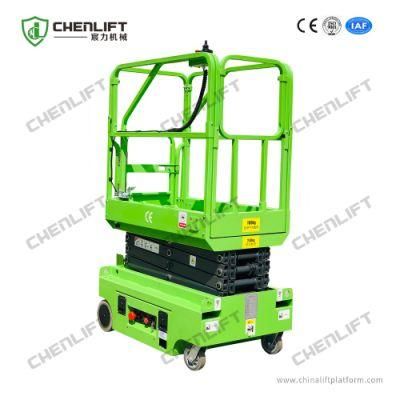

5m Working Height Mini Type Fully Electric Scissor Lift with Ce Certificate
Chenlift (Suzhou) Machinery Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Lift Chain
- Carrying Capacity：Middle-Level
- Moves：Self-propelled
- Driven Type：DC
- Running Mode：Moving
Base Info
- Model NO.：MX300R
- Feature：Explosion-Proof
- Certification：CE, ISO 9001
- Max Platform Height：3 M
- Max Working Height：5 M
- Load Capacity：240 Kg
- Platform Size：1.15* 0.6 M
- Platform Extension Length：Optional Configuration
- Lift/Drive Motor：24V 0.8 Kw,24V 0.3 Kw
- Ground Clearance( Stowed/Raised)：0.05 M
- Gradeability：25%
- Turning Radius：0
- Wheelbase：1.03 M
- Transport Package：Wrapped with Film
- Specification：1.3* 0.76*1.5 m
- Trademark：CHEN LIFT
- Origin：China
- HS Code：8428909090
- Production Capacity：3000 Units Per Year
Description
Model MX300R MX390RLoad240 kg240 kgPlatform Height3 m3.9 mWorking Height5 m5.9 mPlatform Size1.15* 0.6 m (No Extension)
1.15* 0.7 m (With Extension)1.15* 0.6 m (No Extension)
1.15* 0.7 m (With Extension)Optional Configuration:
Extension PlatformExtension Length: 0.55 m
Extension Load: 100 kgExtension Length: 0.55 m
Extension Load: 100 kgLift/Drive Motor24v 0.8kw/ 24v 0.3 kw24v 0.8kw/ 24v 0.3 kw2 Wheel Type: Swivel Wheel Type and Hydraulic Turning Wheel Type( more easily turning)
Details
Safety Precaution
Client &Exhibition
Other Related Products
Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommended to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Operation video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
1.15* 0.7 m (With Extension)1.15* 0.6 m (No Extension)
1.15* 0.7 m (With Extension)Optional Configuration:
Extension PlatformExtension Length: 0.55 m
Extension Load: 100 kgExtension Length: 0.55 m
Extension Load: 100 kgLift/Drive Motor24v 0.8kw/ 24v 0.3 kw24v 0.8kw/ 24v 0.3 kw2 Wheel Type: Swivel Wheel Type and Hydraulic Turning Wheel Type( more easily turning)
Details

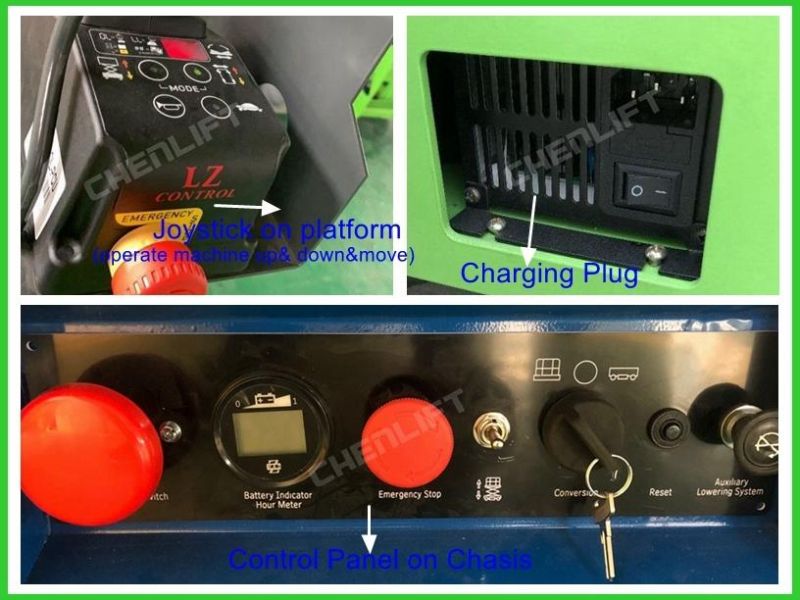

Safety Precaution- Auxiliary Lowering Devices
- Anti-burst System
- Emergency Stop Button
- Tilting Protection System
- Charging Protection System
- Automatic Braking System
- Buzzer and Horn
