• Model NO.：SP32
• Certification：CE, ISO 9001
• Platform Size：0.55*0.6m
• Max Platform Height：3.2m
• Max Working Height：5.2m
• Load Capacity：125kg
• Stowed Size：1.2*0.75*1.98m
• Ground Clearance：70 mm
• Machine Weight：145kg
• Operation Mode：Manual
• Move Mode：Push by Manpower
• Casters：6 in
• Transport Package：PVC Film Wrapped in Pallets
• Specification：1.2*0.75*1.98m
• Trademark：CHEN LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：2000 Piece for One Year

Basic Info.

Model NO. SP32 Certification CE, ISO 9001 Platform Size 0.55*0.6m Max Platform Height 3.2m Max Working Height 5.2m Load Capacity 125kg Stowed Size 1.2*0.75*1.98m Ground Clearance 70 mm Machine Weight 145kg Operation Mode Manual Move Mode Push by Manpower Casters 6 in Transport Package PVC Film Wrapped in Pallets Specification 1.2*0.75*1.98m Trademark CHEN LIFT Origin China HS Code 8428909090 Production Capacity 2000 Piece for One Year

Product Description

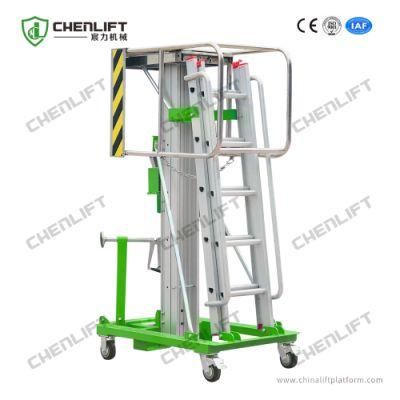

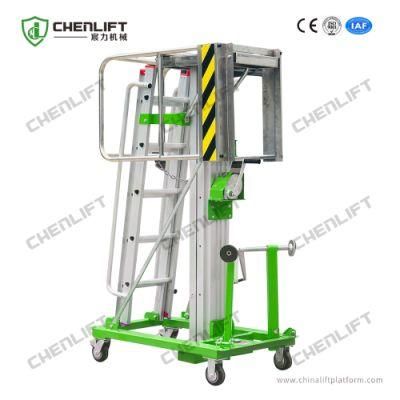

5.2m Working Height Manual Winch Elevating Work Platform

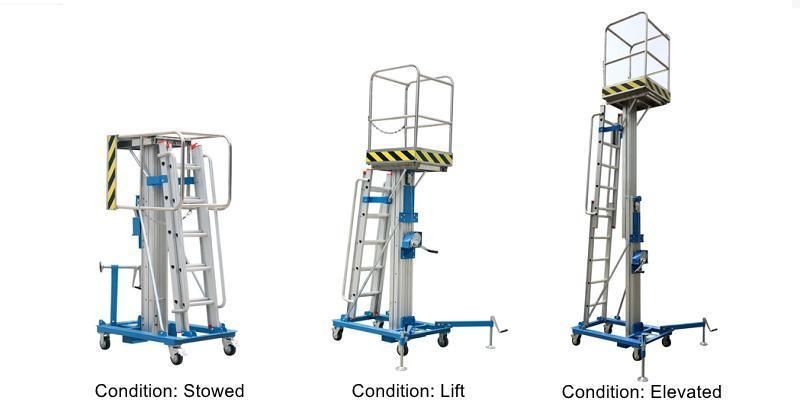

 An economical alternative to electro-hydraulic lifts, this Manual Winch Elevating Work Platform is simple to use and maintain. The lift is quickly elevated to the desired working height with a hand crank winch and then the user climbs a ladder to the platform. Built in safety features include a friction brake on the winch and outriggers that can be placed in an X pattern or rectangular. In addition, in case the cable is cut or snaps, a spring loaded mechanical stop engages as soon as tension is released from the cable, preventing a vertical drop.

The Manual Winch Elevating Work Platform is built tough to handle the day-to-day demands of industrial and commercial use. Getting those overhead jobs done requires a lift that is dependable. Designed to be handled and operated by one worker, it rolls easily from job to job and rolls easily through a standard doorway.

Specification

Model	SP32	SP46
Platform Height	3200 mm	4600mm
Platform Size	550*600 mm	550*600 mm
Load Capacity	125 kg	125 kg
Stowed Length	1200 mm	1300 mm
Stowed Width	750 mm	800 mm
Stowed Height	1980 mm	2070 mm
Ground Clearance	70 mm	70 mm
Machine Weight	145 kg	190 kg
Operation Mode	Manual	Manual
Move Mode	Push by manpower	Push by manpower
Casters	6 in	6 in

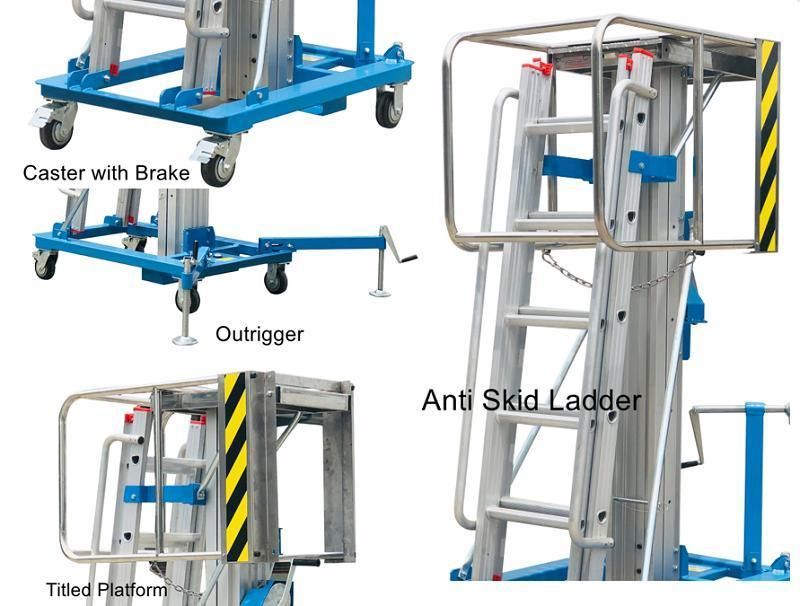

Highlight

1. Exclusive built manual hand winch features heavy duty brake
2. Large 550*600mm skid-resistant platform with toe boards and tubular guardrails
3. Smooth rolling 6 in casters for easy movement
4. Compact design allows easy movement of the unit through standard doorways

 Our Company
Chenlift (Suzhou) Machinery Co Ltd. is a Suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.

We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application.
We have established distributor relationship with customers from over 30 countries and regions in Southeast Asia, Middle East, South America, Europe and Africa.

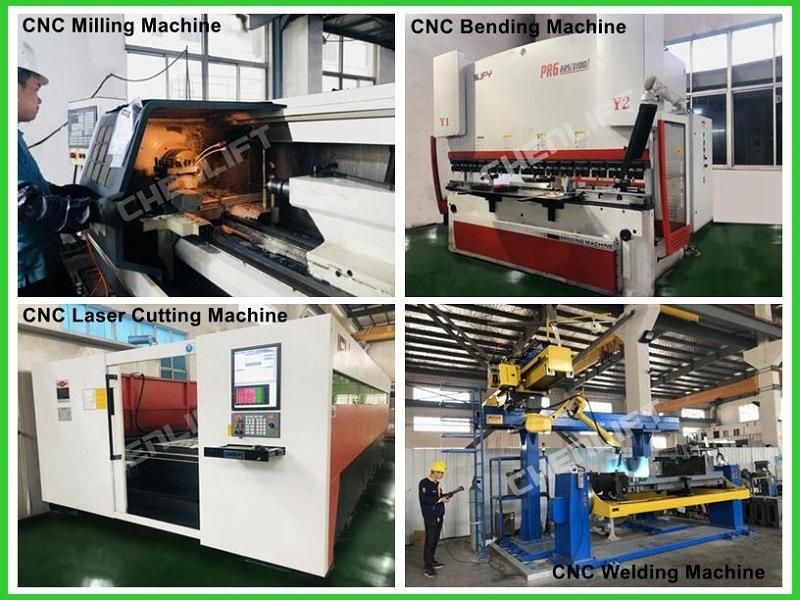

Factory Equipment


Clients & Exhibition

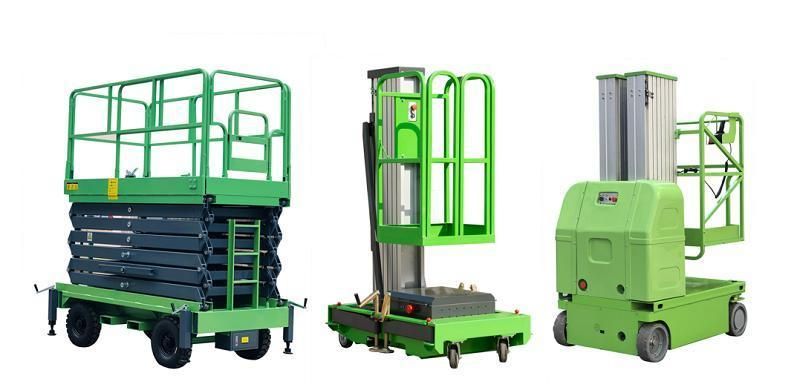

Other Related Products


Our Service

1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommended to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Opeartion video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
