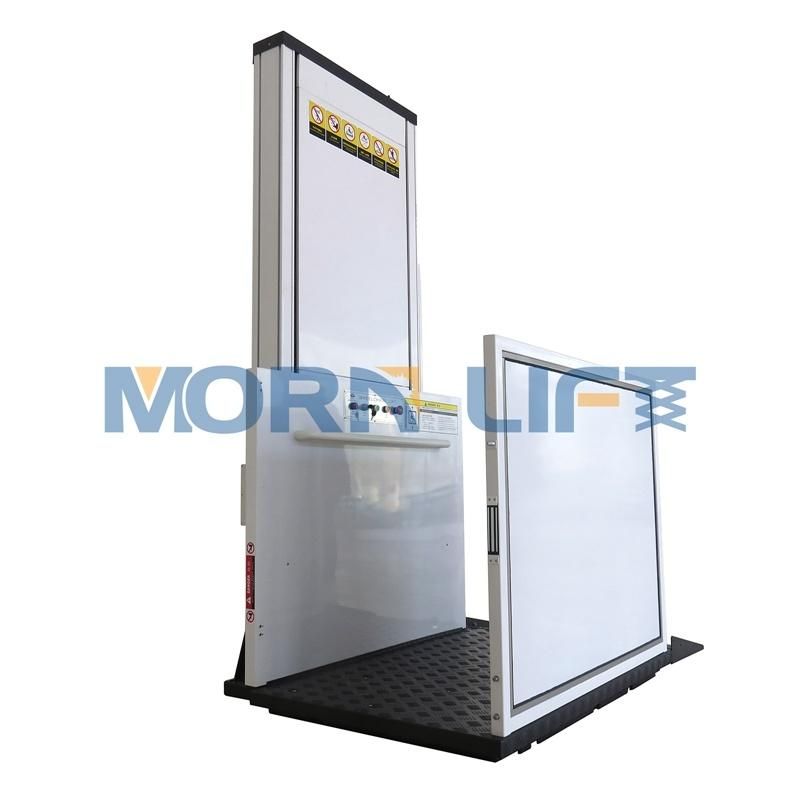

1-6m Indoor Man Wheelchair Lift with Ce Certificate
Jinan Morn Technology Co., Ltd.- Application：Building Crane
- Lift Mechanism：Lift Chain
- Carrying Capacity：Light Level
- Moves：Stationary
- Driven Type：Hydraulic
- Running Mode：Stationary
Base Info
- Model NO.：VPL0.25-1.0
- Feature：Explosion-Proof, Insulating
- Certification：CE, ISO 9001
- Loading Capacity：250kg
- Max. Lifting Height：1m
- Min. Lifting Height：60mm
- Self-Weight：350kg
- Platform Size：1430*1000mm
- Warranty：12 Months
- Certificate：Ce
- Voltary：220V ,240V,380V,415V, Optional
- Control：Post Control, Platform Control, Remote Control
- Power：2.2kw
- Transport Package：Stretch Film & Plywood Case Outside of Wheelchair
- Specification：2100*1430*1400MM
- Trademark：MORN LIFT
- Origin：Shandong, China
- HS Code：842890
- Production Capacity：20 Units Per Month
Description
Specifications of 5m outdide home elevator handicapped man lift for wheelchair usersModel WL0.25-1.0 Lift capacity 250kg Max Platform Height 1000mm Platform size 1430(L)*1000(W)mm Dimension 2100*1430*1400MM Min Platform height 60mm Entrance and exit 180° or 90°in and out Speed 60mm/s Material of Platform Aluminum alloy(White powder coating) Voltage Input According to customer local voltage
Satety devices for 1-6m indoor man wheelchair lift with CE Certificate Safety sensor on the platform bottom
Satety devices for 1-6m indoor man wheelchair lift with CE Certificate
Safety sensor on the platform bottom
It could make sure the machine stop immediately when touching something under the platform, especially there is children or pet. This could avoid many accidents because of sightless spot vision.

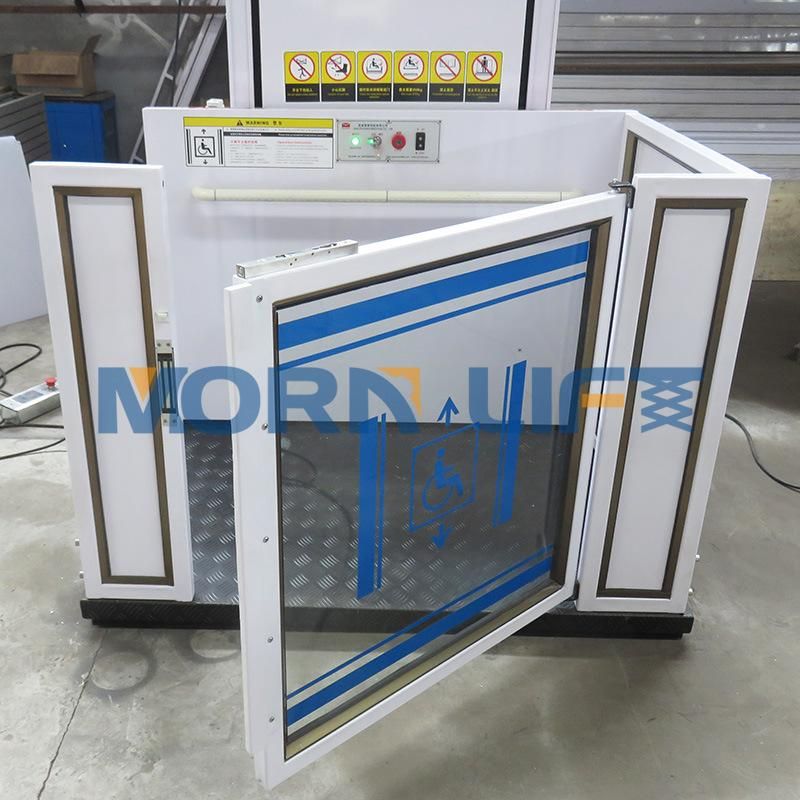

The interlocking, electromagnetic lock and manual lock
The machine would not start if the interlock is open.
And the electromagnetic lock would make sure that the in and out door would not open when the machine up and down.
Manual lock is a lock by hand after getting onto the lift to protect the safety in case of falling down.

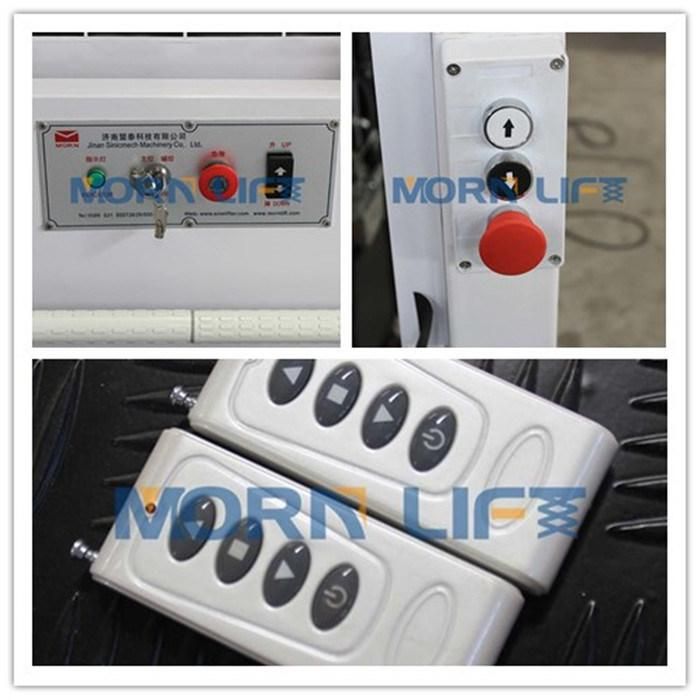

Three kinds of control:post control, platform control, remote control
Packing
1-6m indoor man wheelchair lift with CE Certificate will be packed into steel framed veneer case for safety shipment.
Application

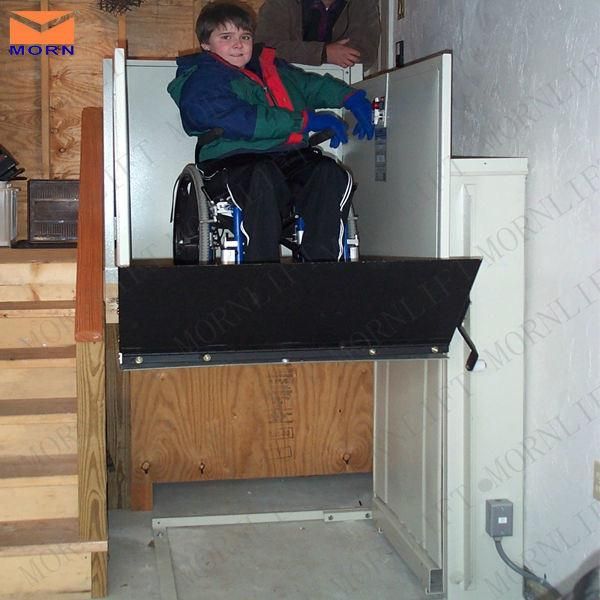

This lift is specifically designed to provide convenient and safe access for those in wheelchairs, or those who cannot use the stairs because of a physical disability.
