• Model NO.：GTBZ14JD
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Transport Package：Conventional
• Specification：6420*1750*2000mm
• Trademark：XCMG
• Origin：Jiangsu
• Production Capacity：30

Basic Info.

Model NO. GTBZ14JD Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Transport Package Conventional Specification 6420*1750*2000mm Trademark XCMG Origin Jiangsu Production Capacity 30

Product Description

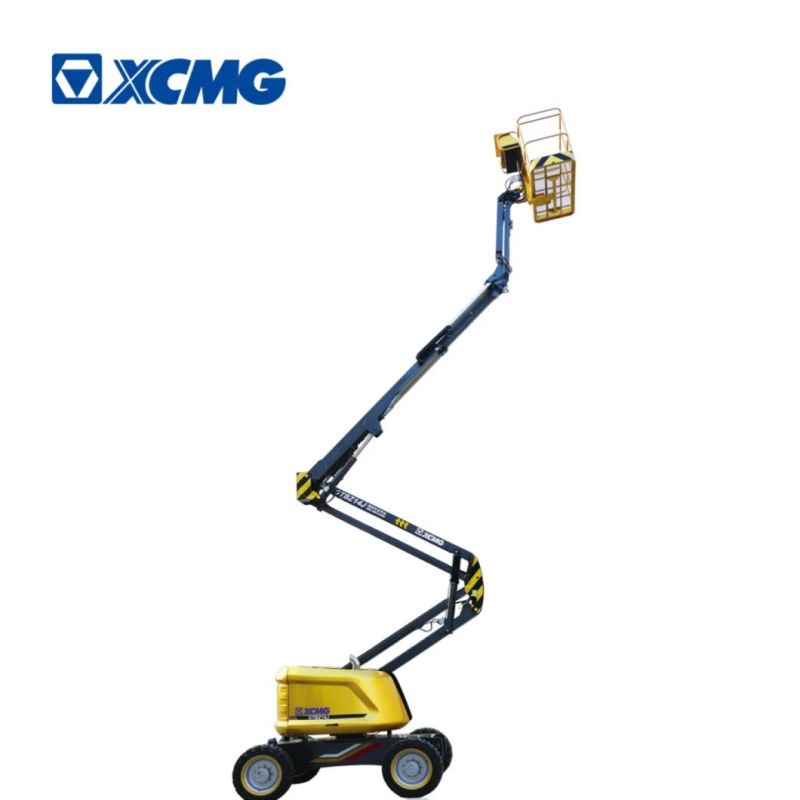

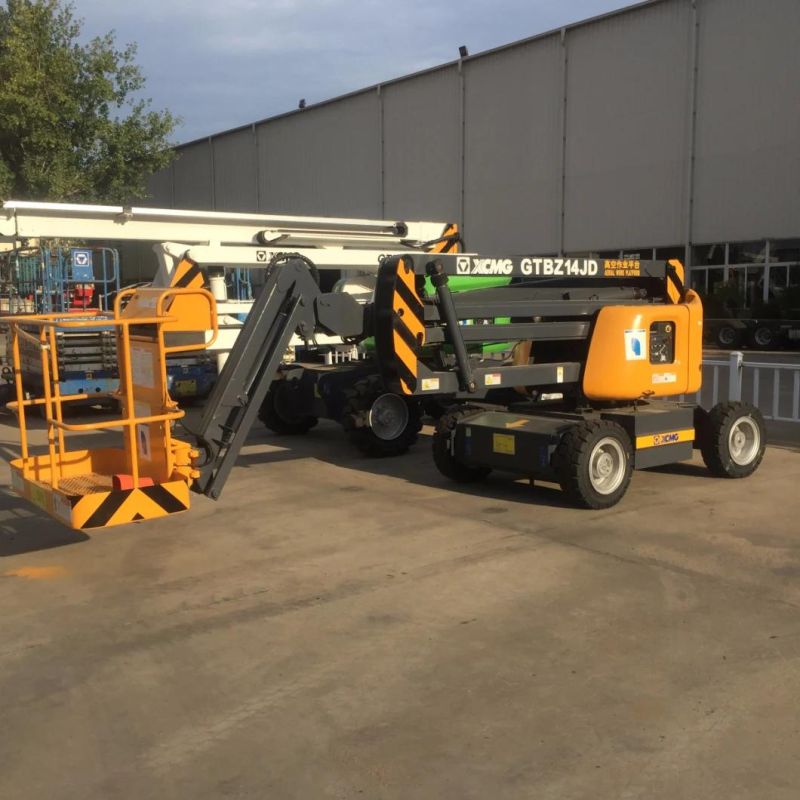

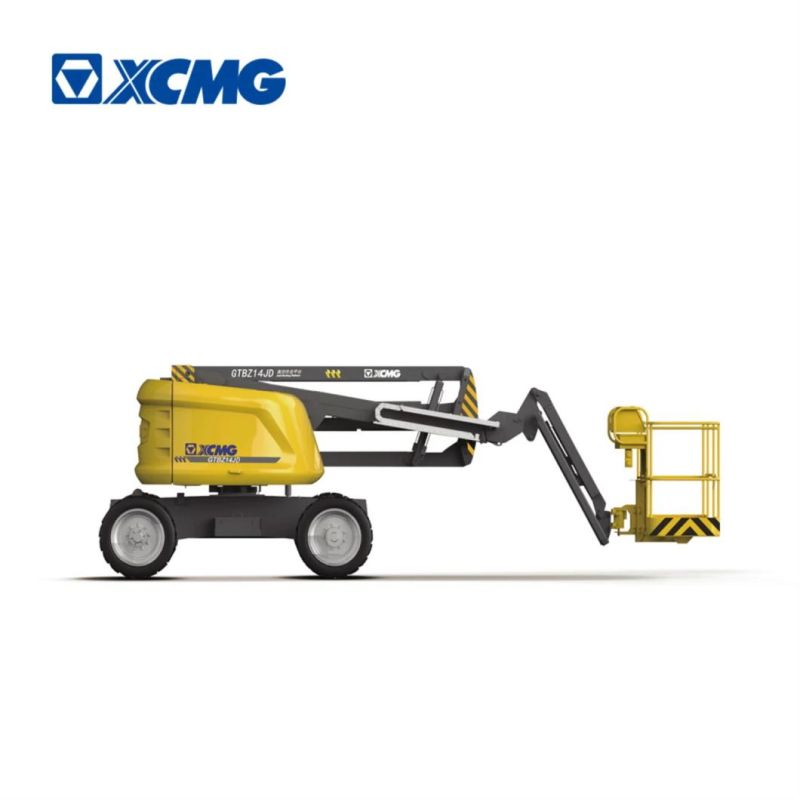

XCMG Official Manufacture 14m Articulated Boom Lift Aerial Platform Lifting Equipment GTBZ14JD

(1)Leading Technologies

The first electric-driven articulated boom lift product is leading the domestic industry in terms of main working parameters. In addition, the AC electric-driven traveling technology and the differential traveling control technology are applied to realize more accurate power matching and more flexible steering control.

(2)Higher Safety and Stability

The complete safety protection, the independently designed control system, and high-efficiency worm and gear mechanism provide an all-new operation experience.

(3)Flexible Operations

The"Crank-slider"mechanism is applied to realize small turning radius and flexible steering. In addition, the 30% gradeability makes the driving operations easier.













Description	Unit	Parameter value
Overall length	mm	6420
Overall width	mm	1750
Overall Height	mm	2000
Overall dimension of work platform	mm	1400×770×1150
Maximum speed	km/h	5.2
Max. grade ability	%	≥30
Minimum outside turning radius	m	≤3.2
Ground clearance (center)	m	0.21
Wheel base	m	2
Total mass	kg	6500
Rated working height	m	15.5
Max. platform height	m	13.8
Max. working radius	m	8
Maximum span clearance height	m	7.03
Elevating range of No. 1 arm	°	0-60
Elevating range of No. 2 arm	°	-83
Elevating angle of crank arm	°	-140
Platform swing angle	°	180
Slewing angle		360° discontinuous slewing
Gyration radius of turntable	m	0.875
Maximum mass	kg	230
Max. tail swing	m	0
Control system		12V DC proportional control
Tire		250-15 solid tire, 240/55 D17.5 optional, traceless tire can be selected
Power source		420 Ah/48 V DC
Power unit		4 kw/48 V DC
Auxiliary power unit		2.2 kw/24 V DC
Walking motor		3.3 kw/32 V AC

FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
