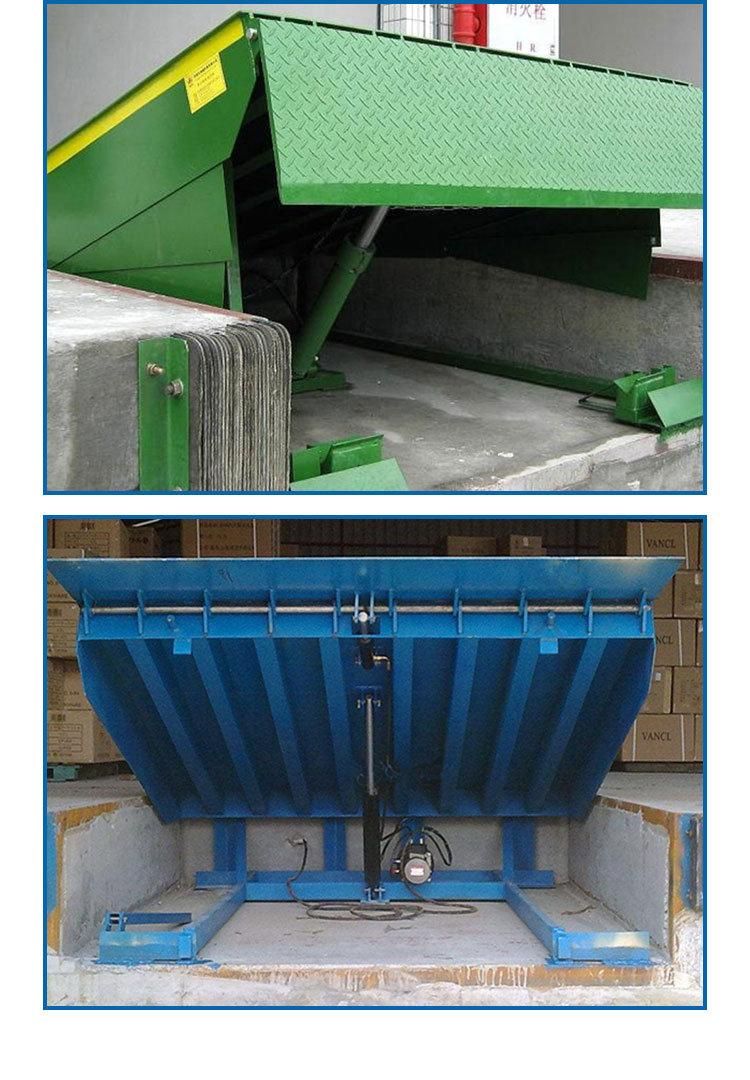

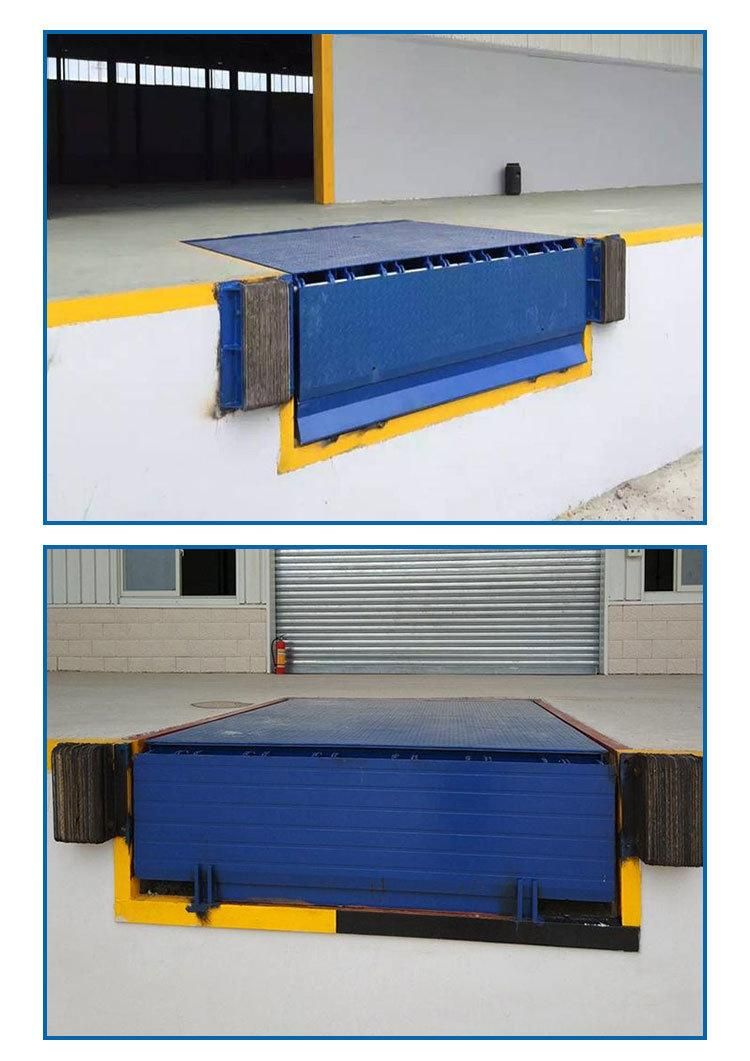

Automatic Pit Hydraulic Dock Leveler with Customized Sizes and Loading Capacity for Warehouse
Chi Hardware Corporation Limited- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Automatic
- Carrying Capacity：Special Weight Level
- Moves：Moving
- Driven Type：Hydraulic
- Running Mode：Stationary
Base Info
- Model NO.：CH-DL04
- Feature：Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Material：Steel
- Quality：Good
- Dlievery Time：on Time
- Transport Package：Woodern
- Specification：1860*2440*600
- Trademark：CHI
- Origin：Jiangsu, China
- HS Code：730890
- Production Capacity：1000
Description
All dimensions including width,length,height and lip length can be customized according to customer's demand.
6'x8'
1830(W)x2290(L)x490(H)
1870(W)x2280(L)x500(D)
6'x10'
1830(W)x2899(L)x490(H)
1870(W)x2889(L)x500(D)
6.5'x6'
1980(W)x1680(L)x490(H)
2020(W)x1670(L)x500(D)
6.5'x8'
1980(W)x2290(L)x490(H)
2020(W)x2280(L)x500(D)
6.5'x10'
1980(W)x2899(L)x490(H)
2020(W)x2889(L)x500(D)
7'x6'
2130(W)x1680(L)x490(H)
2170(W)x1670(L)x500(D)
7'x8'
2130(W)x2290(L)x490(H)
2170(W)x2280(L)x500(D)
7'x10'
2130(W)x2899(L)x490(H)
2170(W)x2889(L)x500(D)
| Name | Qty | Description | Remark |
| Upper Plate | 1 | 8 mm thickness | Baosteel |
| Swinging Lip | 1 | Single 16 mm thickness | Baosteel |
| Hinge | Few | ||
| Shaft | 2 | 28mm galvanized | |
| Foot Guard | 2 | Single galvanized,1.5 mm thickness | |
| Support Profile | 11 | L Steel Profile, 4 mm thickness | |
| Hydraulic unit | 1 | 750W, 380V, 50HZ; | |
| Control box | 1 | IP65, Monitor can display using times and DTCS, split control system , emergency stop | |
| Safety system | 1 | a)self-locking b)lip emergency stop |
