• Model NO.：GTBZ
• Feature：Explosion-Proof, Insulating
• Certification：CE, RoHS
• Load Capacity：300kg
• Platform Height：6m 8m 10m 12m
• Lift Method：Hydraulic
• Platform Size：2270*1150mm
• Voltage：110V 220V 240V
• Frequency：50Hz,60Hz
• Drive Power：DC Battery
• Lift Power：DC Battery
• Guardrail Height：1.1m
• Surface Treatment：Plastic Spray
• Safety Precaution 1：Anti Explosion Valve
• Certifications：CE
• Color：Red Yellow Blue Customized
• After-Sales Service：24 Hours Online Service or Engineers Available to
• Lifting Speed：4-6m,Min
• Transport Package：Standard
• Specification：4 CBM
• Trademark：PLK LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. GTBZ Feature Explosion-Proof, Insulating Certification CE, RoHS Load Capacity 300kg Platform Height 6m 8m 10m 12m Lift Method Hydraulic Platform Size 2270*1150mm Voltage 110V 220V 240V Frequency 50Hz/60Hz Drive Power DC Battery Lift Power DC Battery Guardrail Height 1.1m Surface Treatment Plastic Spray Safety Precaution 1 Anti Explosion Valve Certifications CE Color Red Yellow Blue Customized After-Sales Service 24 Hours Online Service or Engineers Available to Lifting Speed 4-6m/Min Transport Package Standard Specification 4 CBM Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 500 Sets/Month

Product Description

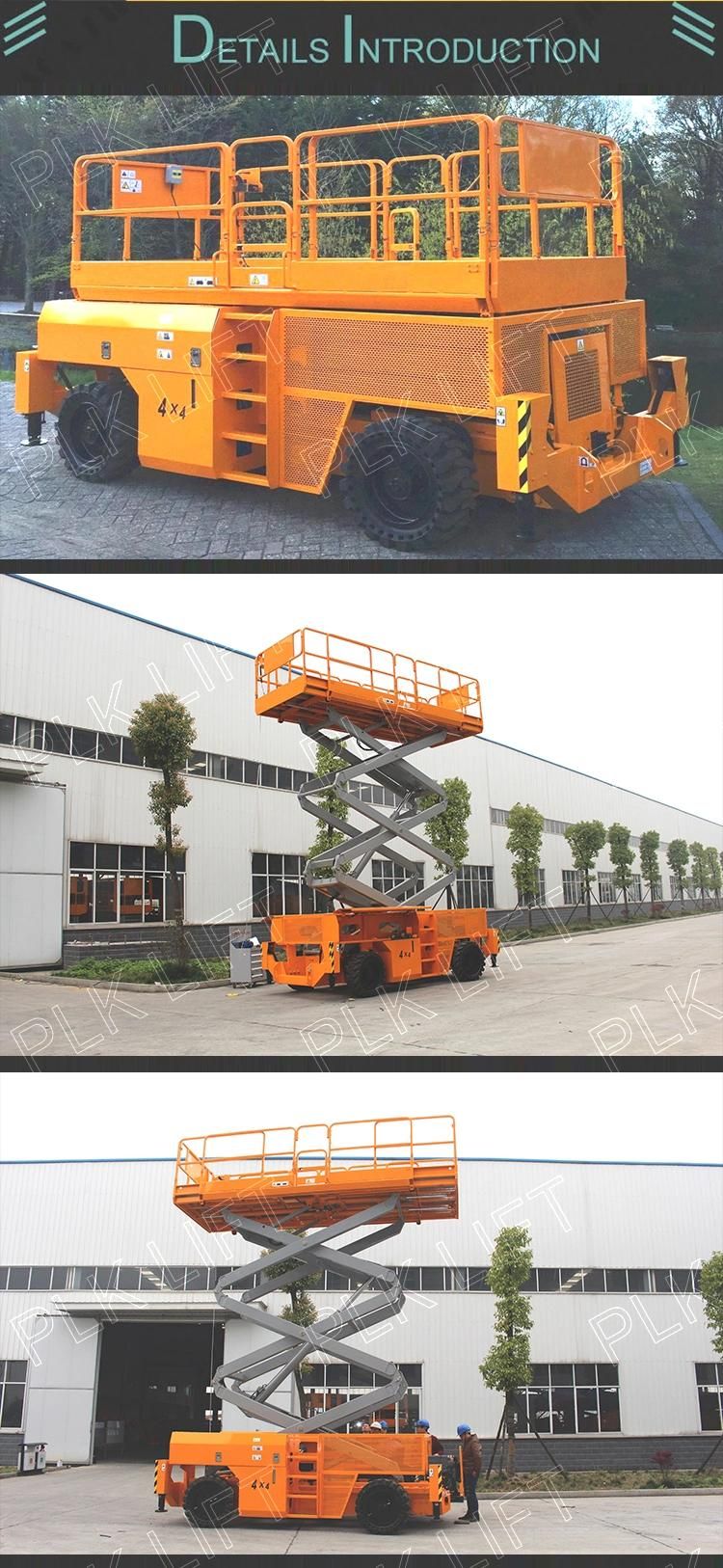

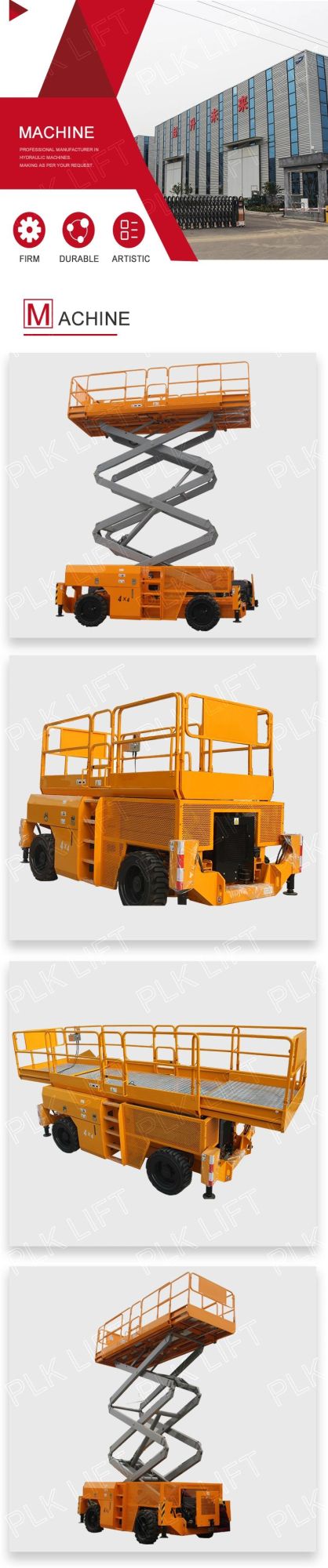

 High Quality Battery/Diesel Powered Rough Terrain Scissor LiftAerial Lift Platform equip high configuration with America TORJAN Battery, Americia CUITIS control system, Sweden bucher pump station, Italy doyle hydraulic valve and America white driving wheel. It is powered by DC, can be controlled by manually and move automatically and the moving speed is adjustable.
There is many safety precautions, for example, explosion-proof valves, spillover valve and emergency decline valve etc...

Features &Advantages:

• 1. Strong power: The diesel scissor lift has powerful power, and the four- wheel drive has strong climbing capacity. The scissors lift can shift high and low speeds.
• 2. Draggable engine tray: The engine is installed on the tray that can be dragged out, which facilitates maintenance and repair.
• 3. Active Oscillation Axle: Active oscillation axle can perceive the terrain, and can guarantee that the machine can land on four wheel even on uneven road without reducing the driving force.
• 4. Large working space: The maximum size of platform extended by cylinder forward double direction can reach 6.65*1.83m
• 5. Outrigger: The hydraulic outriggers can be used to level vehicles in case of operation on uneven ground.



Model Type No.	SP10D	SP13D	SP16D
Working Height Maximum	12 m	15 m	18 m
Platform Height Maximum	10 m	13 m	16 m
Lift capacity	1150 kg	680kg	680 kg
Lift capacity (extension deck)	230 kg	230kg	230 kg
Length	4.2/4.81m	4.2m /4.81m	4.2/4.81 m
Width	2.28 m	2.28m	2.28 m
Height(stowed)	2.81 m	3.03m	3.25 m
Wheel baseF	2.84m	2.84m	2.84 m
Ground clearance-center	0.23 m	0.23m	0.23 m
Platform measurement  *	3.95*1.83 m	3.95×1.83 m	3.95*1.83 m
Extension deck measurement	1.22m+1.52 m	1.22m + 1.52 m	1.22m+1.52 m
Turning radius inside /outside	2.78m /4.95 m	2.78m / 4.95 m	2.78m / 4.95 m
Travel speed(stowed)	6.3km/h	6.3km/h	6.3km/h
Travel speed(raised )	1.1km/h	1.1km/h	1.1 km/h
Grade ability	50%	50%	0.45
Sold tire	33×12-20	33×12-20	33×12-20
weight	6850kg	7350 kg	8850kg
Fuel tank volume	115L	115L	115L
Hydraulic tank volume	170L	170L	170L
Drive mode	4*4*2	4*4*2	4*4*2
Engine	Yanmar	Yanmar	Yanmar

Aerial Lift Platform moves and lifts all by battery power. Operator can control lifting, moving, turning and all movement on the platform through the control system.




Factory Show  Jinan PLK Machinery Co., Ltd located in Jinan City, Shandong Province, was established in 2003. In passed years, Jinan PLK has developed into a professional manufacturer of aerial working platform, lifting machine and material lift. PLK Machinery is committed to providing customers with best quality products and the professional services. Every year, we invest a lot of money in product renewal. High quality products and professional services make us a leader in the industry.
