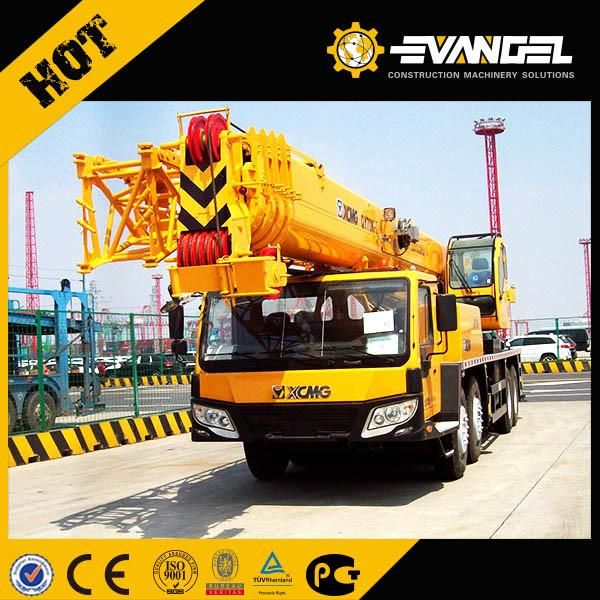

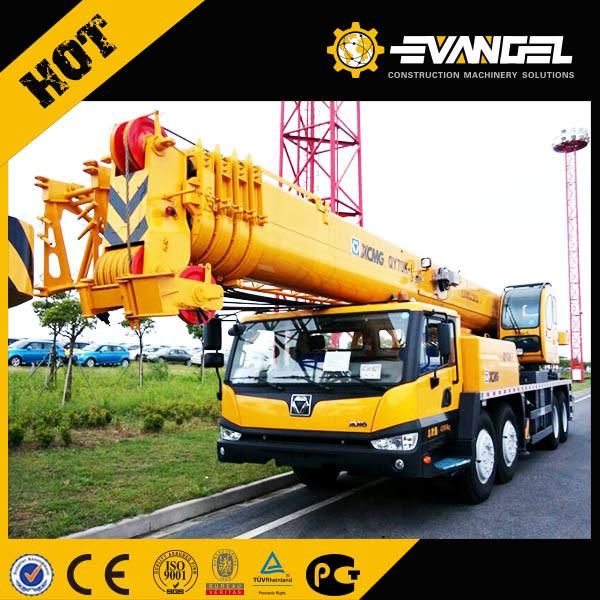

25 Ton Truck Mounted Crane Qy 25k-II
Evangel Industrial (Shanghai) Co., Ltd.- Total Weight in Travel：29400kg
- Engine Model：Shangchai Sc8dk280q3
- Rated Power：206,2200kw,(R,Min)
- Max. Travel Speed：75km,H
- Min. Turning Diameter：21.5m
- Max. Rated Total Lifting Capacity：25t
Base Info
- Model NO.：QY 25K-II
- Max. Lifting Torque：1010kn.M
- Boom Luffing Time：75s
- Transport Package：Nude Package, Attached Parts and Tools Into Standa
- Specification：12650*2500*3380mm
- Trademark：XCMG
- Origin：China, Jiangsu
- HS Code：87051091
- Production Capacity：1000
Description
Main performance
Max. rated total lifting capacity
T
25
Min. rated working radius
mm
3000
Turning radius at turntable tail
m
3.065
Max. lifting torque
kN.m
1010
Base boom
m
10.7
Fully extended boom
m
34.19
Fully extended boom+ jib
m
42.15
Longitudinal outrigger span
m
5.14
Lateral outrigger span
m
6
