9m Platform Height Single Mast Semi Electric Vertical Lift with Tilting Function

Chenlift (Suzhou) Machinery Co., Ltd.
  • After-sales Service：Can Post Spare Parts Within 1 Week
  • Warranty：One Year
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Lift Chain
  • Carrying Capacity：Middle-Level
  • Moves：Manual Pushing

Base Info

  • Model NO.：MT900-1
  • Driven Type：AC
  • Running Mode：Moving
  • Feature：Explosion-Proof
  • Certification：CE, ISO 9001
  • Max Platform Height：9.2 M
  • Max Working Height：11.2 M
  • Load Capacity：150 Kg
  • Platform Size：0.67*0.66m
  • Lift/Drive Motor：12V,0.75 Kw
  • Maximum Working Slope：1.5°,3°
  • Transport Package：Wrapped with Film, Packed in a Pallet, Wooden Case
  • Specification：1.4*0.74*1.99m
  • Trademark：CHEN LIFT
  • Origin：China
  • HS Code：8428909090
  • Production Capacity：3000 Units Per Year

Description

Model MX580SMX600SNMX800SNMX800SMX1000SMX1200SLoad230 kg230 kg230 kg450 kg320 kg230 kgExtension Load113 kg113 kg113 kg113 kg113 kg113 kgPlatform Height5.8 m6 m8 m8 m10 m11.8 mWorking Height7.8 m8 m10 m10 m12 m13.8 mPlatform Size1.67*0.74m2.27*0.81m2.27*0.81m2.27*1.12m2.27*1.12m2.27*1.12mPlatformExtension Length0.9 m0.9 m0.9 m0.9 m0.9 m0.9 mLift/Drive Motor24v/3.3 kw24v/3.3 kw24v/3.3 kw24v/3.3 kw24v/3.3 kw24v/4.5 kw Details
9m Platform Height Single Mast Semi Electric Vertical Lift with Tilting Function

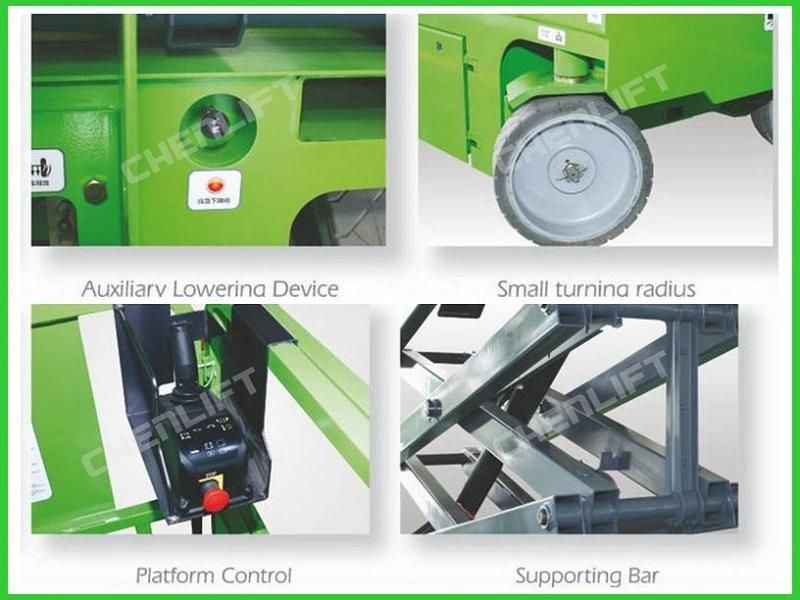

Safety Precaution
  • Auxiliary Lowering Devices
  • Anti-burst System
  • Emergency Stop Button
  • Tilting Protection System
  • Charging Protection System
  • Automatic Pothole Protection
  • Automatic Braking System
  • Buzzer and Horn
Factory Equipment
9m Platform Height Single Mast Semi Electric Vertical Lift with Tilting Function

Client &Exhibition
9m Platform Height Single Mast Semi Electric Vertical Lift with Tilting Function
Other Related Products
9m Platform Height Single Mast Semi Electric Vertical Lift with Tilting Function

Our Service
1. We can design the customized  machines based on your requirement.
2. After knowing your detailed needs, the right models will be recommened to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Operate video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
