Small Track Scissor Lift Man Lifting Crawler Lift
Jinan PLK Machinery Co., Ltd.- After-sales Service：Online, Free Parts
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：300kg
- Moves：Self-propelled
- Driven Type：DC
Base Info
- Running Mode：Moving
- Feature：Explosion-Proof, Insulating
- Certification：CE, RoHS
- Load Capacity：300kg
- Platform Height：6m 8m 10m 12m
- Lift Method：Hydraulic
- Platform Size：2270*1150mm
- Voltage：110V 220V 240V
- Frequency：50Hz,60Hz
- Drive Power：DC Battery
- Lift Power：DC Battery
- Guardrail Height：1.1m
- Surface Treatment：Plastic Spray
- Safety Precaution 1：Anti Explosion Valve
- Certifications：CE
- Color：Red Yellow Blue Customized
- Lifting Speed：4-6m,Min
- Transport Package：Standard
- Specification：4CBM
- Trademark：PLK LIFT
- Origin：China
- HS Code：8428909090
- Production Capacity：500sets
Description
ModelGTJZ-C6 GTJZ-C8 GTJZ-C10 GTJZ-C12 Max. Platform Height m 6 8 10 12 Max. Work Height m 8 10 12 14 Load Capacity kg 450 450 320 320 Load Capacity of Extendable Platform kg 113kg 113kg 113kg 113kg Platform Size-B*D mm 2270*1120 2270*1120 2270*1120 2270*1120 Extendable Platform Length-S mm 900 900 900 900 Minimum turning radius ° 0 0 0 0 Lifting Motor v/kw 48/2.2 48/2.2 48/2.2 48/2.2 Driving Motor v/kw 2*48/4 2*48/4 2*48/4 2*48/4 Driving Speed km/h 2 2 0.5 0.5 Up/Down Time sec 24/34 28/38 38/46 38/46 Battery V/Ah 8*6/225 8*6/225 8*6/225 8*6/225 Battery Charger V/A 48/25 48/25 48/25 48/25 Max Climbing Ability 30% 30% 30% 30% Max Working Angle 1.5°/3° 1.5°/3° 2°/3° 2°/3° Speed Ratio 1:40 1:40 1:40 1:40 Overall Length-L mm 2440 2440 2440 2440 Overall Width-W mm 1390 1390 1390 1390 Overall Height (Guard rail fold)-H1 mm 1765 1890 2015 2130 Overall Height (Guard rail unfold)-H2 mm 2275 2400 2525 2545 Overall Net Weight kg 2420 2610 2890 3080

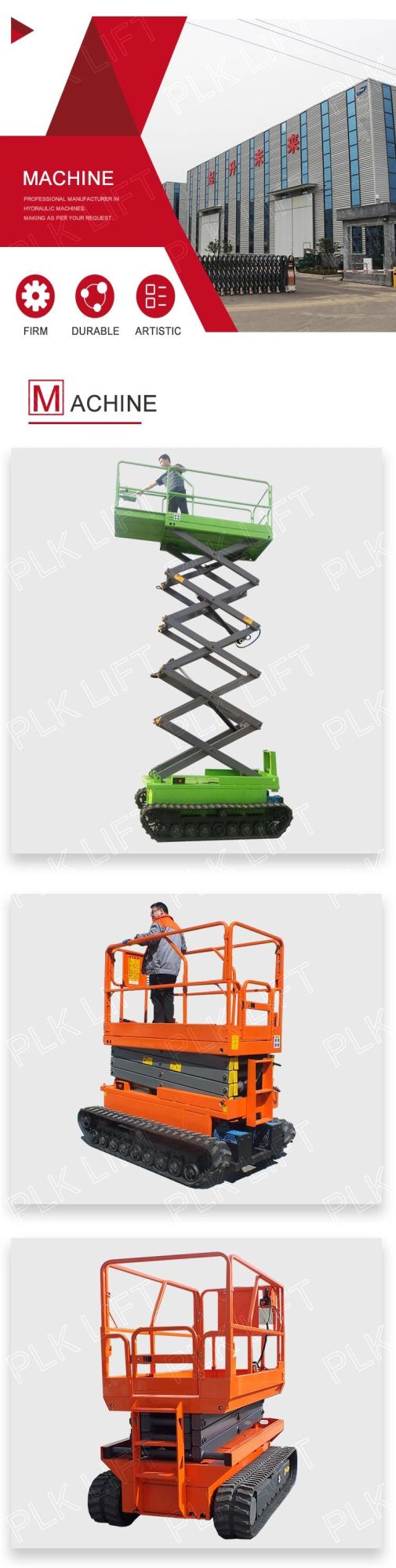

Aerial Lift Platform moves and lifts all by battery power. Operator can control lifting, moving, turning and all movement on the platform through the control system.
Factory Show Jinan PLK Machinery Co., Ltd located in Jinan City, Shandong Province, was established in 2003. In passed years, Jinan PLK has developed into a professional manufacturer of aerial working platform, lifting machine and material lift. PLK Machinery is committed to providing customers with best quality products and the professional services. Every year, we invest a lot of money in product renewal. High quality products and professional services make us a leader in the industry.
