Electric Articulating Boom Lifts |
Comply with CE/ANSI/GB Standard |

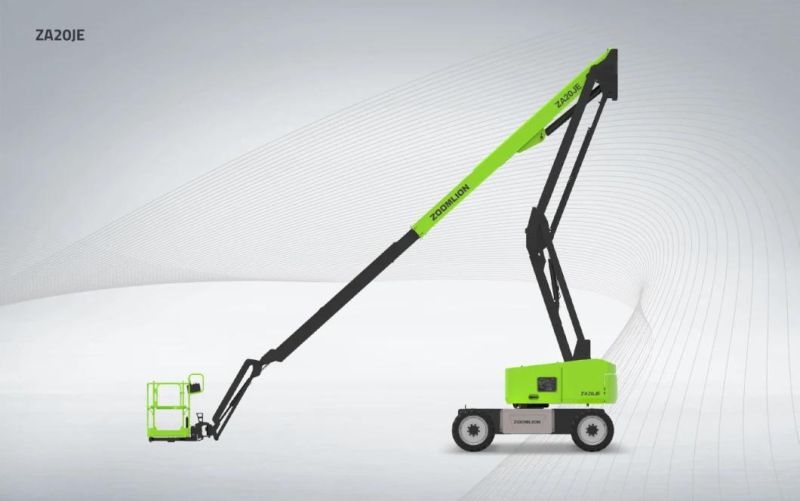

Model | ZA20JE | |
Size |
Work Height | 21.45m | |
Platform Height | 19.45m | |
Horizontal Outreach | 12.05m | |
Up and Over Height | 8.25m | |
A - Stowed Length | 8.72m | |
B - Stowed Width | 2.49m | |
C - Stowed Height | 2.56m | |
D - Platform Length | 1.83m | |
E - Platform Width | 0.76m | |
F - Wheelbase | 2.52m | |
G - Ground Clearance | 330mm | |
Performance |
Platform Capacity | 250kg | |
Drive Speed | 6.1km/h | |
Gradeability | 45% | |
Axles Oscillation | 200mm | |
Turning Radius (Inside) | 2.78m | |
Turning Radius (Outside) | 5.49m | |
Swing | Power |
Battery | 24×2V/440Ah | |
Charger | 48V/60A | |
Drive Motor | AC 32V | |
Lift Motor | AC 32V | |
Auxiliary Power | Tire |
Type | 33x12 D610 Foam-filled Tires | |
Weight |
Gross | 9200kg | |
Highlights |
Provide a work height of 21.50 m and lift capacity of 250 kg |
Fast lift system directly lowers the boom from the highest position to the ground without folding the boom |
Accurate and efficient traveling AC drive system and on-board motion AC drive system provide strong power, stable control and maintenance-free motor. |
Independent auxiliary power system for more secure applications |
Features |
Standard Features | Accessories & Options |
Proportional control | AC power to platform |
All motion alarm | Air line to platform |
Flashing amber beacon | 2.44×0.91m work platform |
Self-closing entry gate | Non-marking tire |
Emergency descent system | Platform work lights |
Emergency stop button |
Auto-leveling system |
On-board diagnostic system |
Over tilt protection system |
Oscillating axle |
Load sensing system |
4.3' LED display |
Horn |
|
|
|
|
