• Model NO.：HSY
• Maximum Lifting Height：12m
• Chain Falls：4
• Certification：CE, ISO9001:2000, TUV, SGS
• Condition：New
• Color：Orange
• Name：Hsy Electric Hoist
• Chain：G80
• Brake：Electromagnetic Brake
• Limiter：Yes
• Single Speed：Yes
• Cooling Fan：Yes
• Low Headroom Type：Available
• Trolley Type：Available
• Volt：220V-440V
• Transport Package：Wooden Case, Pallets, and So on
• Specification：CE, ISO, TUV
• Trademark：HUGO
• Origin：Shanghai
• HS Code：8425110000
• Production Capacity：60000 Sets,Month

Basic Info.

Model NO. HSY Maximum Lifting Height 12m Chain Falls 4 Certification CE, ISO9001:2000, TUV, SGS Condition New Color Orange Name Hsy Electric Hoist Chain G80 Brake Electromagnetic Brake Limiter Yes Single Speed Yes Cooling Fan Yes Low Headroom Type Available Trolley Type Available Volt 220V-440V Transport Package Wooden Case, Pallets, and So on Specification CE, ISO, TUV Trademark HUGO Origin Shanghai HS Code 8425110000 Production Capacity 60000 Sets/Month

Product Description

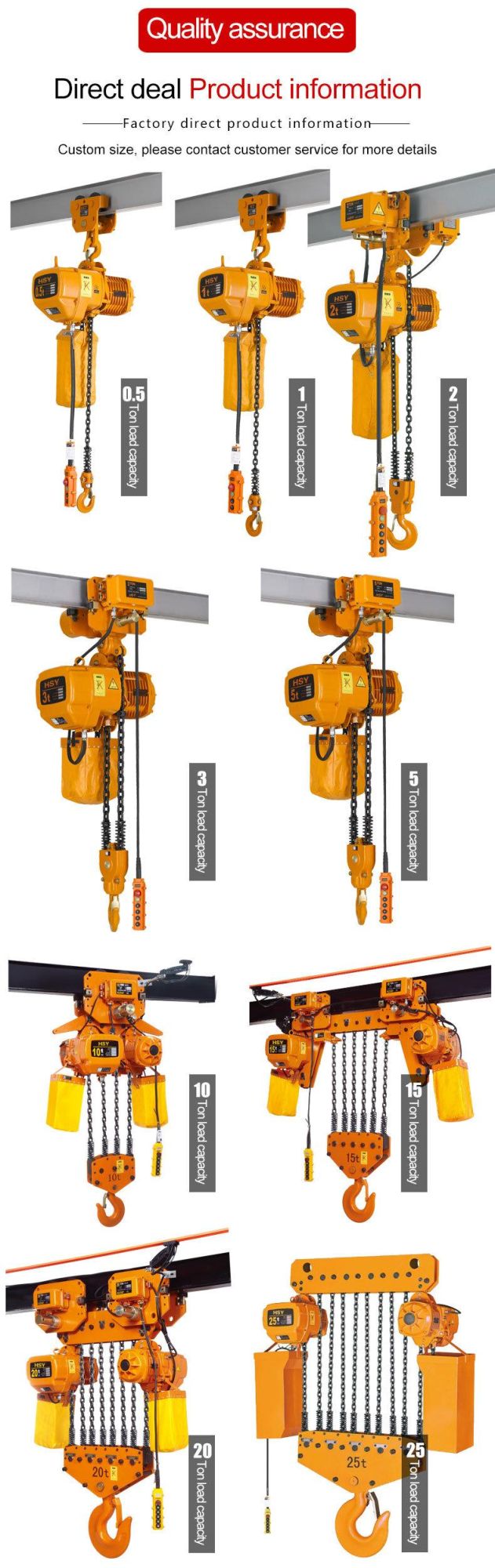

Hsy 380V remote electric chain hoist 2 ton

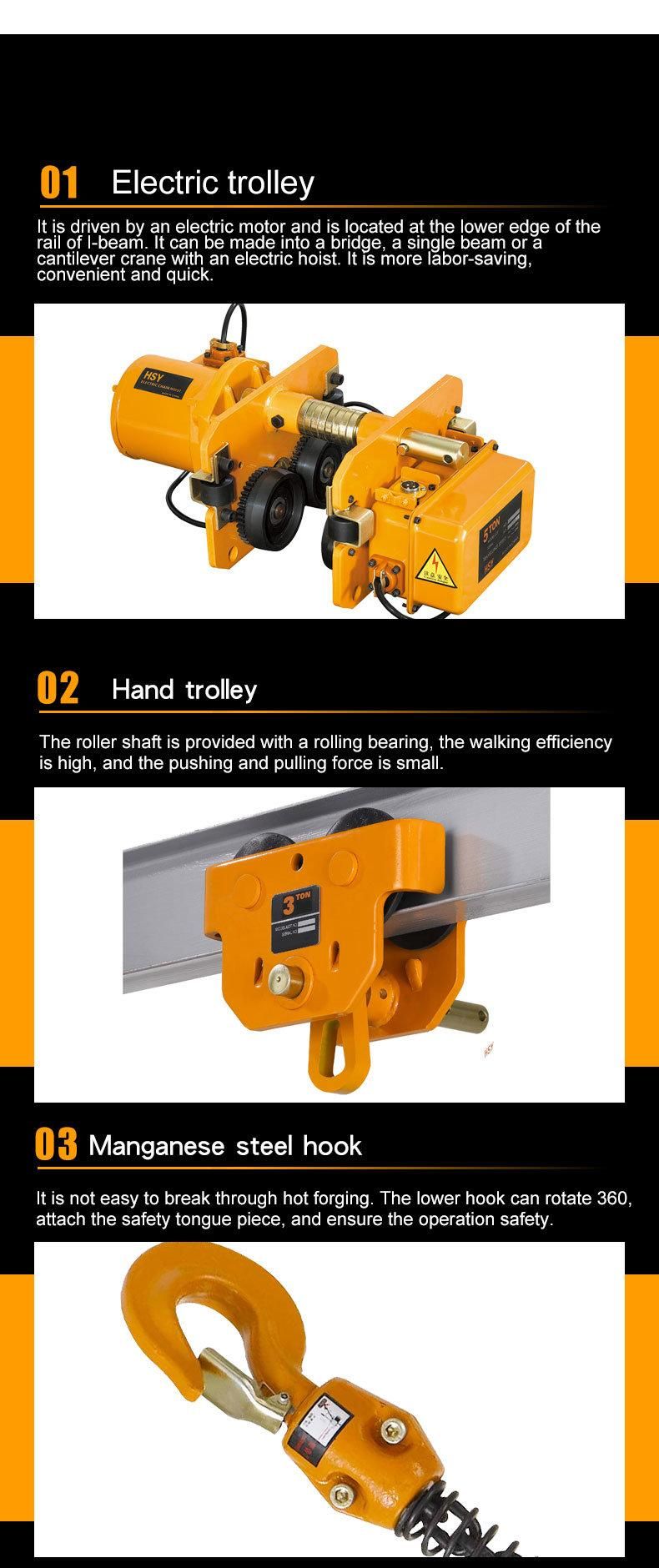

1. Hooks
Instructions of Latest Hot Selling!! Custom Design low clearance electric chain hoist with good prices

Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
2. Power
Operating voltage 220-440V, 50/60Hz, 1-3 phase.
Low voltage control 36V is standard.

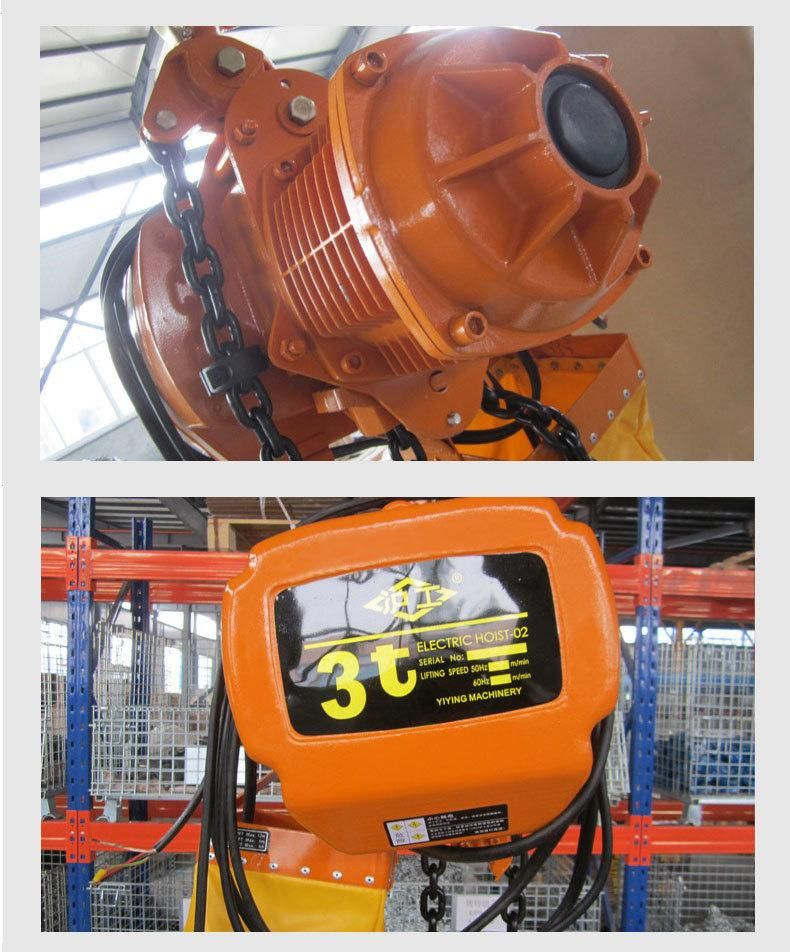

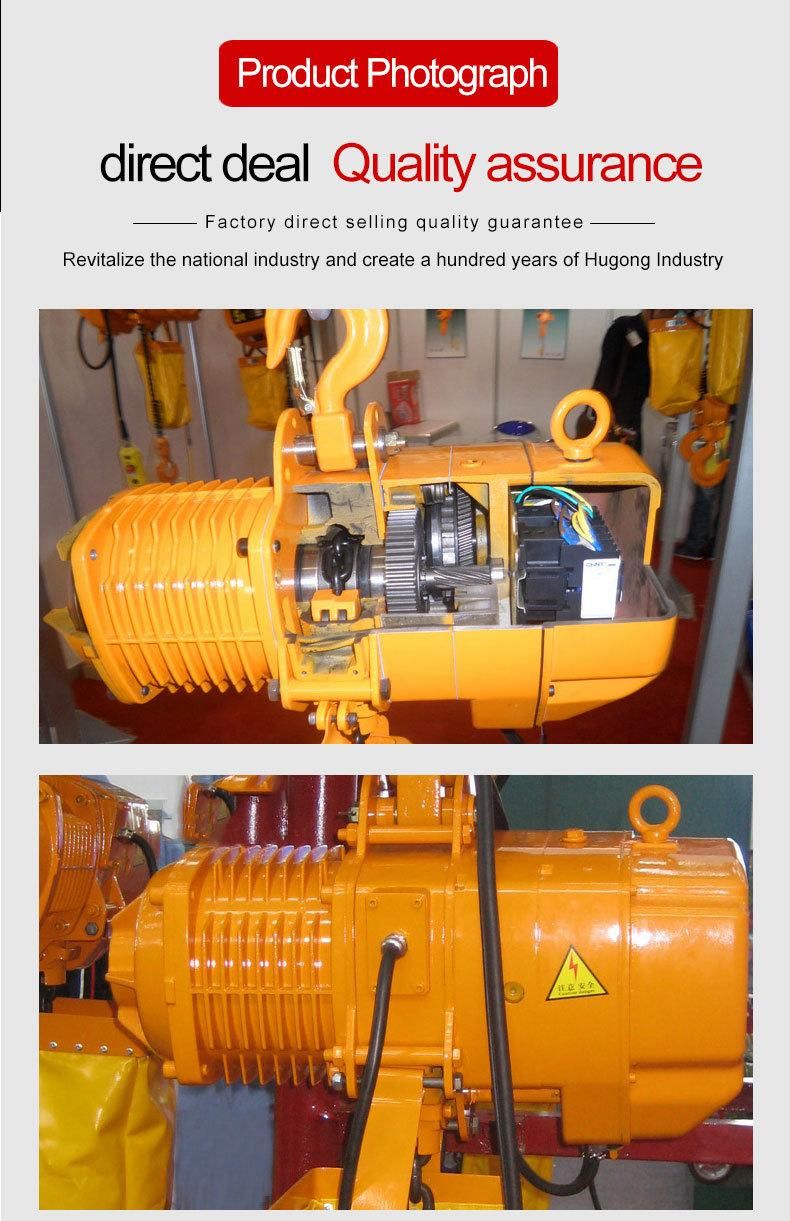

3. Motor
High efficient energy-saving motor, asbestos free brake system. 2-speed motor available.

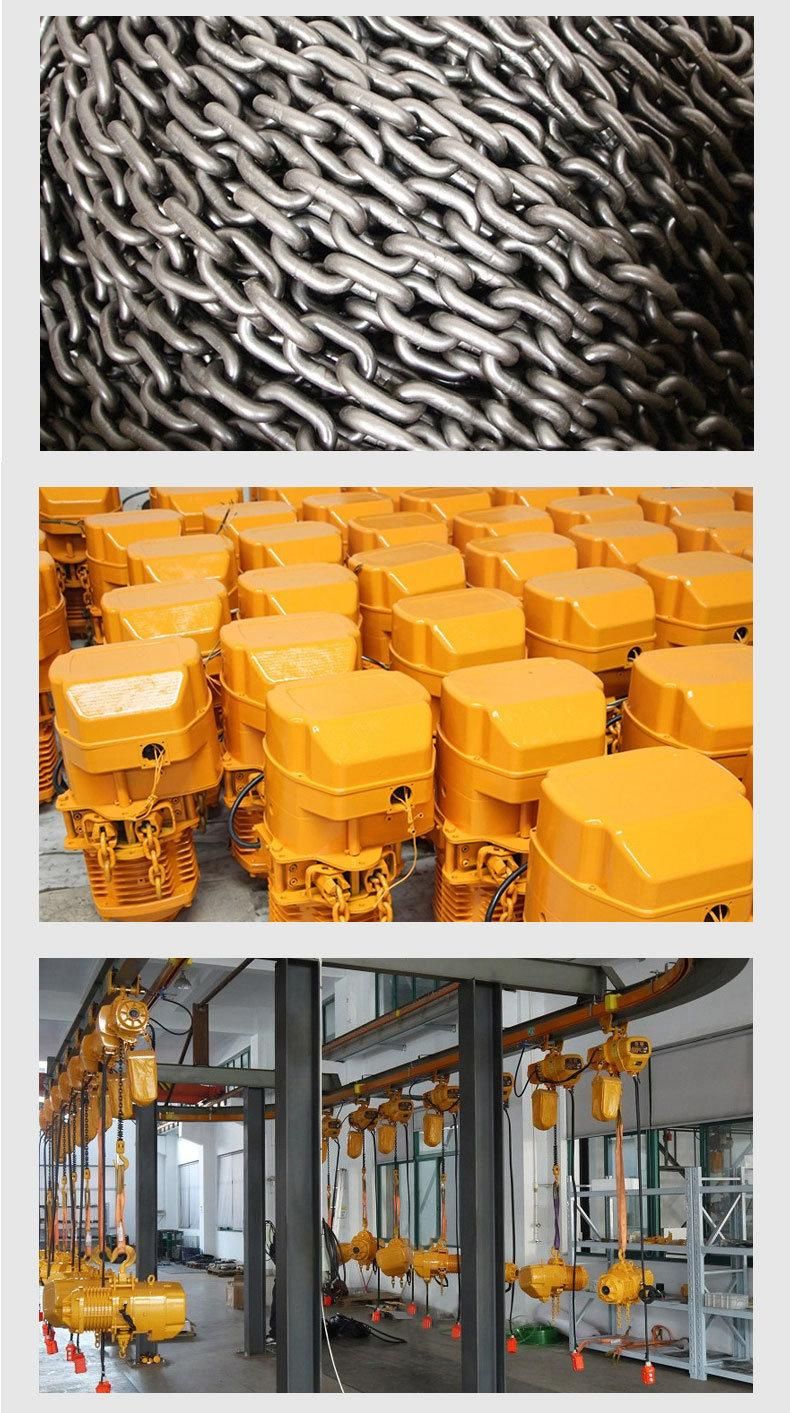

4. Chain
Alloy steel chain super strong surface hardened for optimum strength and wear resistance.
5. Chain Bucket
Solid chain bucket as standard part for safer operation
6. Limit Switch
Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.
7. Phase Error Relay
Phase error relay, a specially designed current-post, prevents motor from running at incorrect wire connection.

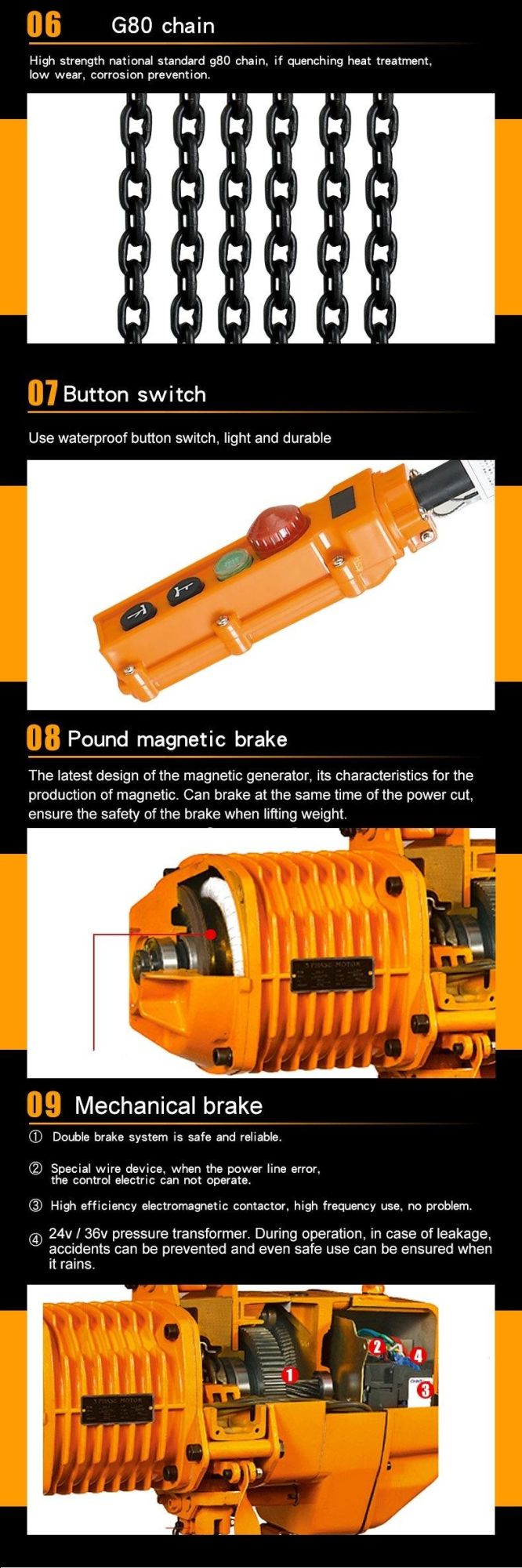

8. Pushbutton Swith
Pushbutton swith is rain-proof plastic for severe impact and corrosive atmosphere resistance and mechanically interlocked.
9. Safety Latches
Top and bottom hooks are fitted with safety latches as standard.

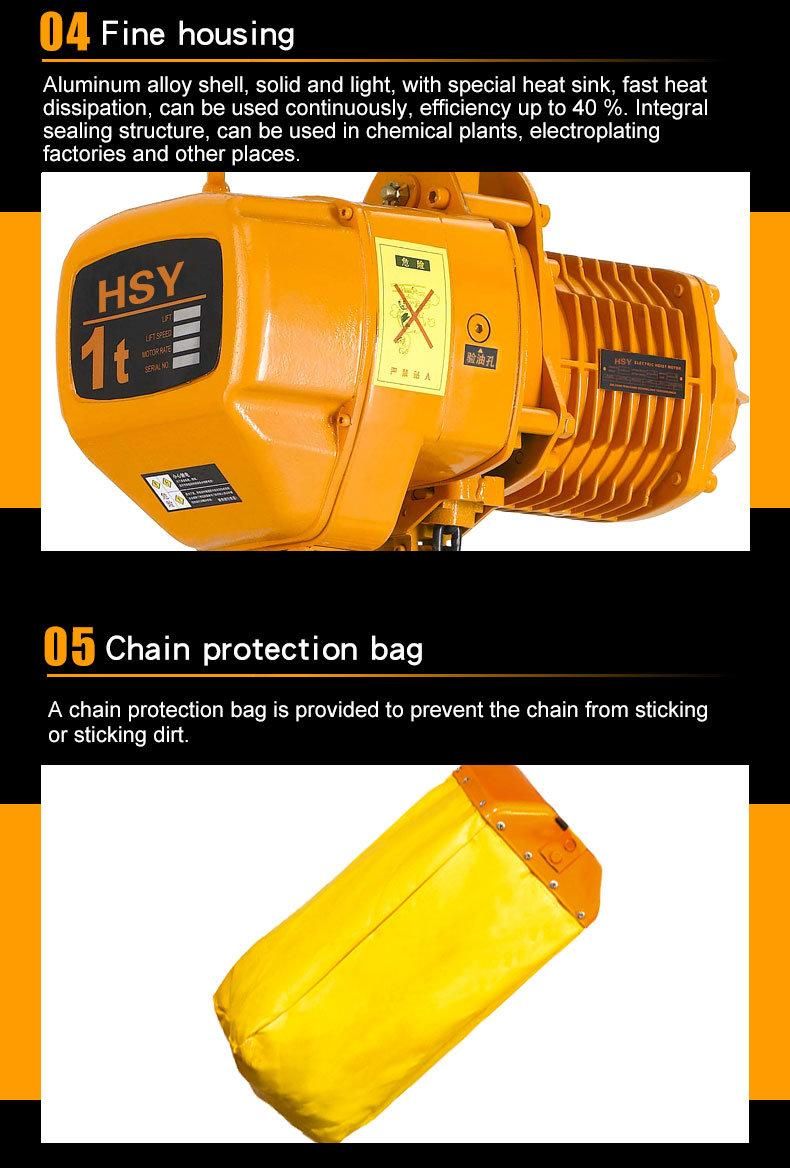

10. Light Wight
Light weight, compact and solid body case.
11. Push Button Control
Fits operator's hand operation. Impact and chemical atmosphere resistant.

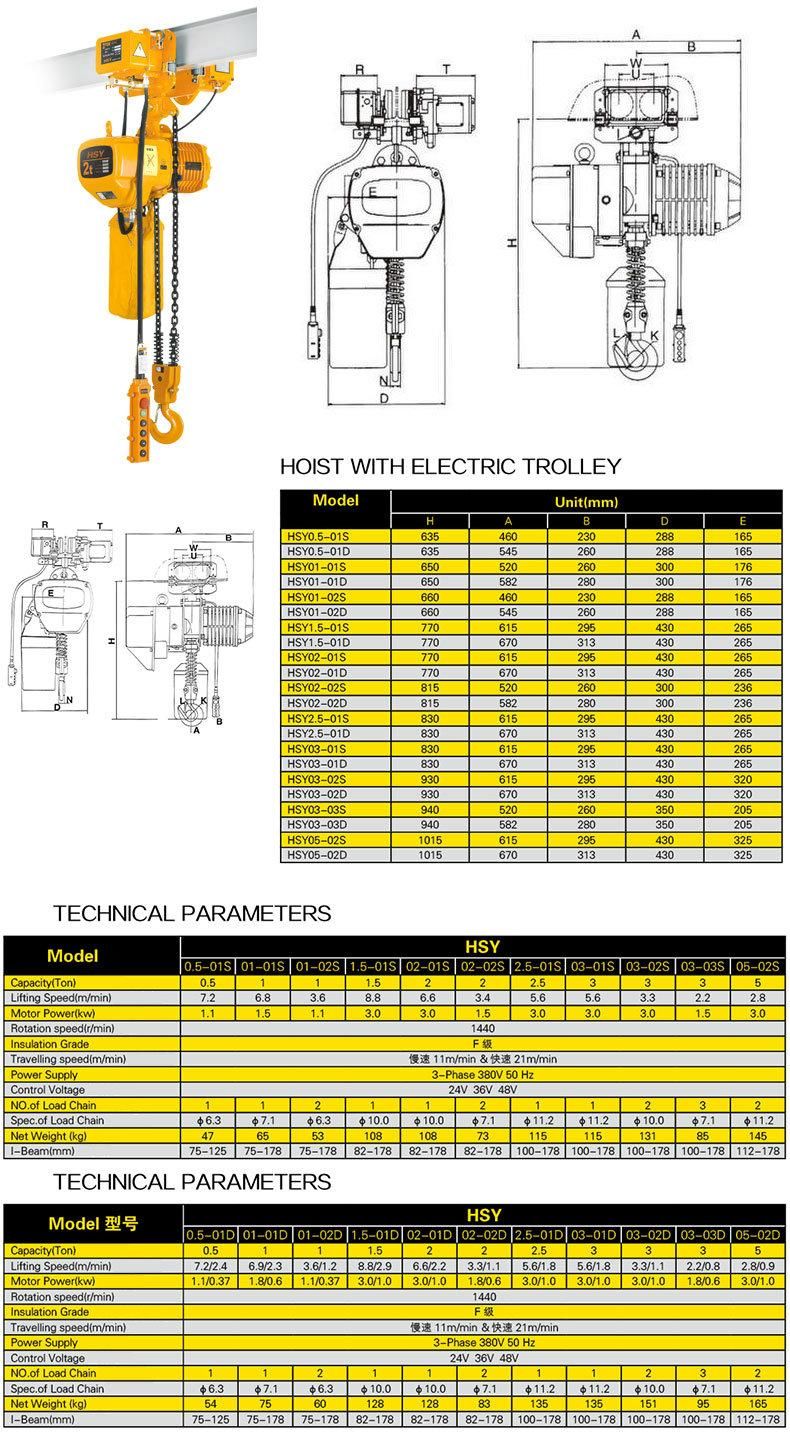

Spec. for electric hoist with electric trolley
