• Model NO.：QY20B. 5
• Power Source：Hydraulic
• Transport Package：Nude, Suitable for Shiping
• Specification：ISO, CE
• Origin：Jiangsu Xuzhou
• HS Code：84294019
• Production Capacity：1000sets,Month

Basic Info.

Model NO. QY20B. 5 Power Source Hydraulic Transport Package Nude, Suitable for Shiping Specification ISO, CE Origin Jiangsu Xuzhou HS Code 84294019 Production Capacity 1000sets/Month

Product Description

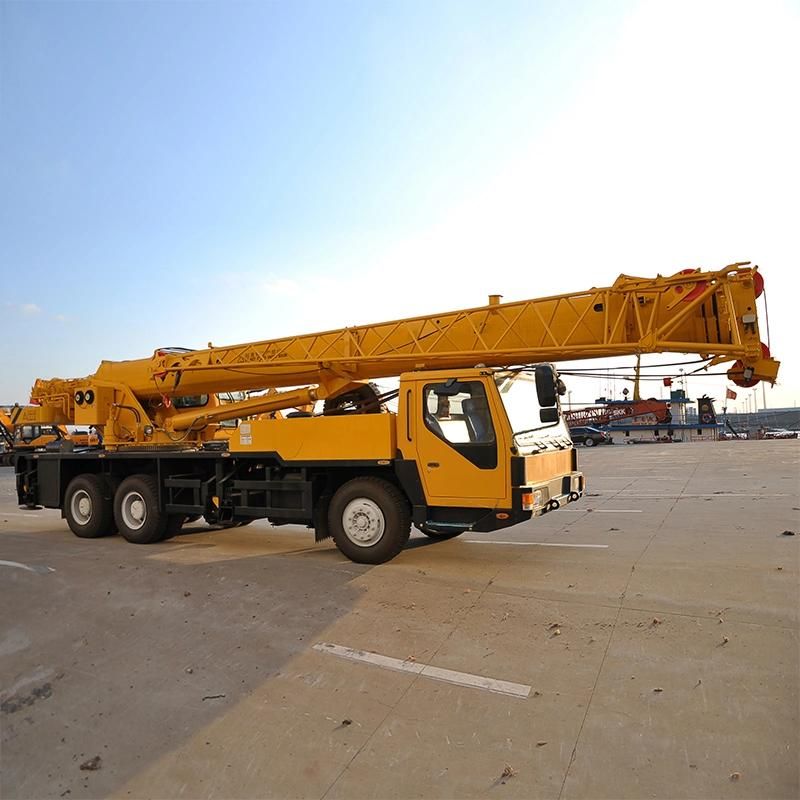

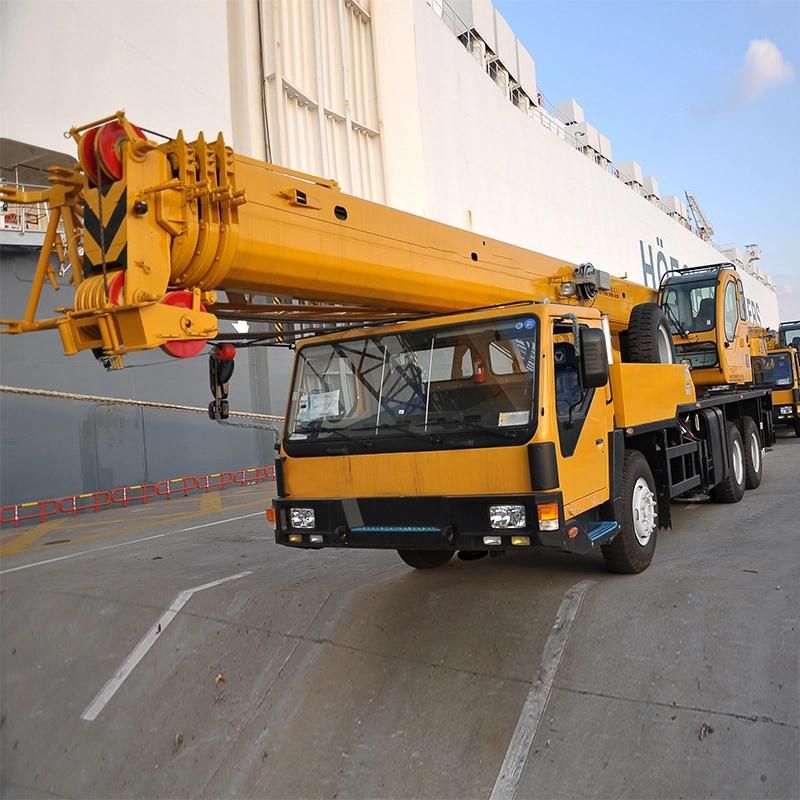

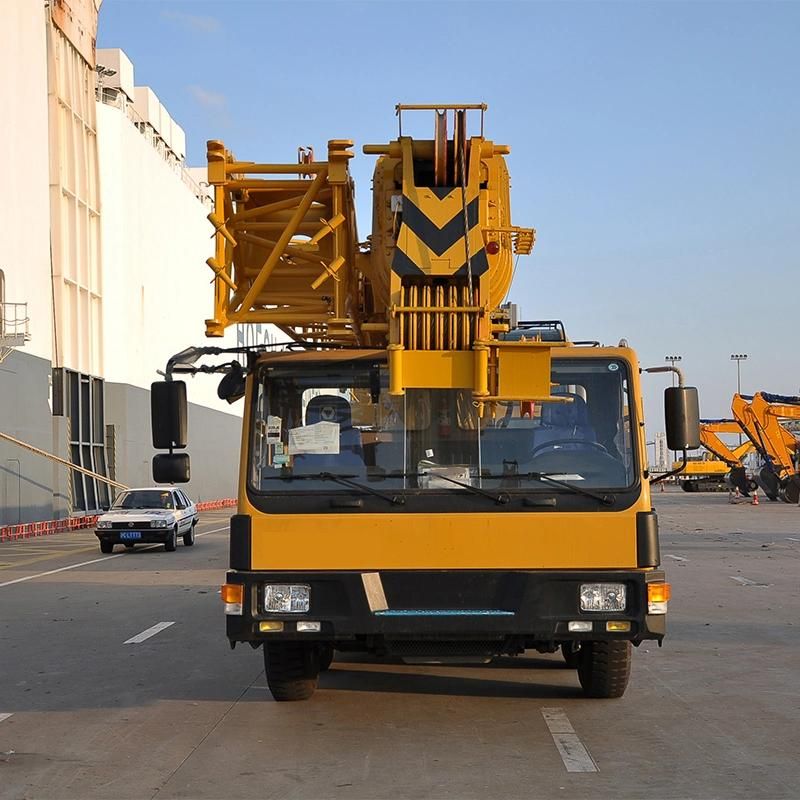

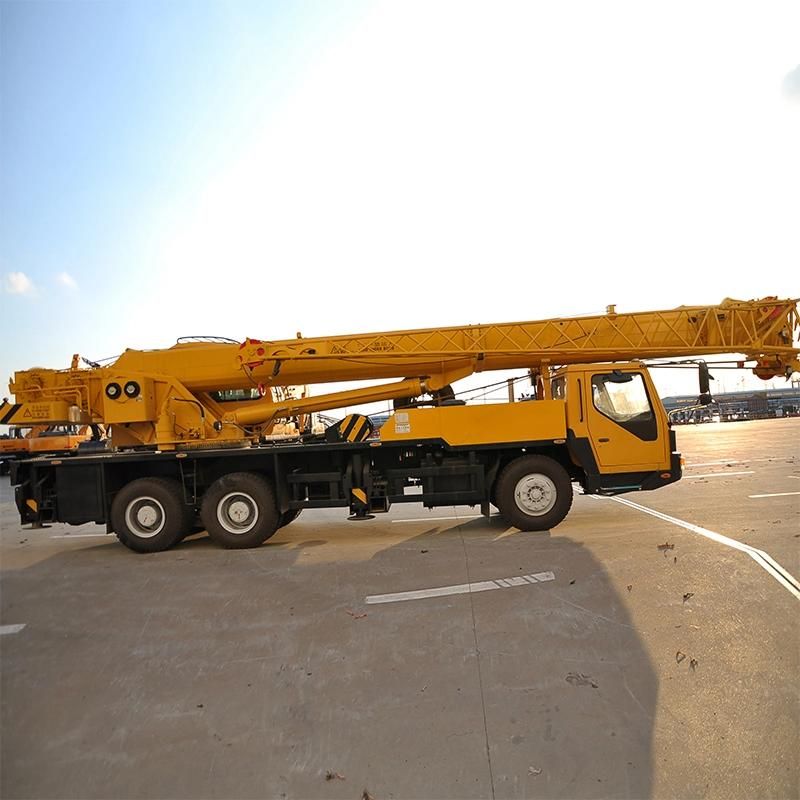

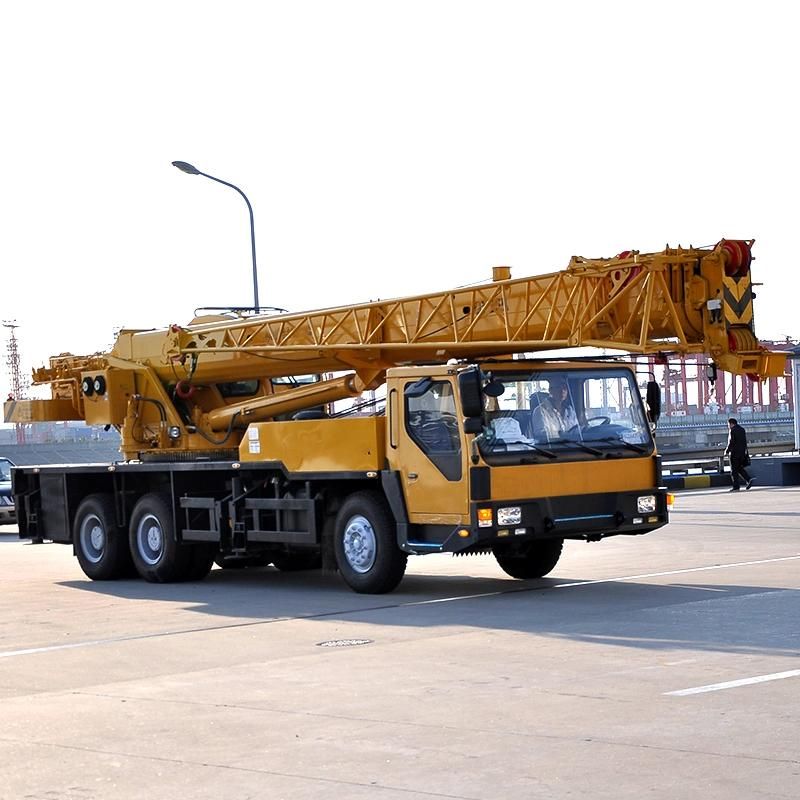

High Quality Cheap 20tons Mobile Truck Crane QY20B. 5

1. Rated Loading Capacity: 20ton
2. Engine: Shangchai

More excellent performance
The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage.
Apply the mature jib technique which integrates plug-in boom head, embedded boom block, and special telescoping mechanism, which makes the jib more stable and reliable.
Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability.
More reliable quality
Adopt the classic K series jib telescoping technique, working safer and more reliable.
Make the most complete safety device system in the industry, ensuring the lifting safer and more reliable.
The comprehensively upgraded brake system adopts double circuit air pressure design. Multiple systems ensure the brake safety of the truck during travel.
The new power steering mechanism adopts hydraulic power design, which makes the steering light, flexible, and precise, and ensures the safety of the truck.
The intensity and rigidity of the rotary table and frame structure with high rigidity are completely coordinated.
The perfect integration of the design and structure realizes the automation of welding, which is more reliable.
Easier to operate
The high efficient and energy efficient load sensing hydraulic system is sensitive to operate and precise to control, having good slight mobility.
Optimize the control levers, which is easier to operate.
The cab adopts orthodrome front windscreen, having wider operating views.

Dimension	Unit	QY20B.5
Overall length	mm	12400
Overall width	mm	2500
Overall height	mm	3300
Weight
Total weight in travel	kg	26020
Front axle load	kg	6900
Rear axle load	kg	19120
Power
Engine model		SC8DK260Q3, WD615.327
Engine rated power	kW/(r/min)	192/2200     198/2200
Engine rated torque	N.m/(r/min)	1100/1400     1150/1400
Travel
Max. travel speed	km/h	75
Min. turning diameter	m	20
Min. ground clearance	mm	270
Approach angle	°	21
Departure angle	°	11
Max. grade ability	%	35
Fuel consumption for 100km	L	≈35
Main performance
Max. rated total lifting capacity	t	20
Min. rated working radius	mm	3000
Turning radius at turntable tail	m	3.385
Max. lifting torque	kN.m	860
Base boom	m	10.06
Fully extended boom	m	32.76
Fully extended boom+jib	m	42.12
Longitudinal outrigger span	m	4.97
Lateral outrigger span	m	5.4
Working speed
Boom luffing time	s	75
Boom full extension time	s	95
Max. swing speed	r/min	3
Max. speed of main winch (single rope)	m/min	100
Max. speed of aux. winch (single rope)	m/min	100
