• Model NO.：HCH
• Lift Speed：2~8m,min
• Maximum Lifting Height：>20m
• Chain Falls：1
• Certification：CE, ISO9001:2000, TUV, SGS
• Condition：New
• Color：as Your Wish
• Name：Stage Electric Chain Hoist
• Factory：More Than 20 Years Manufacture Experience
• Brand Name：Hugo
• Hook：Forged
• Deliverity Time：About 15 Days
• Loading Port：Shanghai Port Tianjin Port
• Place of Original：China( Shanghai)
• Lifting Speed：8m,Min
• After-Sales Service Provided：Overseas Services Provided
• Color of Chain：Black
• Transport Package：Packing by Carton, Woodon Case
• Specification：CE, ISO, TUV, SGS
• Trademark：HUGO
• Origin：China-Shanghai
• HS Code：8425110000
• Production Capacity：100000PC,Month
• Package size per unit product：61.00cm * 49.00cm * 72.00cm
• Gross weight per unit product：97.000kg

Basic Info.

Model NO. HCH Lift Speed 2~8m/min Maximum Lifting Height >20m Chain Falls 1 Certification CE, ISO9001:2000, TUV, SGS Condition New Color as Your Wish Name Stage Electric Chain Hoist Factory More Than 20 Years Manufacture Experience Brand Name Hugo Hook Forged Deliverity Time About 15 Days Loading Port Shanghai Port Tianjin Port Place of Original China( Shanghai) Lifting Speed 8m/Min After-Sales Service Provided Overseas Services Provided Color of Chain Black Transport Package Packing by Carton, Woodon Case Specification CE, ISO, TUV, SGS Trademark HUGO Origin China-Shanghai HS Code 8425110000 Production Capacity 100000PC/Month

Packaging & Delivery

Package size per unit product 61.00cm * 49.00cm * 72.00cm Gross weight per unit product 97.000kg

Product Description

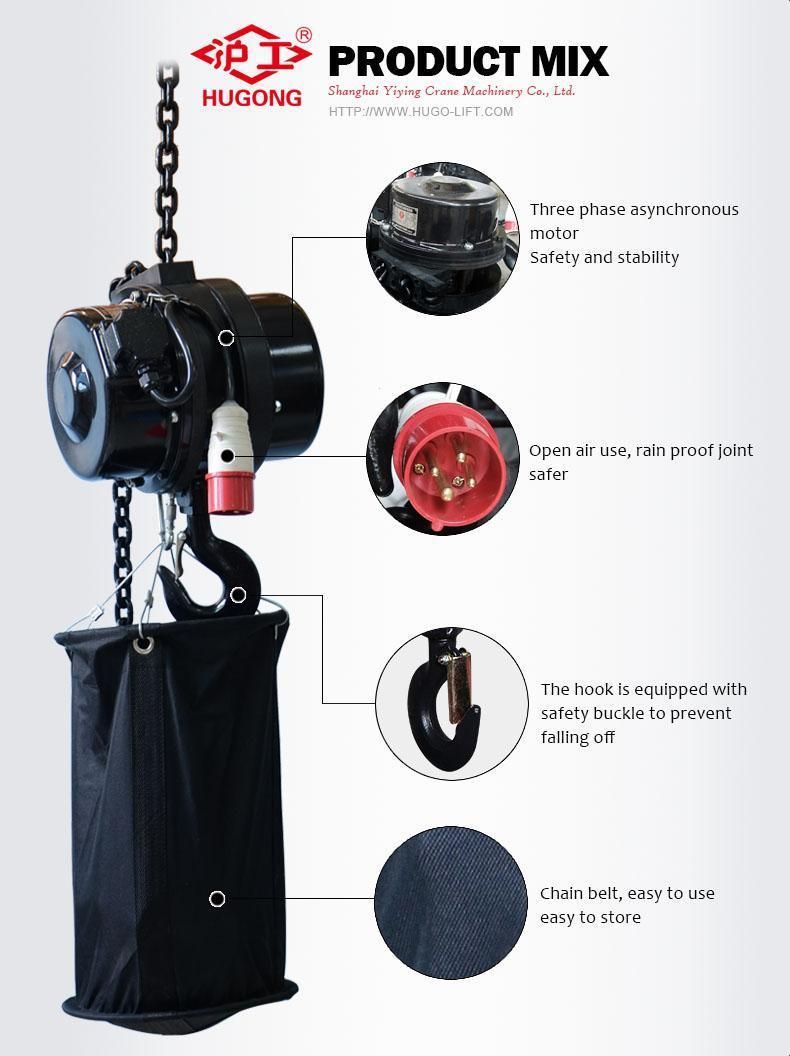

220V 1ton truss hoist stage hoist electric chain hoist

The detail information of High Quality Best Safty Stage Electric Chain Hoist





1) 2m/min for single chain
2) symmetrical structure
3) rain-proof design
4) steel-made cover
5) Friction overload protection
6)36V indirect control
7) limit switch of screw tpye
8) 100% test before assembling and loading
9) Warranty: 1 Year
This powerful newly develop brake system responds instantly and supplies dependable positive braking power. An extremely ling, service life has been achieved with the use of non-asbestos brake linings. This brake system was tested more than 22500 times at the factory without adjustments.

Capacity(KG)	Model	Power(kw)	No. of load  chain	Lift speed (m/min)	Weight of hoist  without load chain(kg)	Weight of Load  chain(Kg/m)
500	M6-W0.5A	0.42	1	4	30	1.1
500	M6-W0.5B	0.86	1	8	48	1.1
500	M6-W0.5C	0.83	1	4	48.5	1.1
1000	M6-W1A	1.5	1	8	50	1.1
1000	M6-W1B	0.86	2	2	52	2.2
2000	M6-W2A	1.5	2	4	54	2.2
2000	M6-W2B	1.5	1	16	50	1.1
