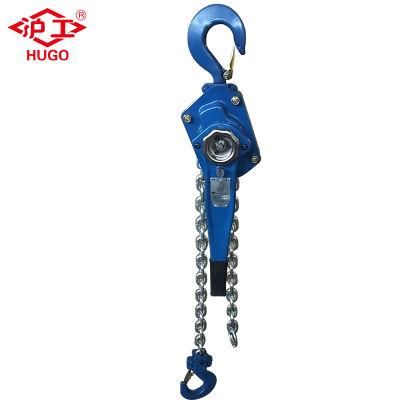

3t Va Type Manual Lever Hoist with Ce TUV
Shanghai Yiying Crane Machinery Co., Ltd.- Application：Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
- Type：Lever Hoist
- Sling Type：Chain
- Lift Speed：2~8m,min
- Maximum Lifting Height：3m
- Chain Falls：1
Base Info
- Model NO.：VA
- Certification：CE, ISO9001:2000
- Condition：New
- Color：Blue
- Product：3t Va Type Manual Lever Hoist with Ce TUV
- Lifting Height：3-9m
- Capacity：0.75ton-30ton
- Breaking Load：4,1
- Safety Load：2.5,1
- Packing Size：21*17*25cm as 1 Ton 3 Meters
- Transport Package：Carton
- Specification：manual hoist
- Trademark：hugo
- Origin：China
- HS Code：8425190000
- Production Capacity：5000pieces,Month
Description
Model
0.75Ton
1.5Ton
3Ton
6Ton
Capacity t
0.75
1.5
3
6
Standard Lift m
1.5
1.5
1.5
1.5
Running test load t
9.2
18.4
36.8
73.5
Effort required to lift max load N
148
216
336
345
Load lift diameter mm
6.3
7.1
9
9
Net weight kg
6.6
11.65
21.1
23.7
Dimensions mm
A
155
170
198
198
B
128
147
182
230
C
310
350
470
590
D
240
365
365
365
G
28
36
47
49
