• Model NO.：deyuan
• Running Mode：Stationary
• Certification：CE, ISO 9001
• Standard：National Standards
• Driven Mode：Electric Operated
• Chain Size：12.5mm to 120mm
• Transport Package：1sets Per Wooden Case
• Specification：CCS, BV, GL.
• Trademark：Deyuan
• Origin：China
• Production Capacity：60sets Per Month

Basic Info.

Model NO. deyuan Running Mode Stationary Certification CE, ISO 9001 Standard National Standards Driven Mode Electric Operated Chain Size 12.5mm to 120mm Transport Package 1sets Per Wooden Case Specification CCS, BV, GL. Trademark Deyuan Origin China Production Capacity 60sets Per Month

Product Description

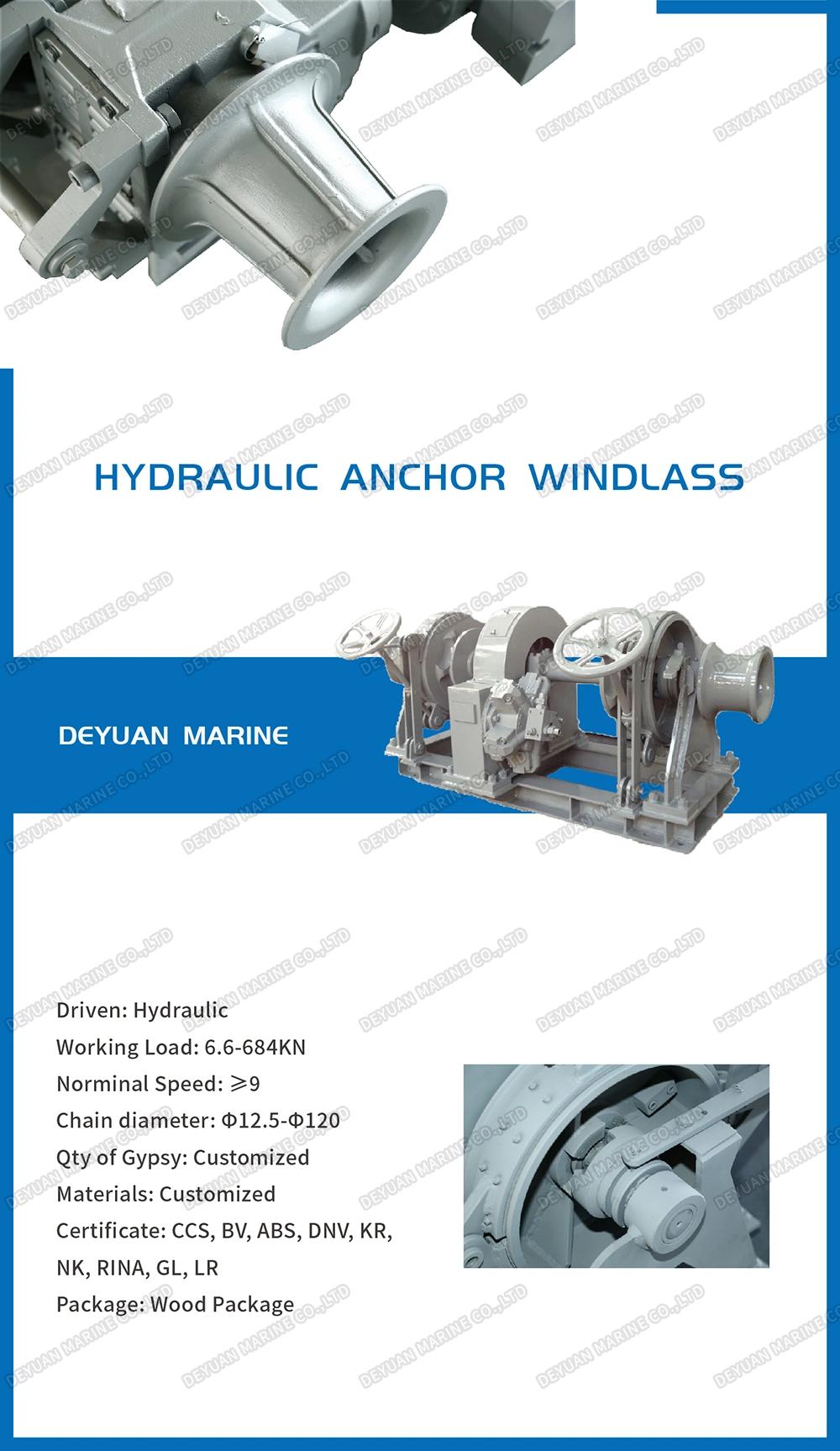

Marine Electric Driven Single gypsy Anchor Windlass With Warping End


China Deyuan Marine Fitting Co., Ltd is a professional supplier of marine deck equipment, we can offer marine hydraulic steering gear, anchor windlass, marine mooring rope capstan, marine winches. Class certificate such as CCS, ABS, DNV, BV, RINA are available, our products are in good quality with very compectitive price. If you are interested, pls feel free to contact us at any time.

Anchor Windlass Features:
1) Drive: Electric / hydraulic
2) Configuration: Single in vertical / horizontal arrangement / double Gypsies in horizontal
3) Chain size: 12.5mm to 120mm
4) Chain speed: Complying with ISO requirements
5) Clutch: Manually operated dog clutch
6) Brake: Manually and hydraulic operated band brake




(mm)	AM2/AM3(KN)	(m/min)	(KW)
Φ12.5	6.6	≥9	2.2/0.75
Φ14	8.3	≥9	2.2/0.75
Φ16	10.9	≥9	3/1.2
Φ17.5	13.0/14.6	≥9	4.3/1.7
Φ19	15.3/17.2	≥9	4.3/1.7
Φ20.5	17.9/20.0	≥9	6/2.5
Φ22	20.6/23.0	≥9	6/2.5
Φ24	24.5/27.4	≥9	7.5/7.5/5
Φ26	28.7/32.1	≥9	7.5/7.5/5  8.5/3.5
Φ28	33.3/37.2	≥9	8.5/3.5  11/11/7.5
Φ30	38.3/42.8	≥9	11/11/7.5
Φ32	43.5/48.6	≥9	11/11/7.5  16/16/11
Φ34	49.1/54.9	≥9	16/16/11
Φ36	55.1/61.6	≥9	16/16/11
Φ38	61.4/68.9	≥9	16/16/11  22/22/16
Φ40	68.0/76.0	≥9	22/22/16
Φ42	75.0/83.8	≥9	22/22/16
Φ44	82.3/92.0	≥9	22/22/16 30/30/22
Φ46	89.9/100.5	≥9	22/22/16 30/30/22
Φ48	97.9/109.4	≥9	22/22/16 30/30/22
Φ50	106.3/118.8	≥9	30/30/22
Φ52	114.9/128.4	≥9	30/30/22
Φ54	123.9/138.5	≥9	30/30/22  45/45/30
Φ56	133.3/149.0	≥9	30/30/22  45/45/30
Φ58	143.0/159.8	≥9	45/45/30
Φ60	153.0/171.0	≥9	45/45/30
Φ62	163.4/182.6	≥9	45/45/30
Φ64	174.1/194.6	≥9	45/45/30
Φ66	185.1/206.9	≥9	45/45/30  60/60/45
Φ68	196.5/219.6	≥9	45/45/30  60/60/45
Φ70	208.3/232.8	≥9
Φ73	226.5/253.1	≥9	60/60/45
Φ76	245.5/274.4	≥9	60/60/45
Φ78	258.6/289.0	≥9	60/60/45  75/75/36
Φ81	311.7	≥9	75/75/36
Φ83	327.2	≥9	75/75/36
Φ84	335.2	≥9	75/75/36
Φ85	343.2	≥9	75/75/36  90/90/60
Φ87	359.5	≥9	90/90/60
Φ90	384.8	≥9	90/90/60
Φ92	402	≥9	90/90/60
Φ95	428.7	≥9	90/90/60  120/120/90
Φ97	446.9	≥9	90/90/60  120/120/90
Φ100	475	≥9	120/120/90
Φ102	494.2	≥9	120/120/90
Φ105	523.7	≥9	120/120/90
Φ107	543.8	≥9	120/120/90
Φ111	585.3	≥9	120/120/90  180/180/120
Φ112	595.8	≥9	120/120/90  180/180/120
Φ114	617.3	≥9	180/180/120
Φ117	650.2	≥9	180/180/120
Φ120	684	≥9	180/180/120





If you are interested in our products or have any questions, please feel free to contact us for more details.
Deyuan Marine has been waiting for your contact.
