• Moves：Moving
• Driven Type：Hydraulic
• Running Mode：Moving
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Lift Weight：150kgs 200kgs 350kgs 500kgs
• Lift Height：0.72m 0.9m 1.22m 1.3m 1.5m 2m

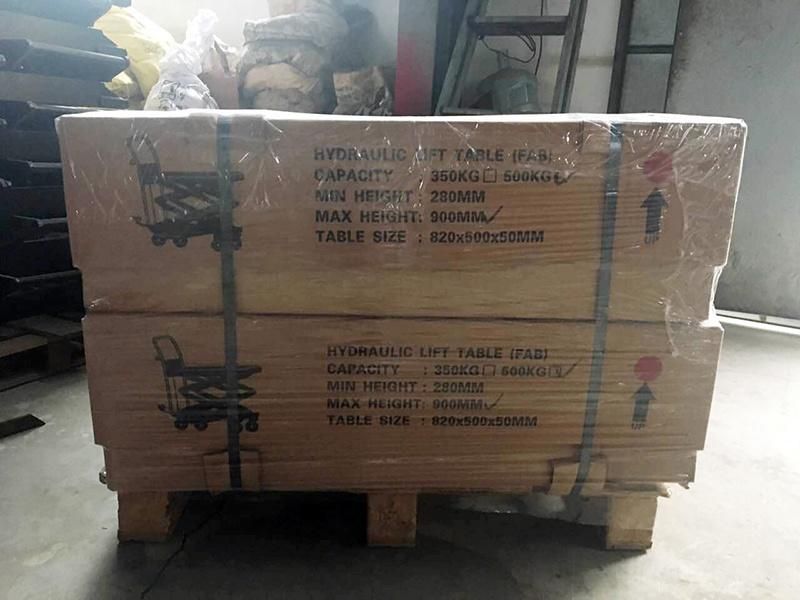

• Transport Package：Carton
• Specification：packing size 83*47*27cm for 150kgs 1220mm
• Trademark：HUGO
• Origin：Shanghai, China
• HS Code：8427900000
• Production Capacity：30pieces,Day

Basic Info.

Moves Moving Driven Type Hydraulic Running Mode Moving Feature Explosion-Proof Certification CE, ISO 9001 Lift Weight 150kgs 200kgs 350kgs 500kgs Lift Height 0.72m 0.9m 1.22m 1.3m 1.5m 2m Transport Package Carton Specification packing size 83*47*27cm for 150kgs 1220mm Trademark HUGO Origin Shanghai, China HS Code 8427900000 Production Capacity 30pieces/Day

Product Description

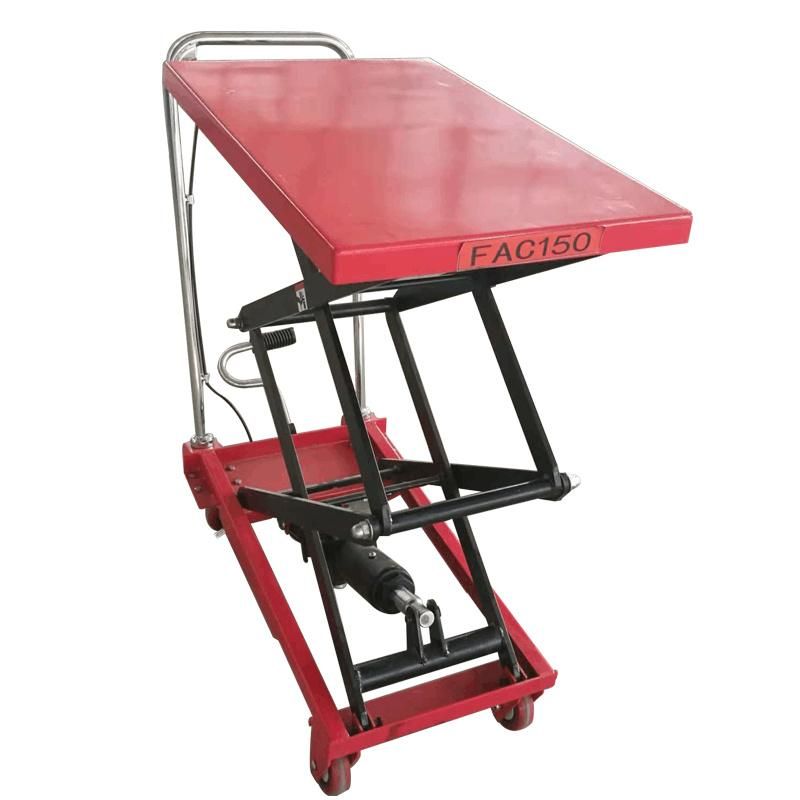

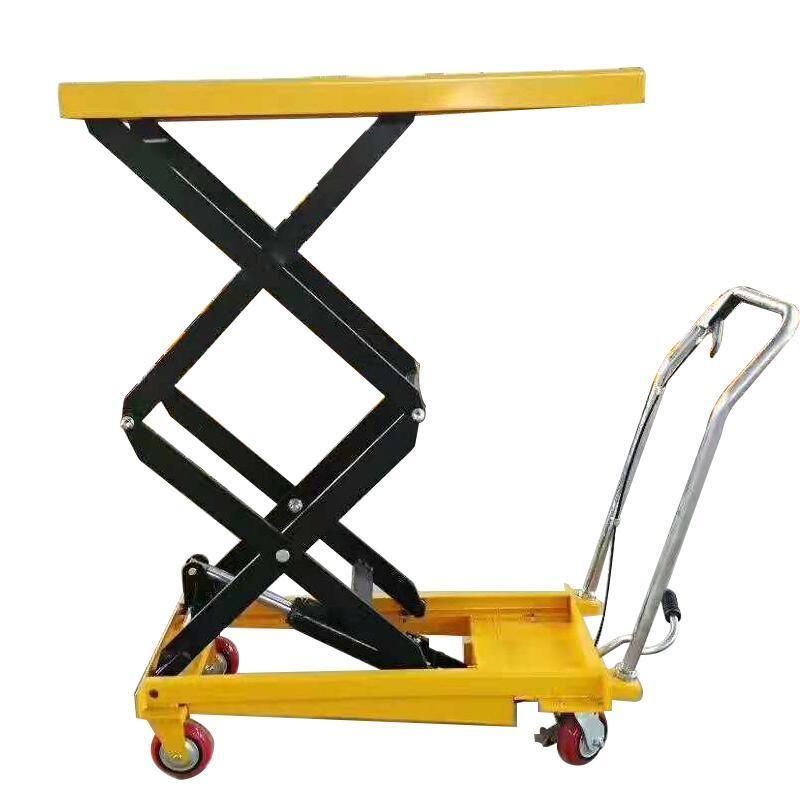

Hydraulic Lift Table
Capacity 150kgs 200kgs 350kgs 500kgs
Lift Height 0.72m 0.9m 1.22m 1.3m 1.5m 2m

Model No.	FAC200
Load Capacity(KG)	200
Max Height(mm)	2000
Min Height(mm)	410
Table Size (mm)	925*665*55
Wheel Diameter(mm)	125
Handle Height(mm)	960
Length(mm)	980
N.W.(KG)	137
Packing Size(cm)	100.5*68.5*31



Model No.	FAB350
Load Capacity(KG)	350
Max Height(mm)	900
Min Height(mm)	280
Table Size (mm)	820*500*50
Wheel Diameter(mm)	125
Handle Height(mm)	960
Length(mm)	880
N.W.(KG)	74
Packing Size(cm)	900*510*310



Model No.	FAC350
Load Capacity(KG)	350
Max Height(mm)	1300/1500
Min Height(mm)	350
Table Size (mm)	920*500*50
Wheel Diameter(mm)	125
Handle Height(mm)	960
Length(mm)	980
N.W.(KG)	103/107
Packing Size(cm)	100*51*31
