Electric Power Mobile Scissor Lift Scissor Lifting Platform
Jinan PLK Machinery Co., Ltd.- After-sales Service：Online Service, Free Express Accessories.
- Warranty：12 Months
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：500kg-2000kg
- Moves：Moving
Base Info
- Model NO.：SJY
- Driven Type：DC
- Running Mode：Moving
- Feature：Explosion-Proof, Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Transport Package：Standard
- Specification：500-2000
- Trademark：PLK
- Origin：China
- HS Code：8428909090
- Production Capacity：500sets
Description
Basic Info.
Model NO. SJY Driven Type DC Running Mode Moving Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Transport Package Standard Specification 500-2000 Trademark PLK Origin China HS Code 8428909090 Production Capacity 500setsProduct Description

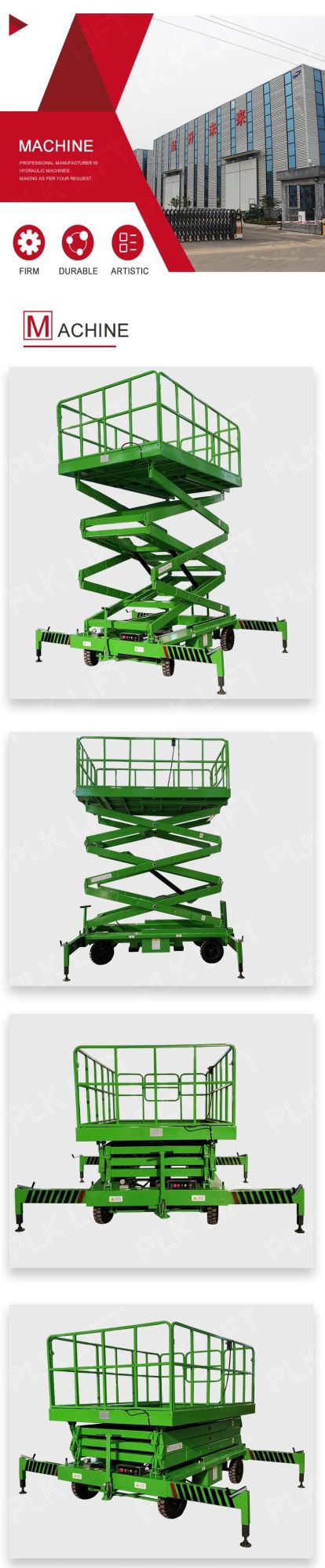

Electric Power Mobile Scissor Lift scissor lifting platform
Electric scissor lift has CE certificate which is popular in Aerial working industry, Manual dragging,two universal wheels,two fixed wheels,convenient for moving and turning.
It has power failure self locking function and emergency descent system which can guarantee the worker safe.
There is AC DC or both AC&DC power option let you select, flexible power source which can make your work more efficient.
| Model No. | Loading Capacity (kg) | Lifting Height (m) | Platform Size (m) | Overall size (m) | Motor (kw) | Wheels(φ) | Net Weight (kg) |
| SJY4506-H | 450 | 6 | 1.85*0.88 | 1.95*1.08*1.1 | 1.5 | 200 PU | 800 |
| SJY4507-H | 450 | 7.5 | 1.8*1.0 | 1.95*1.2*1.54 | 1.5 | 400-8 Rubber | 1000 |
| SJY4509-H | 450 | 9 | 1.8*1.0 | 1.95*1.2*1.68 | 1.5 | 400-8 Rubber | 1200 |
| SJY4511-H | 450 | 11 | 2.1*1.15 | 2.25*1.35*1.7 | 2.2 | 500-8 Rubber | 1580 |
| SJY4512-H | 450 | 12 | 2.45*1.35 | 2.5*1.55*1.88 | 3 | 500-8 Rubber | 2450 |
| SJY4514-H | 450 | 14 | 2.45*1.35 | 2.5*1.55*2.0 | 3 | 500-8 Rubber | 2650 |
| SJY1006-H | 1000 | 6 | 1.8*1.0 | 1.95*1.2*1.45 | 2.2 | 500-8 Rubber | 1100 |
| SJY1009-H | 1000 | 9 | 1.8*1.25 | 1.95*1.45*1.75 | 3 | 500-8 Rubber | 1510 |
| SJY1012-H | 1000 | 12 | 2.45*1.35 | 2.5*1.55*1.88 | 4 | 500-8 Rubber | 2700 |
| SJY0316-H | 300 | 16 | 2.75*1.5 | 2.85*1.75*2.1 | 3 | 500-8 Rubber | 3200 |
CE certificationSimple structure, easy to maintain.
Manual dragging, two universal wheels, two fixed wheels, convenient for moving and turning
Moving by man manually or towed by tractor. Lifting by AC(without battery) or DC (with battery).

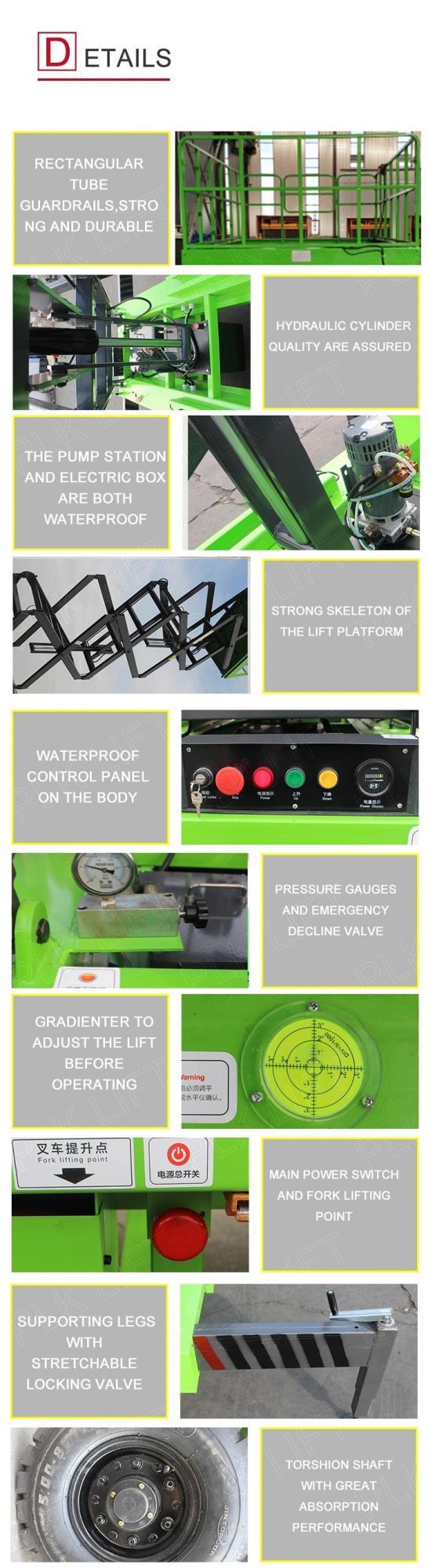

Electrical protection system:
a. The main circuit is equipped with main and auxiliary double contactors, and the contactor is faulty.
b. With rising limit, emergency limit switch
c. Equipped with emergency stop button on the platform
Power failure self-locking function and Emergency descent system
