20m Mobile Aerial Platform Xga20 Articulated Boom Lift with Cheap Price in Stock
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service:Video Technical Support
- Warranty:1 Year Warranty
- Application:Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism:Articulated Lift
- Carrying Capacity:Middle-Level
- Moves:Self-propelled
Base Info
- Model NO.:XGA20
- Driven Type:Hydraulic
- Running Mode:Moving
- Feature:Explosion-Proof, Insulating
- Certification:CE, ISO 9001
- Transport Package:Comply with Export Packaging Requirements
- Specification:9080*2490*2680mm
- Trademark:Maxizm
- Origin:Jiangsu, China
- HS Code:87059091
- Production Capacity:1000 Units,Year
Description
Basic Info.
Model NO. XGA20 Driven Type Hydraulic Running Mode Moving Feature Explosion-Proof, Insulating Certification CE, ISO 9001 Transport Package Comply with Export Packaging Requirements Specification 9080*2490*2680mm Trademark Maxizm Origin Jiangsu, China HS Code 87059091 Production Capacity 1000 Units/YearProduct Description
20m Mobile Aerial Platform XGA20 Articulated Boom Lift with Cheap Price in StockProduct Description
20m articulated mobile elevating work platform features compact composition, obstacle-crossing, precise control, powerful driving and easy operation. The machine is simple, efficient, safe and reliable, meeting demands of users from building construction, bridge and equipment maintenance, shipyard and petrochemical industry and users from rental service.
* Upwards, downwards and crossed multi-directional precise position and excellent extension
* The electrical system makes use of the distributed PLC-control technologies and the proportional valve being of self-adaptation method, leading the products in the terms of adaptability.
* 4WD drive, off-road wide tires and axle-balancing device enable the machine to be excellently suitable for any terrain, with gradeability up to 45% ranking the top in industry.
* The complete vehicle is compact. Before transportation, the crank is retracted back, shortening the transportation length to only 7m.
* Zero tail swing design could facilitate the entering of narrow room and the storage.
Product Parameters
Item | Unit | Parameter |
Overall length of complete machine | mm | 9080 |
Overall width of complete machine | mm | 2490 |
Overall height | mm | 2680 |
Wheelbase | mm | 2500 |
Max. working height | m | 20.4 |
Max. platform height | m | 18.4 |
Max. working range | m | 11.9 |
Max. carrying weight | kg | 230 |
Scope of luffing of No.1 arm | ° | 0~+70 |
Scope of luffing of Boom No.2 | ° | 0~+75 |
Crank arm luffing range | ° | -65~70 |
Slewing angle of turntable | ° | 360 |
Max. Tail swing | mm | 0 |
Dimension of platform | mm | 1830×760×1150 |
Slewing angle of platform | ° | 160 |
Overall weight | kg | 10600 |
Max. traveling speed | km/h | 6 |
Min. turning radius | m | 6 |
Min. ground clearance | mm | 230 |
Max. gradeability | % | 45 |
Specification of tire | 355/55D625 | |
Engine model | Perkins 404D-22 | |
Engine rated power | kW/(r/min) | 38/(3000) |

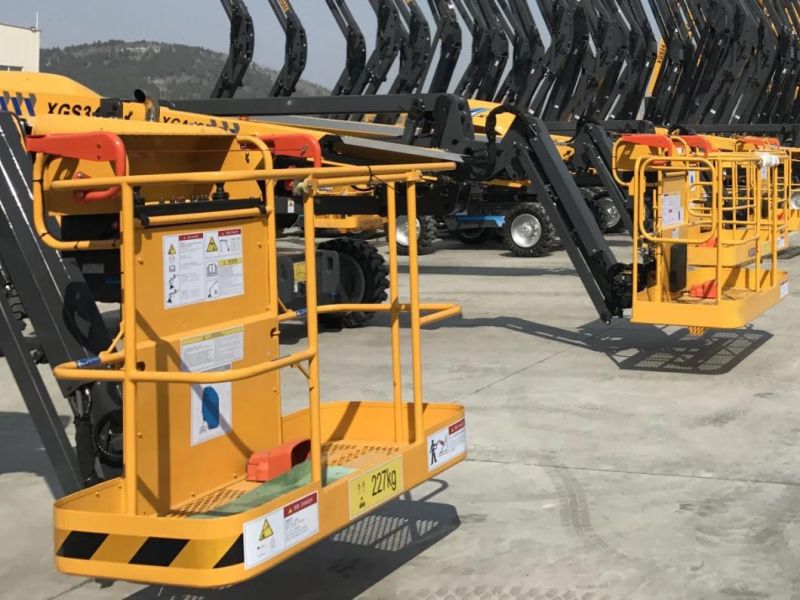

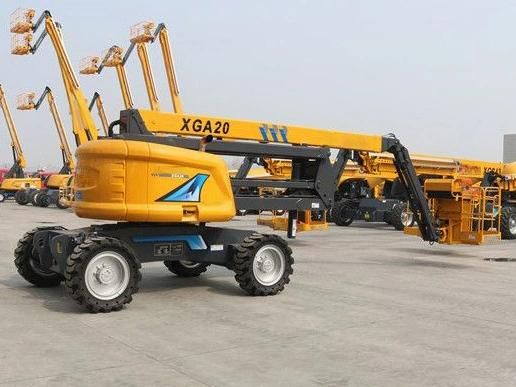

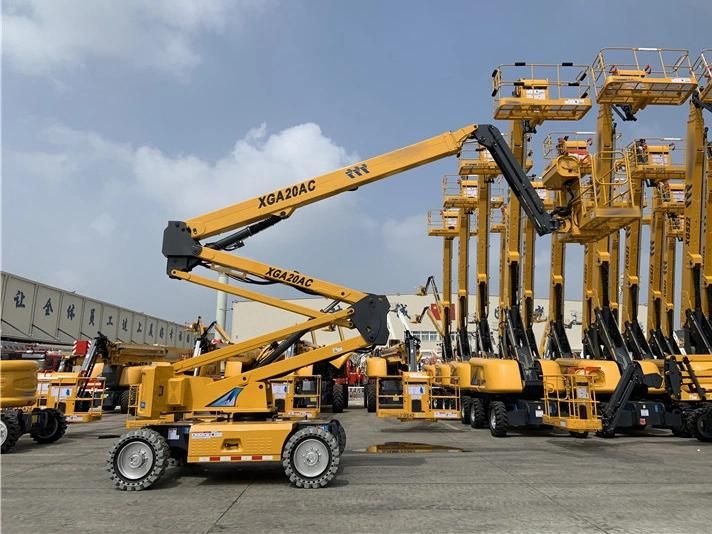

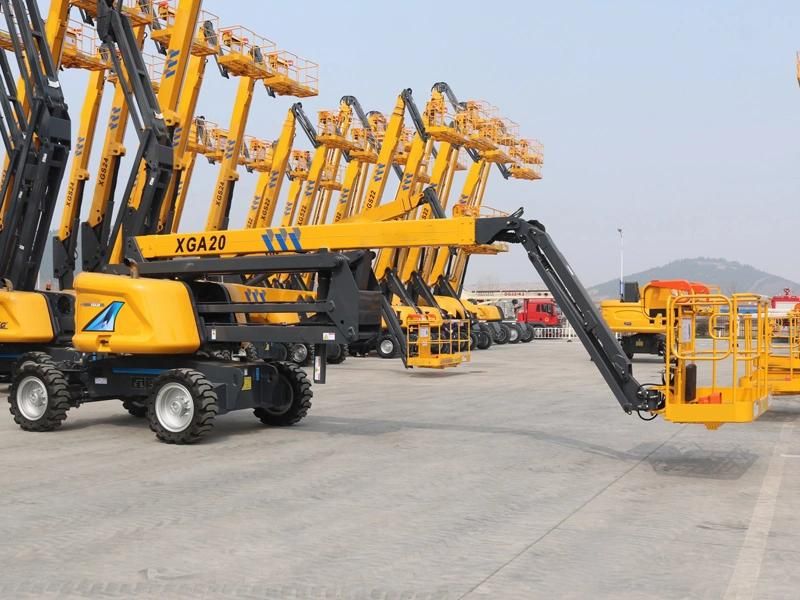

Product Picture
