500kg-2000kg Electric Swing Stage Hoist
Shanghai Yiying Crane Machinery Co., Ltd.- Application：Stage Used
- Type：Electric Hoist
- Sling Type：Chain
- Lift Speed：>8m,min
- Maximum Lifting Height：16m
- Chain Falls：1
Base Info
- Model NO.：HG-HCH
- Certification：CE, TUV
- Condition：New
- Color：Black
- Name：Electric Stage Hoist
- Chain：Fec Chain
- Brake System：Electromagnetic Brake
- Over Load Limit：Available
- Trolley Type：Available
- Chain Bag：Yes
- up-Side Down Lifting：Yes
- Limiter Switch：Yes
- Rainproof：Yes
- Control Type：Indirect
- Transport Package：Wooden Case, Pallets, and So on
- Specification：CE, ISO, TUV
- Trademark：HUGO
- Origin：Shanghai
- HS Code：8425110000
- Production Capacity：60000 PCS,Year
Description
The Parameters of Waterproof New Stage Hoist Capacity(KG) Model Power(kw) No. of load
Chain (mm) Lift speed
(m/min) Weight of hoist without
load chain (kg) Weight of Load
chain (Kg/m) 500 HCH 0.5A 0.42 1 4 30 1.1 500 HCH 0.5B 0.86 1 8 48 1.1 500 HCH 0.5C 0.83 1 4 48.5 1.1 1000 HCH 1A 1.5 1 8 50 1.1 1000 HCH 1B 0.86 2 2 52 2.2 2000 HCH 2A 1.5 2 4 54 2.2 2000 HCH 2B 1.5 1 16 50 1.1

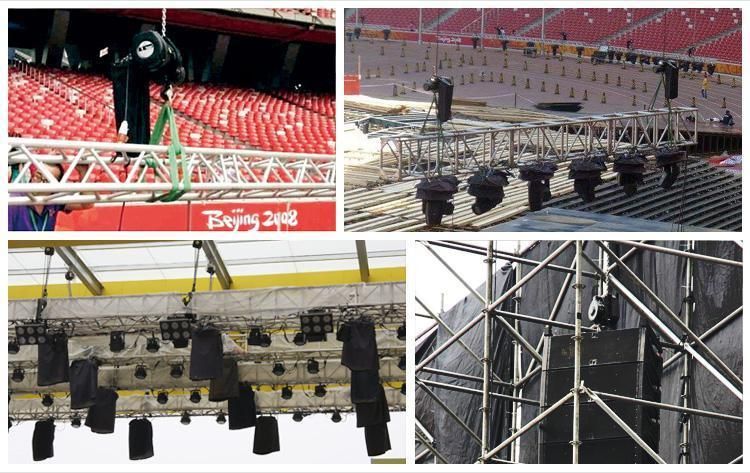

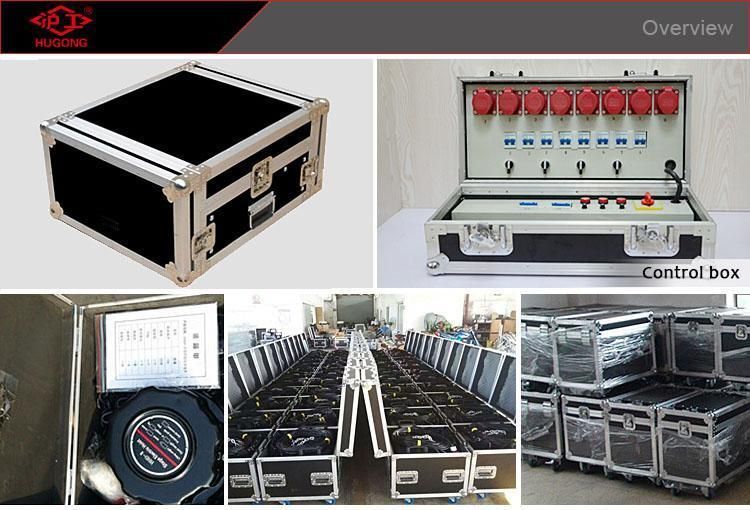

Products show
Our Cetificate & Service
