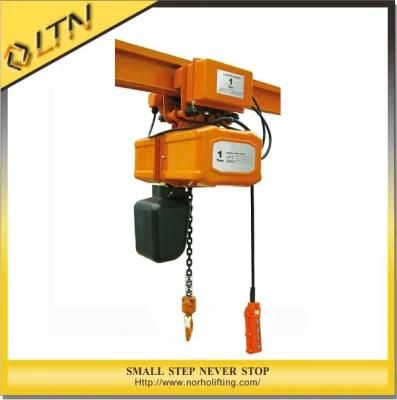

High Quality Small Overhead Electric Hoist
Hangzhou Nuohao Industry Co., Ltd.- Application：Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
- Type：Electric Hoist
- Sling Type：Chain
- Lift Speed：2~8m,min
- Maximum Lifting Height：12m
- Chain Falls：2
Base Info
- Model NO.：ECH-JB
- Certification：CE, ISO9001:2000
- Condition：New
- Warranty：1year
- Transport Package：Carton Packing or Wooden Pallet Packing
- Specification：CE, GS, TUV, ISO9001
- Trademark：LTN OR OEM
- Origin：Zhejiang, China (Mainland)
- Production Capacity：300000 PCS,Month
Description
1-3 Phase, 50/60HZ, 220V/380V/440VDuty Rating: 40% Load Chain Diamter(MM) 7.1X21(1) 7.1X21(1) 7.1X21(2) 7.1X21(3) 9X27(2) 9X27(3) Lifting Speed(m/min) 7/2.33 7/2.33 3.5/1.17 2.3/0.76 4/1.33 2.6/0.86 Extra Weight Per Meter of Extra lift(Kg) 1.1 1.1 2.2 3.3 3.5 5.3 Diamensions(MM) A 245 245 245 245 265 265 B 245 245 245 245 265 265 C 158 158 124 124 127 127 D 142 142 176 176 205 205 E 350 350 350 350 793 793 F 600 600 610 620 738 738 H min(MM) 500 520 630 710 600 850 Net Weight(Kg) 50 50 60 65 78 85
