Lsss-X-13vz-01 13mm Travel Precision Vertical Stages
Jiangxi Liansheng Technology Co., Ltd.- Type:Portable Jack
- Structure:Rack-Pinion Jack
- Capacity (Load):2 Kg
- Power Source:Hand Chain
- Max Height:91mm
- Certification:ISO 9001:2008
Base Info
- Model NO.:LSSS-X-13VZ-01
- Condition:New
- Transport Package:in Carton
- Specification:13mm
- Trademark:LSXPT
- Origin:Nanchang
- HS Code:90318090
- Production Capacity:5000 Sets Per Year
Description
Basic Info.
Model NO. LSSS-X-13VZ-01 Condition New Transport Package in Carton Specification 13mm Trademark LSXPT Origin Nanchang HS Code 90318090 Production Capacity 5000 Sets Per YearProduct Description

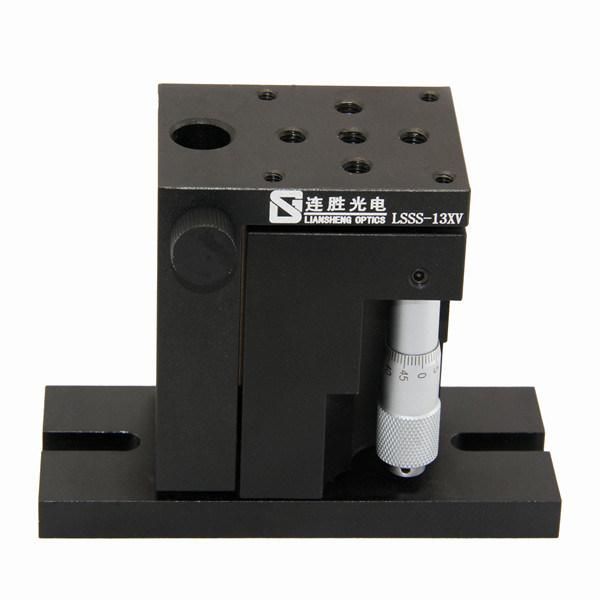

LSSS-X-13VZ-01 Precision vertical stages1.Imported high quality linear ball bearings as guide rail.
2.Double guide rail over position structure to ensure the smooth and comfortable movement, high precision.
3 .The micrometer head has external directly drive, to achieve convenient operation and quantitative readings.
4.There is standard link hole on the table top, easy to fixed connection, another long hole diameter of
12 mm , can be directly fixed on LSZG series supports.
Travel | 13mm |
Accuracy | 0.005mm |
Minimum scale | 0.01mm |
Resolution | 0.002mm |
Table top size | 44X62mm |
Load capacity | 2kg |
Weight | 0.6kg |
