Low Profile Hydraulic Pump Electric Lift Table 85mm Closed Height
Nu-Lift Equipment Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Weight Level
- Moves：Stationary
- Driven Type：AC
- Running Mode：Stationary
Base Info
- Model NO.：HY1001, HY1004, HY1501, HY1502, HY2001, HY2002
- Feature：Lifting
- Certification：GS, CE
- Material：Steel
- Transport Package：1PC,Wooden Case
- Specification：CE
- Trademark：NU-LIFT
- Origin：China
- HS Code：8427900000
- Production Capacity：2000PCS, Month
Description
Basic Info.
Model NO. HY1001, HY1004, HY1501, HY1502, HY2001, HY2002 Feature Lifting Certification GS, CE Material Steel Transport Package 1PC/Wooden Case Specification CE Trademark NU-LIFT Origin China HS Code 8427900000 Production Capacity 2000PCS/ MonthProduct Description

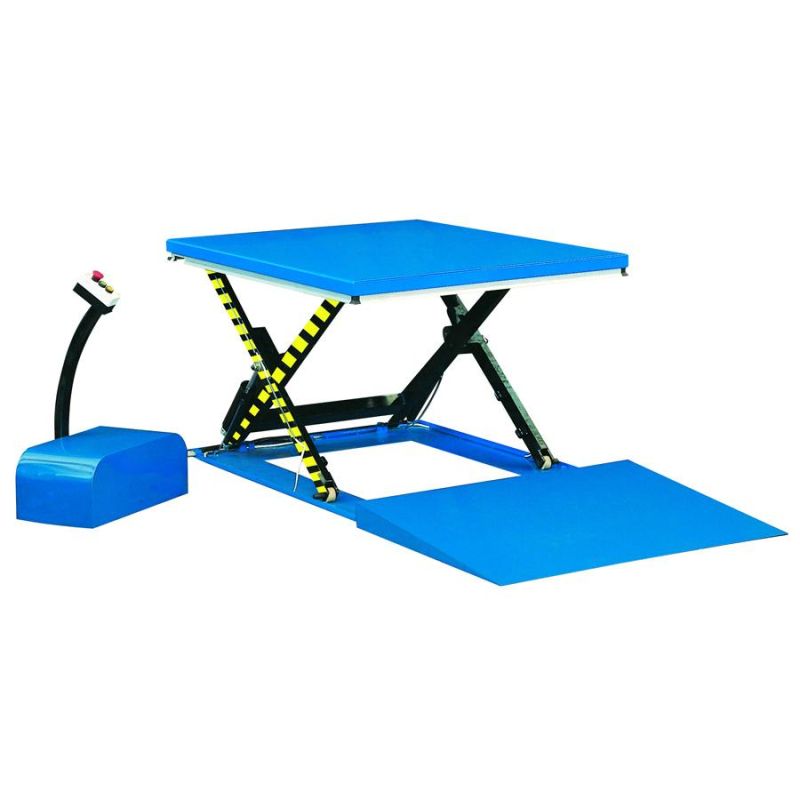

Heavy duty design with larger platform.Loading ramp is a standard equipment.
Oiless bushings on pivot points.

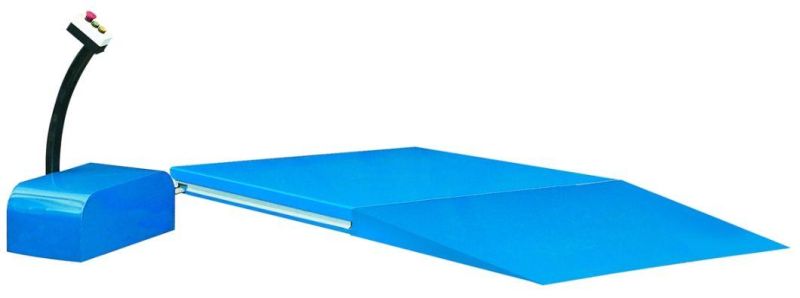

These tables achieve a low closed height, eliminating the need for a pit installation.
They are manufactured to all European safety standards including EN1570: 1999.
Remote power pack with pedestal and controls, pretected to IP54.
Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
24V control box with UP and DOWN buttons and emergency stop.
External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed. Power supply are AC308V/50HZ/3phase.
Hose burst safety valve to stop the lift table lowering in case of hose breakage.
Removable lifting eyes to facilitate handling and installation of the lift table.
Mechanical safety chocks for maintenance.
| Model | Capacity (kg) | Platform Size (mm) | Min.Height (mm) | Max.Height (mm) | Stroke (mm) | Lifting Time (second) | Power pack | Net Weight (kg) |
| HY1001 | 1000 | 1450×1140 | 85 | 860 | 775 | 25 | 380V/50HZ,AC 0.75kw | 357 |
| HY1002 | 1000 | 1600×1140 | 85 | 860 | 775 | 25 | 380V/50HZ,AC 0.75kw | 364 |
| HY1003 | 1000 | 1450 × 800 | 85 | 860 | 775 | 25 | 380V/50HZ,AC 0.75kw | 326 |
| HY1004 | 1000 | 1600 × 800 | 85 | 860 | 775 | 25 | 380V/50HZ,AC 0.75kw | 332 |
| HY1005 | 1000 | 1600 × 1000 | 85 | 860 | 775 | 25 | 380V/50HZ,AC 0.75kw | 352 |
| HY1501 | 1500 | 1600×800 | 105 | 870 | 775 | 30 | 380V/50HZ,AC 1.5kw | 362 |
| HY1502 | 1500 | 1600×1000 | 105 | 870 | 775 | 30 | 380V/50HZ,AC 1.5kw | 401 |
| HY1503 | 1500 | 1600 × 1200 | 105 | 870 | 775 | 30 | 380V/50HZ,AC 1.5kw | 415 |
| HY2001 | 2000 | 1600×1200 | 105 | 870 | 775 | 35 | 380V/50HZ,AC 2.2kw | 419 |
| HY2002 | 2000 | 1600×1000 | 105 | 870 | 775 | 35 | 380V/50HZ,AC 2.2kw | 405 |
