• Model NO.：HS
• Driven Type：Spring
• Running Mode：Stationary
• Certification：CE
• Operation：Spring Lift
• Construction：Steel
• Net Weight(Kg)：173
• Load Capacity (Kg)：182-2000kg
• Transport Package：Pallet
• Specification：1.5CBM
• Trademark：PLK LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. HS Driven Type Spring Running Mode Stationary Certification CE Operation Spring Lift Construction Steel Net Weight(Kg) 173 Load Capacity (Kg) 182-2000kg Transport Package Pallet Specification 1.5CBM Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 500 Sets/Month

Product Description

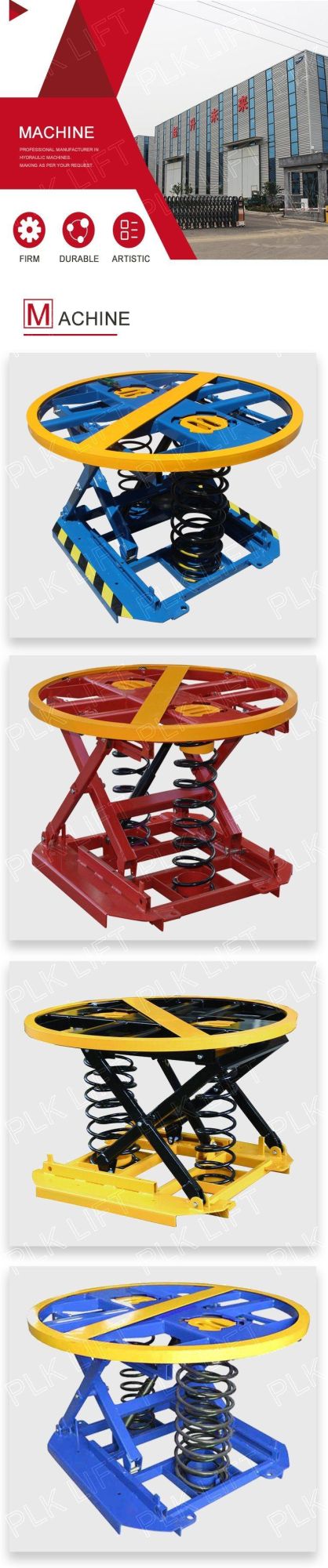

Pallet Positioner Scissor LiftPaleet Positioner Scissor Lift is widely used in warehouse and workshop to help people lift the goods. The lifting power is spring, do not need connect with electricity, that will to make the worker avoid electric shock hazard. The platform is automatically raised to the appropriate height for picking up according to different product weights, it is very convenient.

Model	HS2000A
Load Capacity (kg)	182-2000kg
Max. Pallet Size(mm)	1270*1270*1820
Base Size(mm)	920*933
Lowered Platform Height(mm)	242
Max Platform Height(mm)	705
Rotary Platform Diameter(mm)	1108
G.W.:(kg)	185
Construction	Steel
Operation	Spring Lift
Package size	140*114*45

Advantage:

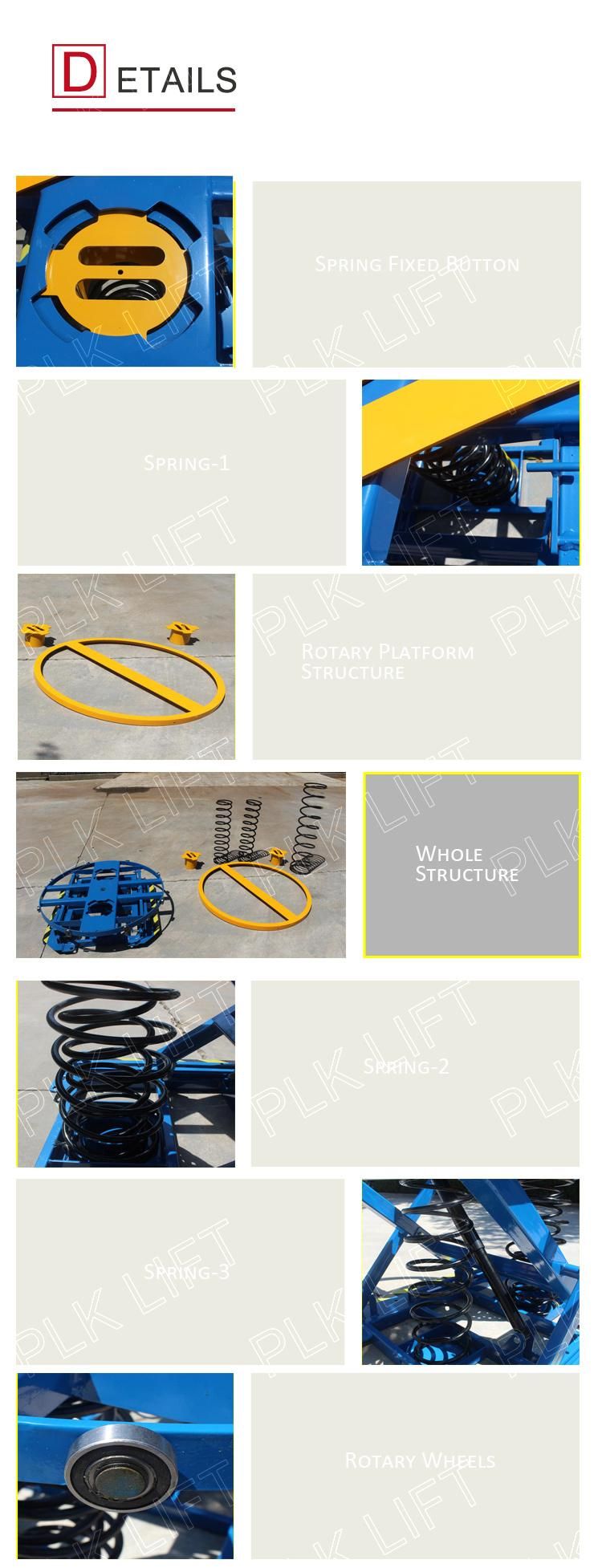

1. Rugged scissor construction, the max. Load capacity can reach 2000kg.
2. Using spring self-balancing design, make the pallet height always at the most convenient height.
3. The connecting rod structure is designed to keep the plane level when the load is not uniform.
4. Equipped with high quality bearings, 360-degree rotating platform enables workers to quickly and quickly pack and assemble their work.
5. The table equipped with the forklift hole, easy to use forklift mobile,enhance stability of platform base.
6. No hydraulic or electrical control is required, efficient maintenance cost reduction.
7. It is widely used in logistics warehouse packaging, workshop packaging, etc.
