Dredger Hydraulic Winch for Lifting and Pulling
Henan Nucrane Machinery Co.,Ltd.- Type：Construction Winch
- Driven Type：Hydraulic
- Speed：0-25m,Min
- Carrying Capacity：1-20ton
- Tonnage：10T
- Reel Number：1
Base Info
- Model NO.：SMHY
- Running Mode：Moving
- Feature：Deck Winch
- Certification：CE, RoHS, ISO 9001, BV, Rmrs
- Standard：National Standards
- Flow Rating：120L,Min
- Pressure Rating：16.6MPa
- Max.Pull：100kn
- Max.Line Speed：10m,Min
- Wire Rope Diameter：20.5mm
- Rope Storage：100m
- Color：Yellow, Black or Customer Requirements
- Transport Package：Wooden Package
- Specification：1-3m3
- Trademark：Nucrane
- Origin：Jining
- Production Capacity：5000sets,Month
Description
10801080 2530 2750 Hydraulic winch product features:

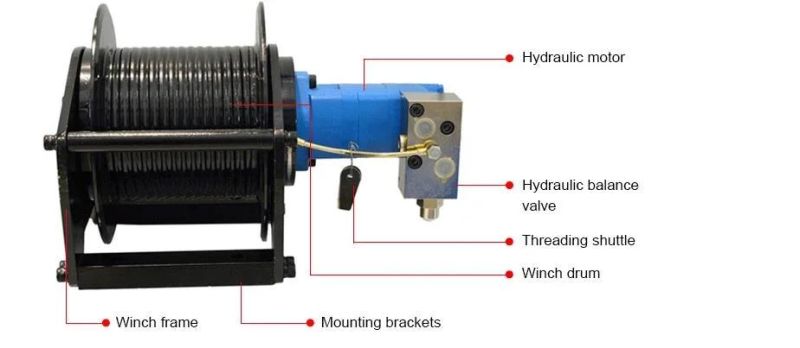

1) Only flow restrictors and manifolds are on the outside of the drum. Hydraulic motors and shell to drive devices and other components are hidden in the winch drum, so the axial size is small, compact, beautiful appearance;
2) Starting efficiency and transmission efficiency, low energy consumption, reliable, long service life;
3) low noise during operation;
4) good economic performance.
Application of winch
Pick on carry crane
mobile crane
drill machine
piling machine
overhead working truck
lorry mounted crane
mirror crane
ship equipments and so on
1) Only flow restrictors and manifolds are on the outside of the drum. Hydraulic motors and shell to drive devices and other components are hidden in the winch drum, so the axial size is small, compact, beautiful appearance;
2) Starting efficiency and transmission efficiency, low energy consumption, reliable, long service life;
3) low noise during operation;
4) good economic performance.
