0.5ton Electric Chain Hoist, PDH Motorized Hoist
Shanghai Yiying Crane Machinery Co., Ltd.- Application：Double Beam Crane, Gantry Crane, Single Grinder Crane, Small Crane, Lifting Equipment
- Type：Electric Hoist
- Sling Type：Chain
- Lift Speed：2~8m,min
- Maximum Lifting Height：20m
- Chain Falls：2
Base Info
- Model NO.：PDH
- Certification：CE, ISO9001:2000, TUV
- Condition：New
- Color：Yellow
- Name：Pdh Electric Hoist
- Hook：Heat Treated
- Chain：Fec or Made in China
- Brake System：Electromagnetic Brake
- Over Load Limit：Available
- Trolley Type：Available
- Single Speed：Yes
- Double Speed：Available
- Low Headroom：Available
- Chain Bag：Yes
- Transport Package：Wooden Case, Pallets, and So on
- Specification：CE, ISO, TUV
- Trademark：HUGO
- Origin：Shanghai
- HS Code：8425110000
- Production Capacity：50000 PCS,Year
Description
The Parameters of 0.5T Electric Chain Hoist, PDH Motorized Hoist Model PDH-A-0.5 PDH-A-1 PDH-A-2 PDH-A-2.5 PDH-A-3 PDH-A-5 Capacity ( t ) 0.5 1 2 2.5 3 5 Standard lifting height ( m ) 3 Lifting Speed ( m/min ) 7.2 5.8 3.0 5.0 5.0 2.6 Lifting Motor Power (kw) 8 8 14 7 10 5 Volt (V) Frequency (Hz) 50
Chain Turns 1 1 2 1 1 2 Chain specification (mm) Ø 6.3×19 Ø8×24 Ø8×24 Ø11.2×34 Ø11.2×34 Ø11.2×34 Test load (t) 0.625 1.25 2.5 3.125 3.75 6.25 Net Weight (kw) 41 45 53 108 110 130 Weight added with 1m higher (kg) 1.1 1.4 2.8 2.8 2.8 5.6
220v to 380v converter electric motor lifting chain hoist2. Side kind braking:This masterly structure ensure the hoist absolutly safty when the power off. And ensures it is safe when has excess load. Also it combine to the motor braking as the double brake system to strengthen security and durability. 3. Gear:The gear made of alloy steel and through the heat treatment 4. Antiphase protector:When power-supply wiring mistake, the control circuit is unable to move. 5. Hooks:They are made by hot forging and heat treatment. 6. Chain:It is made of FEC80 ultra strong heat treatment alloy steel.
Advatages: It is safely approximately when used in the rain water, the sea water, under the chemical and other bad conditions. 7. ISO: M5 /FEM: 2AM Insulation grade: F 8. Protection class (hosit and push button): IP55 9. Powder supply: 3 phase, 200-600v, 50HZ

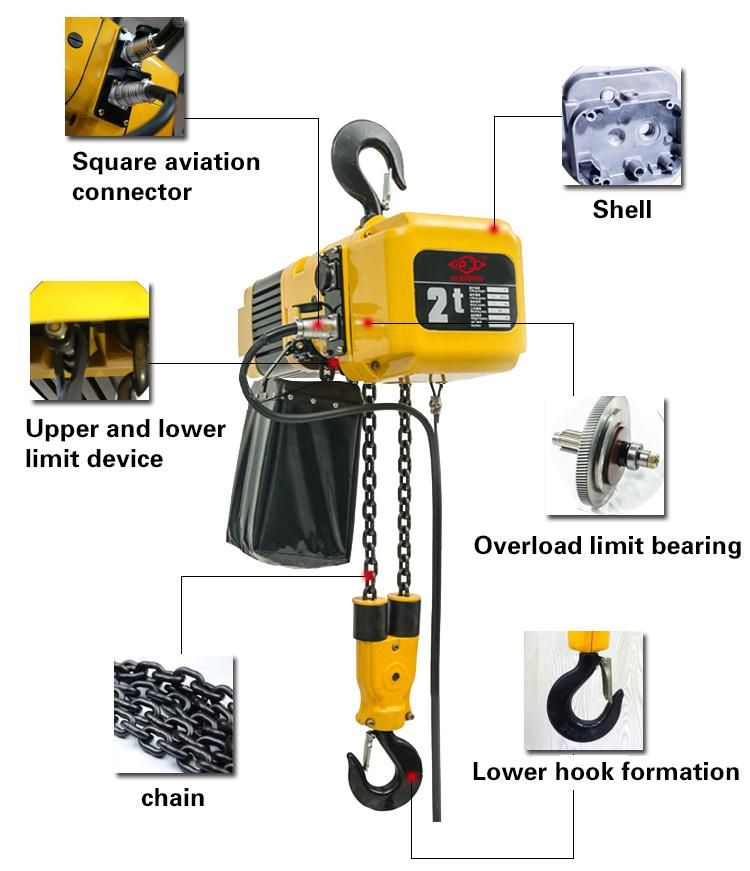

electric motor hoist crane more details
220v to 380v converter electric motor lifting chain hoist
1. Electric motor partial outer cover:They are made of high strength aluminum system through compression casting formation.
Features: Solid and light, Fast release heat, Continuous use, Enclosed structure. Can be used in the chemical plants, electroplating factories, and other places.
Advatages: It is safely approximately when used in the rain water, the sea water, under the chemical and other bad conditions.
What applications of the Lifting Motor Electric Chain Hoist crane?

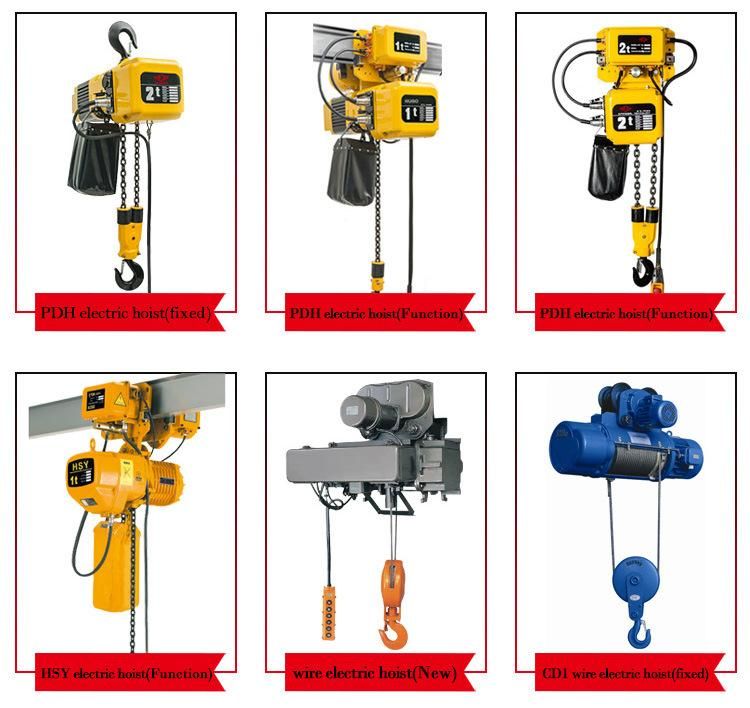

Related products:
