• Model NO.：CD1
• Certification：CE
• Condition：New
• Color：Blue
• Name：CD1,MD1 Wire Rope Electric Hoist
• Factory：More Than 20 Years Manufactory Experience
• Brand Name：Hugo
• Loading Port：Shanghai Port,Shanghai Port
• Warranty：1 Years
• Painting Color：as Your Order
• Quality Control：According to EU Standard
• Standard Lifting：8 M,Min
• Payment Term：T,T L,C
• After-Sales Service：Overseas Srevice Provided
• Transport Package：Packing by Carton, Woodon Case
• Specification：CE ISO, TUV, SGS
• Trademark：HUGO
• Origin：China-Shanghai
• HS Code：8425110000
• Production Capacity：100000PCS ,Month

  Product parameters

1.Reducer: adopt third-class dead axel helical gear transmission structure gear

and geaaxel are made of heat treated alloy steel

2.Button Switch: easy to operate, safey for operator, both remote control and pendant control are available.3.Motor: three-phase asynchronous induction motor, durable and powerful. Insulation grade is F.4.Protection grade: IP54, work grade: M35.Over load limit is available. Hook is widen and thicken 6.Power-Off protection, Emergency stop system.

Model

CD1-0.25

CD1-0.5

CD1-1

CD1-2

CD1-3

CD1-5

CD1-10

Capacity(t)

0.25

0.5

1

2

3

5

10

Standard lift(m)

3-9

6-12

6-30

6-30

6-30

6-30

9-30

Lifting speed(m/min)



88/0.8

88/0.8

88/0.8

88/0.8

88/0.8

77/0.7

Running speed(m/min)

20(30)

20(30)

20(30)

20(30)

20(30)

20(30)

20(30)

Wire rope type



6x37-4.8-180

6x37-7.4-180

6x37-11-155

6x37-13-170

6x37-15-200

6x37-17.5-200

I Beam track type

16-22b

16-28b

16-28b

20a-32c

20a-32c

25a-63c

28a-63c

Motor

Power(KW)

04

0.8

1.5

3.0

4.5

7.5

13

R.P.M(r/min)

1400

1380

1380

1380

1380

1380

1380

Voltage(V)

380

380

380

380

380

380

380

Frequency(Hz)

50

50

50

50

50

50

50

Phase

3

3

3

3

3

3

3

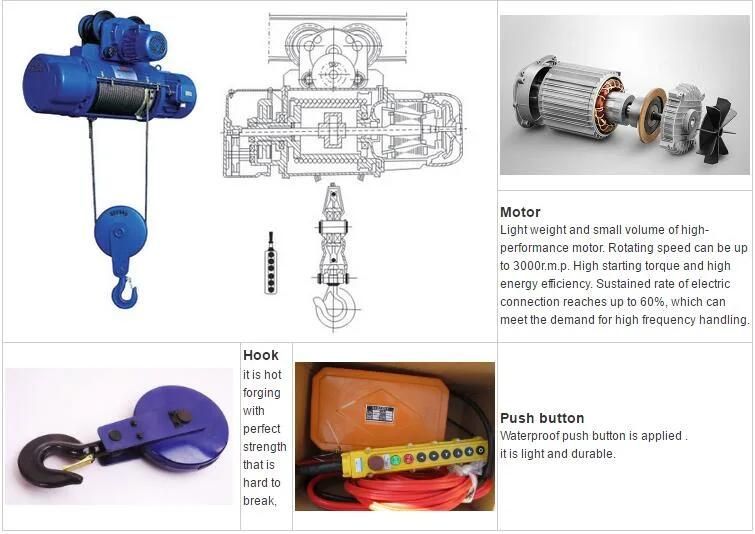

CD1 Model wire rope electric hoist lifting block CD1 Hoist Gearbox

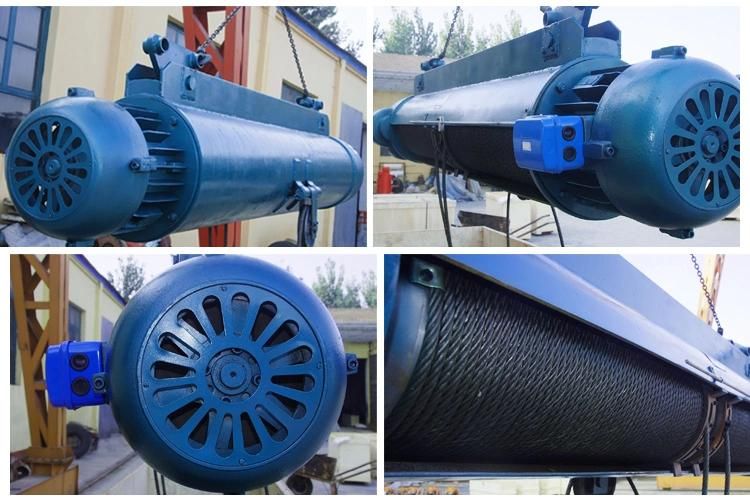

CD1 Model wire rope electric hoist Material object

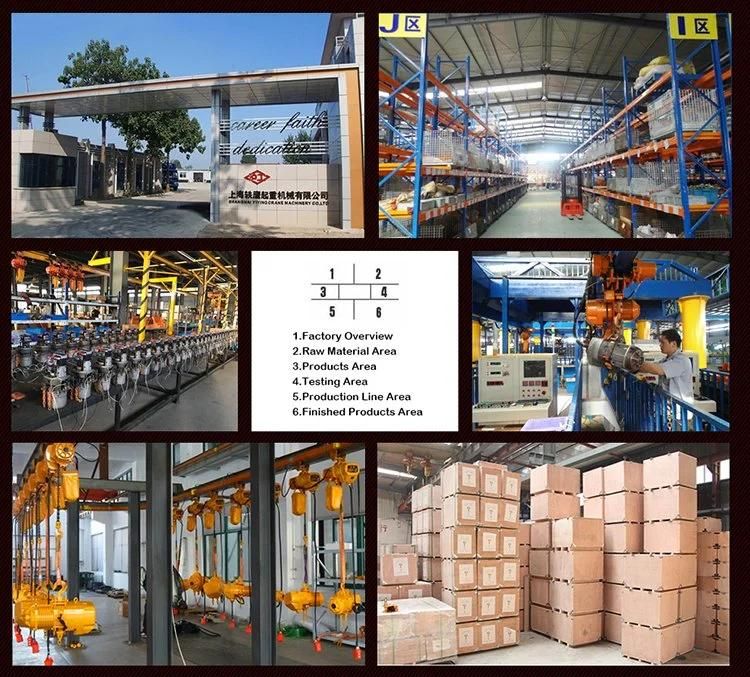

CD1 Model wire rope electric hoist lifting block production process

Company Information
Shanghai Yiying Crane Machinery Co., Ltd. Was established in 1992, which specializing in designing and manufacturing Manual Chain Hoist, Lever Hoist, Electric Hoists, Forklift and other lifting products.
1. Annual production in 5 million units production area 3600 square meters;
2. 4 production bases in HangZhou, Chongqing, Jiangsu and Hebei.
3. 120 production lines;
4. More than 500 employees;
5. Annual export value over 50 million RMB.

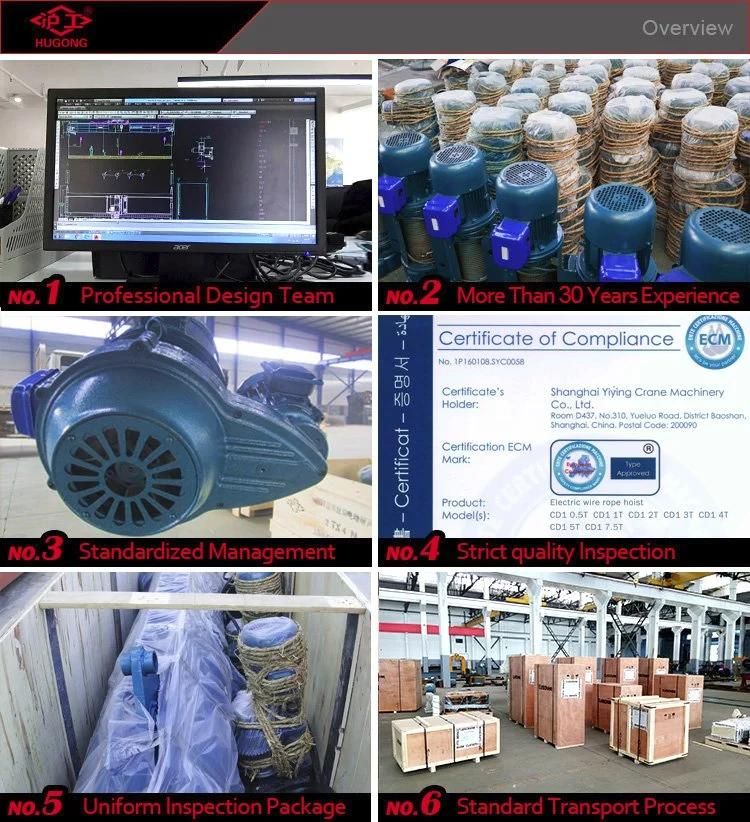

Why choose us
BRAND ADVANTAGE
1. 50 years brand history; (Trademark registration number; 1975110)
2. TOP5 lifting equipment supplier in China;
3. One of the first batch of enterprises certified by Alibaba;
4. Brand customers: CNPC, China Railway Group and so on

TECHNOLOGY ADVANTAGES
1. Focuse on the production and R&D of lifting equipment for about 30 years;
2. Professional independent research and development team, recognized by domestic and foreign customers.
3. Company was honored by the givernment as a High-Tech enterprise in 2010

Service Advantage
1. 7D*24H after-sales service,
2. More than 100 professional service staff.

The products of our company have exported to over 80 countries and regions,including EUROPE,USA,AUSTRALIA and SOUTHEAST ASIA,etc.



Certifications
RIGOROUS QUALITY CONTROL
1. Certificate:CE,SGS,ISO:9001,BV
2. The third-party inspection for quality testing is accepted
3. Product qualification rate more than 98%
4. In accordance with the requirements of Environmental Protection Administration,the quality and delivery can be guaranteed

Our Products
Product Range:Electric Chain Hoist/Wire Rope Hoist/Wire rope winch/Mini Type Hoist/Pallet Truck/Hydraulic jack/Explosion-proof hoist/Stainless steel hoist/Lever Hoist/Chain Hoist
