30ton Double Girder Electric Wire Rope Hoist for Sales
Shanghai Yiying Crane Machinery Co., Ltd.- Application：Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane, Electric Hoist 1 Ton
- Type：Electric Hoist
- Sling Type：Wire Rope
- Lift Speed：8 8,0.8
- Maximum Lifting Height：30m
- Chain Falls：1,2 Can Be Produce
Base Info
- Certification：CE, ISO9001:2000, GS
- Condition：New
- Color：Blue
- Product：30ton Double Girder Electric Wire Rope Hoist for S
- Type of Motor：100% Pure Copper for The Motor
- Material of Electric Hoist：Steel
- Rated Volt of Electric Hoist：380V or as Your Require
- Rated Lifting：0.5t, 1t, 2t, 3t, 5t, 10t
- Lifting Height：3-30m or as Your Order
- Electric Hoist Wire Rope Type：6*37-4.8-180
- Surface Treatment：PVC Coated
- Switch of Electric Hoist：Remote Control
- Power Plug：as Your Require
- Transport Package：Carton Box ,Wooden Box Then in Pallet
- Specification：MD1
- Trademark：HUGONG
- Origin：Shanghai China
- HS Code：8425110000
- Production Capacity：About 300pieces Electrical Hoist,Month
Description

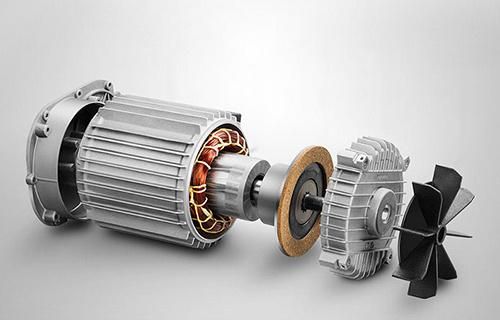

Motor
Light weight and small volume of high-performance motor. Rotating speed can be up to 3000r.m.p. High starting torque and high energy efficiency. Sustained rate of electric connection reaches up to 60%, which can meet the demand for high frequency handling.
Feature of our Electric Hoist:
1.100% pure copper for the motor.
2.The longer stator and rotor make the motor has enough Power.
3.The core components of motor.
4.With urgent stop switch
5.With up limit system
6.With down limit system
More description of Electric Hoist
| Model | 0.25TON | 0.5 TON | 1TON | 2TON | 3TON | 5TON | 10TON |
| Capacity(t) | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 |
| Standard lift(m) | 3-9 | 6-12 | 6-30 | 6-30 | 6-30 | 6-30 | 6-90 |
| Lifting speed(m/min) | 8 8/0.8 | 8 8/0.8 | 8 8/0.8 | 8 8/0.8 | 8 8/0.8 | 7 7/0.7 | |
| Running speed | 20(30) | 20(30) | 20(30) | 20(30) | 20(30) | 20(30) | 20(30) |
| Wire rope type | 6*37-4.8-180 | 6*37-7.4-180 | 6*37-11-155 | 6*37-4.8-180 | 6*37-13-170 | 6*37-15-200 | 6*37-17.5-200 |
| Motor power(kw) | 0.4 | 0.8 0.2/0.8 | 1.5 0.2/1.5 | 3 0.4/3 | 4.5 0.4/4.5 | 7.5 0.8/7.5 | 13 1.5/13 |
Advantage of Electric Hoist:
Compact structure design and easy install
Upper limit lever
The emergency stop switch
Tensile strength of wire rope:≥ 1870N/mm2
Diameter of wire rope: 4.0mm
CD1(MD1)type,wire rope electric hoist is a kind of smaill lifting equipment .It can mounted on single beam overhead cranes.gantry cranes ,CD1(MD1)Type,electric hoist as only one normal speed which can satisfy normal application. It is widely used in factories,mines,haybours,wirehouses,cargo storage are and shops,essential in raising working efficiency and improving working conditions.
