0.5-2 Ton Electric Stage Chain Hoist
Shanghai Yiying Crane Machinery Co., Ltd.- Application：Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
- Type：Electric Hoist
- Sling Type：Chain
- Lift Speed：2~8m,min
- Maximum Lifting Height：>20m
- Chain Falls：1
Base Info
- Model NO.：HCH
- Certification：CE, ISO9001:2000, TUV, SGS
- Condition：New
- Color：as Your Wish
- Name：0.5-2 Ton Electric Stage Chain Hoist
- Factory：More Than 20 Years Manufacture Experience
- Brand Name：Hugong
- Hook：Forged
- Deliverity Time：About 15 Days
- Loading Port：Shanghai, Tianjin
- Place of Original：China( Shanghai)
- Lifting Speed：8m,Min
- After-Sales Service Provided：Overseas Services Provided
- Package：Carton or Wooden Case
- Transport Package：Packing by Carton, Woodon Case
- Specification：CE, ISO, TUV, SGS
- Trademark：HUGO
- Origin：China-Shanghai
- HS Code：8425110000
- Production Capacity：100000PC,Month
Description
Basic Info.
Model NO. HCH Certification CE, ISO9001:2000, TUV, SGS Condition New Color as Your Wish Name 0.5-2 Ton Electric Stage Chain Hoist Factory More Than 20 Years Manufacture Experience Brand Name Hugong Hook Forged Deliverity Time About 15 Days Loading Port Shanghai, Tianjin Place of Original China( Shanghai) Lifting Speed 8m/Min After-Sales Service Provided Overseas Services Provided Package Carton or Wooden Case Transport Package Packing by Carton, Woodon Case Specification CE, ISO, TUV, SGS Trademark HUGO Origin China-Shanghai HS Code 8425110000 Production Capacity 100000PC/MonthProduct Description

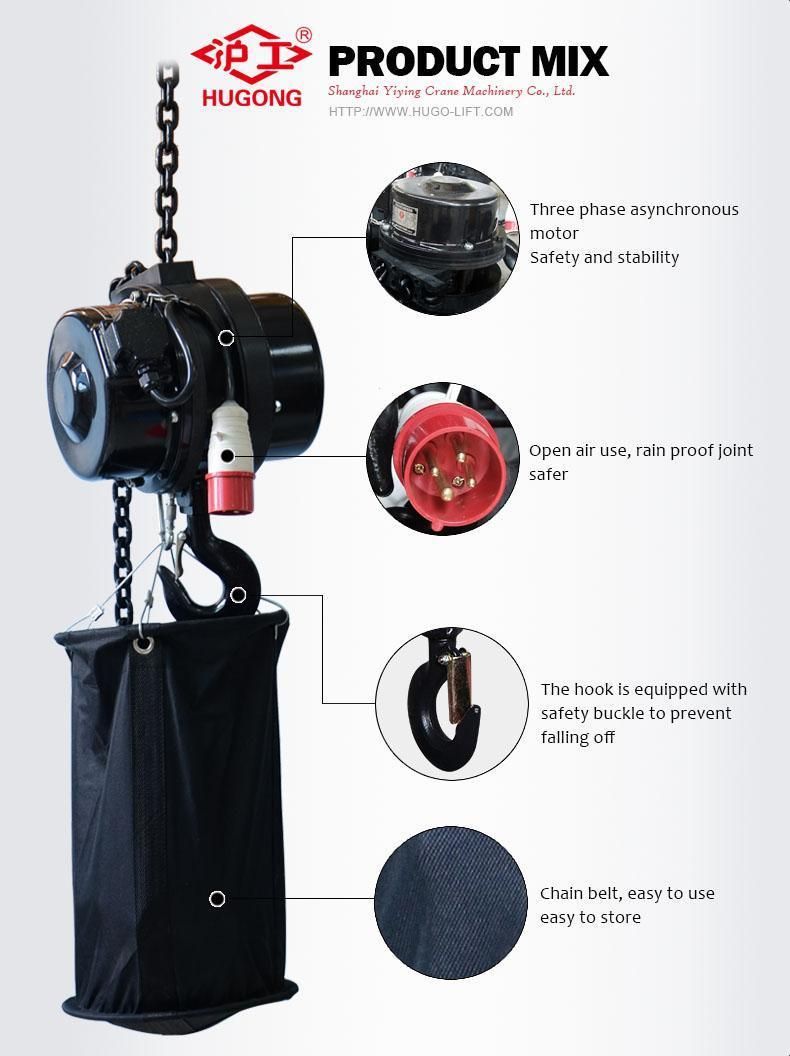

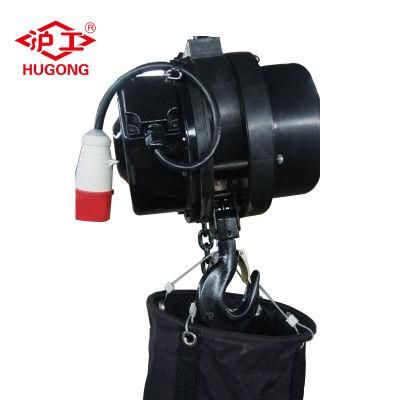

1 Ton Electric Swing Stage HoistThe detail information of 1 Ton Electric Swing Stage Hoist
1) 2m/min for single chain
2) symmetrical structure
3) rain-proof design
4) steel-made cover
5) Friction overload protection
6)36V indirect control
7) limit switch of screw tpye
8) 100% test before assembling and loading
9) Warranty: 1 Year
This powerful newly develop brake system responds instantly and supplies dependable positive braking power. An extremely ling, service life has been achieved with the use of non-asbestos brake linings. This brake system was tested more than 22500 times at the factory without adjustments.
| Capacity(KG) | Model | Power(kw) | No. of load chain | Lift speed(m/min) | Weight of hoist without load chain(kg) | Weight of Load chain(Kg/m) |
| 500 | M6-W0.5A | 0.42 | 1 | 4 | 30 | 1.1 |
| 500 | M6-W0.5B | 0.86 | 1 | 8 | 48 | 1.1 |
| 500 | M6-W0.5C | 0.83 | 1 | 4 | 48.5 | 1.1 |
| 1000 | M6-W1A | 1.5 | 1 | 8 | 50 | 1.1 |
| 1000 | M6-W1B | 0.86 | 2 | 2 | 52 | 2.2 |
| 2000 | M6-W2A | 1.5 | 2 | 4 | 54 | 2.2 |
| 2000 | M6-W2B | 1.5 | 1 | 16 | 50 | 1.1 |
