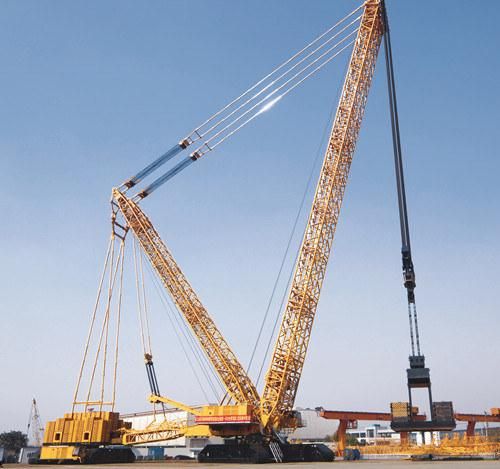

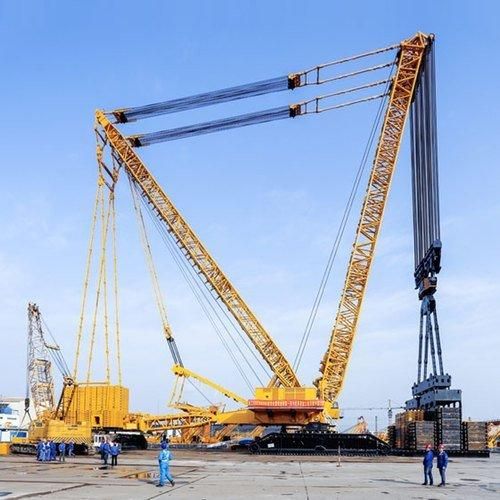

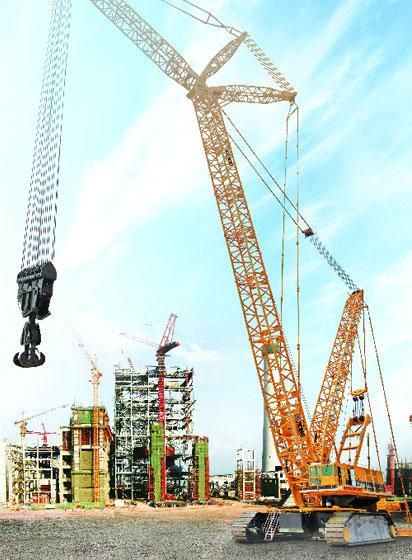

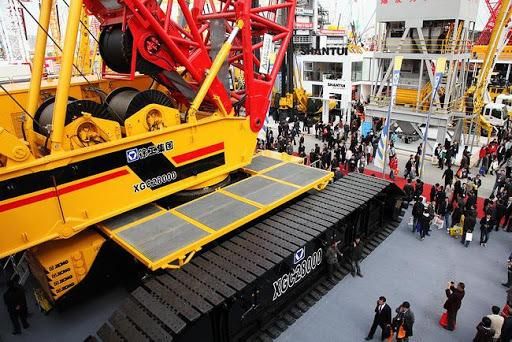

• Model NO.：XGC28000
• Production Capacity：100sets, Month

ItemUnitParameter valueParameter Item-XGC28000Operation performance parameter *Max. rated lifting capacity for boom(t)2000Max. rated lifting capacity for fixed jib(t)-Max. rated lifting capacity for luffing jib(t)733Max. load moment(t.m)28000Max. rated lifting capacity for tower jib(t)733Max. rated lifting capacity for boom single top(t)100Max. rated lifting capacity for special jib(t)861Dimension parameter *Boom length(m)54~108(heavy type)/114~156(light type)Boom luffing angle(°)-3~84Fixed jib length(m)-Tower jib length(m)36~108Max. dimension of single unit in transport state(L×W×H)(m)15.35×3.48×3.23Fixed jib offset angle(°)-Special jib length(m)18Speed parameter *Max. single line speed for hoist mechanism(m/min)120Max. single line speed for boom luffing mechanism(m/min)2×40Max. single line speed for jib luffing mechanism(m/min)-Max. slewing speed(r/min)0.6Max. travel speed(km/h)0.8Grade ability(%)30Mean ground pressure(MPa)0.26Max. single line speed for tower jib luffing mechanism(m/min)105Max. single line speed for superlift luffing(m/min)120Engine *Model-OM502LAEngine power(kW)2×480Emission-EU IIIMass parameter *Overall crane mass(t)1250(main hook, 54m boom)Max. mass of single unit in transport state(t)69
