• Model NO.：VPL0.25-1.5
• Feature：Aluminum Alloy
• Certification：CE
• Transport Package：Veneer Case
• Specification：2800*1650*1650mm
• Trademark：MORN LIFT
• Origin：Shandong, China
• HS Code：842890
• Production Capacity：30

Basic Info.

Model NO. VPL0.25-1.5 Feature Aluminum Alloy Certification CE Transport Package Veneer Case Specification 2800*1650*1650mm Trademark MORN LIFT Origin Shandong, China HS Code 842890 Production Capacity 30

Product Description

Basic Information

1. Loading capacity:250kg
2. Platform size: 1430*1000mm

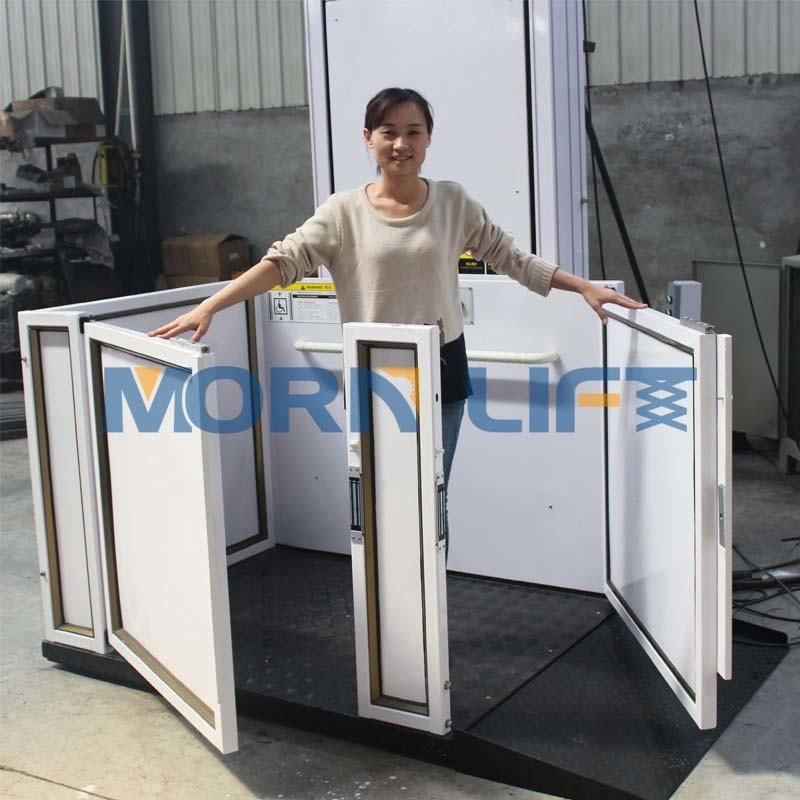

3. In & Out diraction:  180 degree / 90 degree / one side open

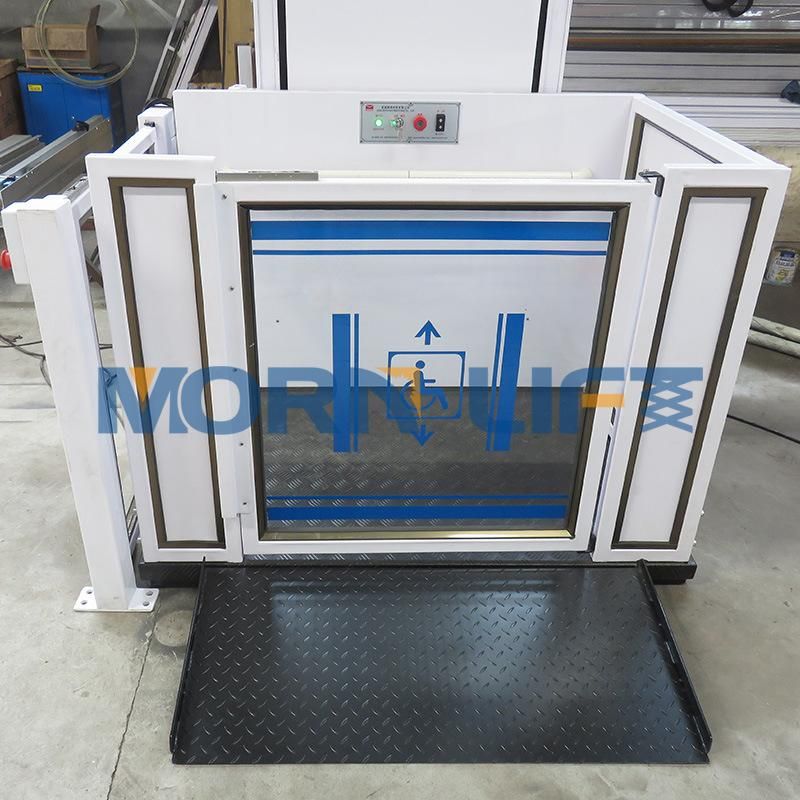

4. Ramp: Fixed ramp / Automatic ramp
5. Three calling and control type: Platform control /  Remote control / Post control

Safety device

1. Safety sensor on the platform bottom
The lift will be stopped at once if it touches any obstacles when going down ,especially to protect the children if he enters accidentally.




2. Interlocking
The lift won't work if the door is open ,it can only work when the door is completely closed.

3. Electromagnetic lock
The door won't be opened during the lift work.

4. Mechanical platform lock
It is a double safe design to protect people on platform

5. Emergency stop on platform
The lift can be stopped immediately in case of any emergency when up or down.
And three controllers all have emergency stop button.

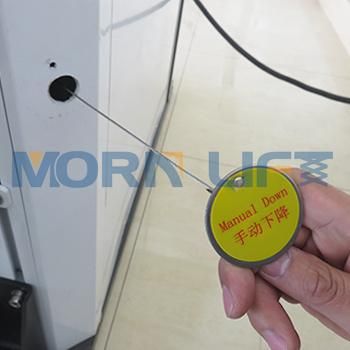

6. Emergency down button
Platform can be lowered by manual down button in case of power failure.




7.  Automatic ramp with protection function
It can turn up to max 75⁰ when lifting and protect the wheelchair from going out.And also used for ramp wheelchair goes in and out.

8. Skid-proof platform
It protects the people or wheelchairs from slipping and falling.

Installation
Easier for installation and transportation
The body can be cut into two sections, there are iron plates in the tracks, just use screws to link the two sections instead of welding.
Firstly it is easier for installation(indoor use),On the other hand, it can be easily put into a wooden box for transportation, can save some cost for you.
Easier for fixation
The connect beam that used to connect the lift and wall can be moved on
the track, so it can be fixed on the wall at any height you want.
Lifting hook
The lift can be lifted up by this hook, it can also be taken down if you do not need it.
Aluminum alloy structure with powder coating
The lift used T6030 aluminum alloy, it has good mechanical intensity and corrosion resistance and

weather resistance, which ensure the lift 15years structural warranty at least.
Hardness > 2h, it is not easy to be scratched

We make it white powder coating, it looks more beautiful, it can match with all kinds of buildings.

Operation pruducts
Enclosed wheelchair lift (optional)
Home cabin wheelchair lift (optional)
