High Lift Screw Jack
Foshan Mexytech Co., Ltd.- Type：Floor Jack
- Structure：Screw Jack
- Capacity (Load)：1500-2000kg,Set
- Max Height：40mm--1200mm
- Environmental Conditions：-30 ºC ~130 ºC
- Content：Head , Extender , Screw Ring,Base
Base Info
- Model NO.：MB-PFD
- Transport Package：Stong Carton
- Trademark：MexyBase
- Origin：China
- Production Capacity：1200 Set,Sets Per Day
Description
CodeHeight(mm) Working loading(KG) Max loading(KG) Entire Half Quarter Entire Half Quarter MT-DPA0 92-149 2235 1840 935 4537 3463 1988 MT-DPA1 188-299 1850 1500 825 3728 3105 1800 MT-DPA2 274-453 1740 1475 790 3660 2963 1687 MT-DPA3 360-607 1675 1405 785 3609 2816 1583 MT-DPA4 446-763 1600 1380 760 3532 2777 1580 MT-DPA5 532-919 1520 1225 750 3463 2705 1566 MT-DPA6 618-1075 1465 1110 725 3308 2643 1534 MT-DPA7 704-1231 1390 1055 700 3300 2598 1533 MT-DPA8 790-1387 1310 985 680 3107 2537 1503

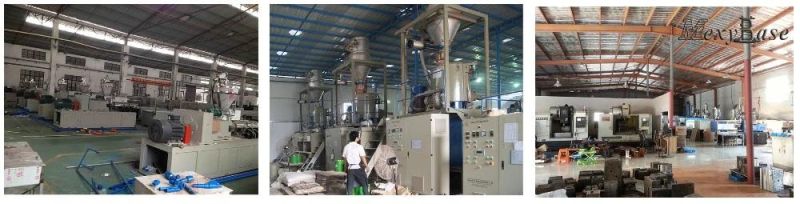

4.Company Information
