• Model NO.：JKD
• Running Mode：Stationary
• Feature：Antiseptic
• Certification：CE, ISO 9001
• Standard：Nonstandard
• Application：Cranes,Construction Site,Boat,Vessel,Shipyard,etc
• Warranty：12 Months
• Motor Type：Yzr225m-6
• Voltage：380V 50Hz 3p or Customized
• Color：Customized
• Transport Package：Wooden Package & Container
• Specification：1900*1620*985mm
• Trademark：NYBON
• Origin：Henan Province, China
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. JKD Running Mode Stationary Feature Antiseptic Certification CE, ISO 9001 Standard Nonstandard Application Cranes,Construction Site,Boat/Vessel,Shipyard,etc Warranty 12 Months Motor Type Yzr225m-6 Voltage 380V 50Hz 3p or Customized Color Customized Transport Package Wooden Package & Container Specification 1900*1620*985mm Trademark NYBON Origin Henan Province, China Production Capacity 100 Sets Per Month

Product Description

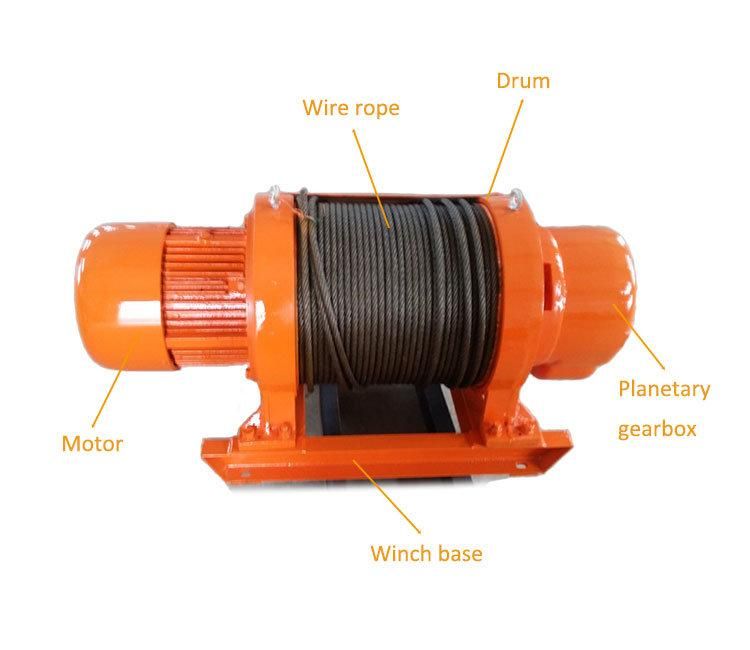

JKD Series High speed Electric Winch 1.5 tonJKD Series High speed Electric Winch 1.5 ton ,which is drum winding wire rope, is one kinds of small lifting equipment.
It can be vertical, horizontal and inclined lifting or pulling heavy objects.Not only be used alone but be used for crane
manufacturing as main hoisting mechanism .Reasonable designed structure ,easy operation and excellent working
performance .Electric winch be widely used in construction site, mine, factory, port pier, crane manufacturing ,etc material
ifting or traction.

Basic Parameters	Rated Load	Average Speed of Rope	Capacity of Rope	Rope Diameter	Motor Power	Dimension	Total Weight
Model	KN	m/min	m	mm	KW	mm	kg
JK0.75D	7.5	30	150	9.3	3	900*340*400	165
JK1.25D	12.5	46	200	11	7.5	1140*400*450	315
JK1.60D	16	28	250	12.5	7.5	1200*400*480	350
JK2.0D	20	36	250	13	13	1400*470*548	510

1. Q: What's your MOQ?

  A: 1 Set;

2. Q: What's your package?

  A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

3. Q: What's your delivery period?

  A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements
and actual period;

4. Q: What's your warranty period?

  A: 12 months from winches accepted;

5. Q: Do you have engineer oversea installation service?

   A: Yes; We have;

6. Q: What kinds of products do you have?

    A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist;
Screw Hoist; Radial/Flat Gate Hoist; Steel Gate; etc.

7. Q: Could we buy spare parts in local once they are out of work?

    A: Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world.
But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.

8. Q: Do you provide lift tools?

    A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook,
lock catch, wire rope, fiber rope, etc.

9. Q: Could your winches drag inclined?

    A: Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
